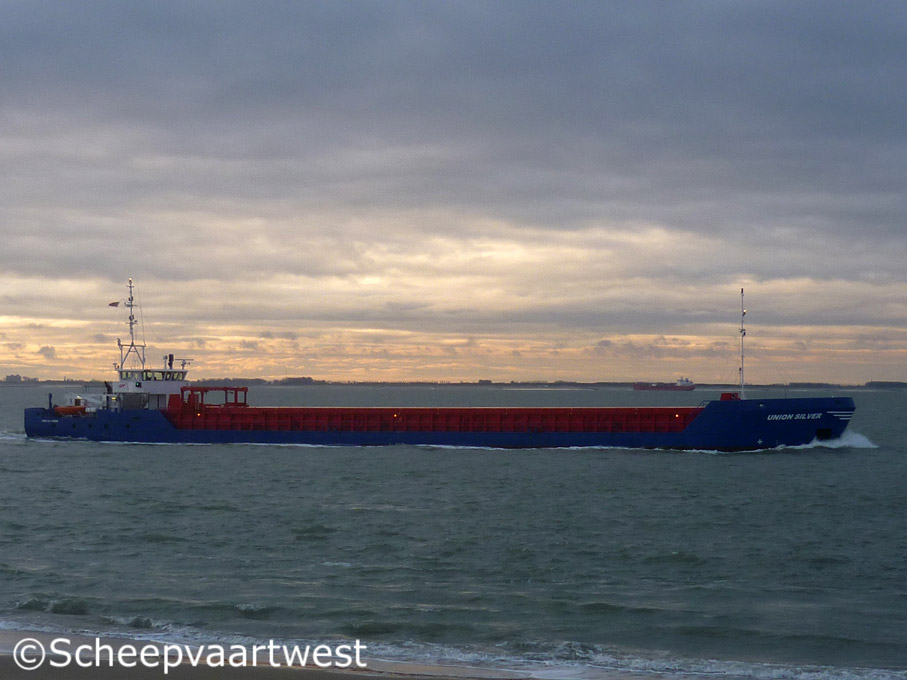

Union Silver 01
Westerschelde 14 December 2011

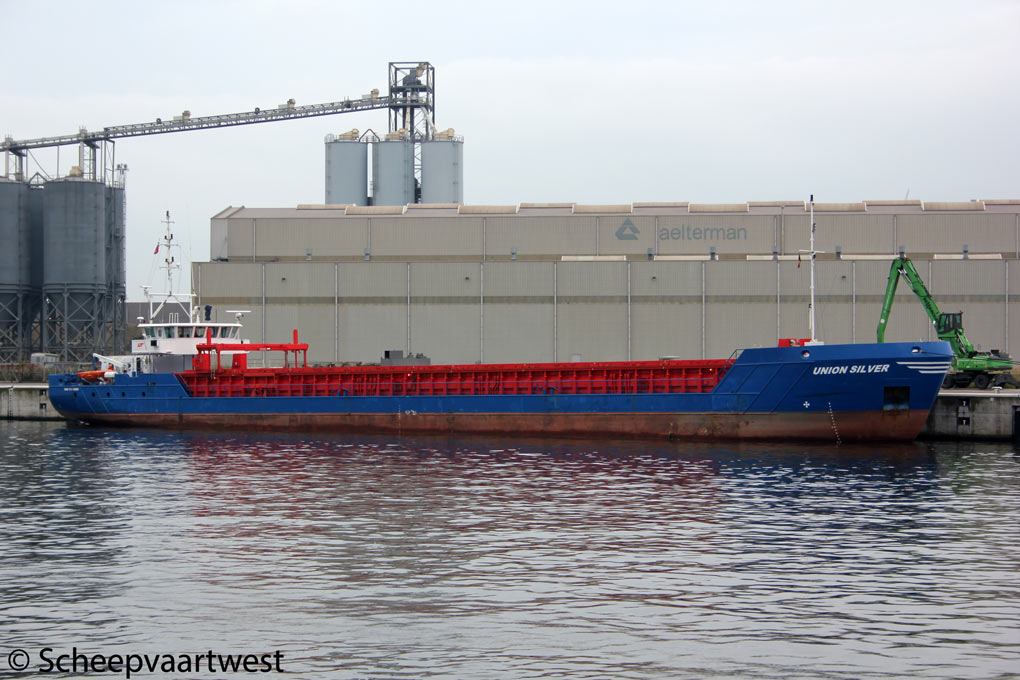

Union Silver 06
Gent, Belgium 20/10/12



Name

UNION SILVER

Type

General cargo ship - heavy cargo - Container ship

IMO-number

9374909

Call sign

2DVZ4

Flag

Isle of Man - United Kingdom

Port of registry

Douglas

GT

1.767 t

DWT

2.570 t

DWCC

Summer abt: 2.450 m

Winter abt: 2.367 m

NT

927 t

Length

87,50 m overall

84,30 m between perpendiculars

Breadth

11,30 m

Draught

4,15 m

Air draft

Loaded: 5.30 m

Ballast: 6.55 m

Freeboard

1.262 mm

Speed

10,5 knots

Built

2011

Date of completion

14.01.2011

Builder casco

Ceske Lodenice
Usti Nad Labem
Czech Republic

Builder completion

Damen Shipyards Bergum
Bergum
The Netherlands

Yard number: 9377

Hull material

Steel

Watertight compartments

5

Continuous decks

1

Main engine

1x ABC - 4 stroke 6 cylinder diesel engine - 1.104 kW / 1.500 hp at 800 rpm

Built: 31.08.2010

Builder: Anglo Belgian Corporation N.V.
Wiedauwkaai 43
9000 Gent
Belgium

Propelling system

1x Screw propeller solid - at 260 rpm

Generators

1x Diesel generatorset 71 kVA - 57 kW
1x Sisu diesel generatorset 134 kVA - 107 kW
1x Sisu diesel generatorset 134 kVA - 107 kW - 158 hp

Bow thruster

257 kW

Holds

1

56,70 x 9,30 x 6,47 m

Hatches

1

56,70 x 9,30 m

Hatch type

Steel pontoon hatches with gantry crane

Maximum loading

Tank top: 13,20 t/m²

Hatch covers: 1,60 t/m²

Ballast capacity

1.300 m³

Fuel capacity

135,9 m³

Manager

Union Transport Group plc
Imperial House
21/25 North Street
Bromley, Kent, BR1 1SJ
United Kingdom

Owner

Union Transport Group Plc
Bromley
United Kingdom
