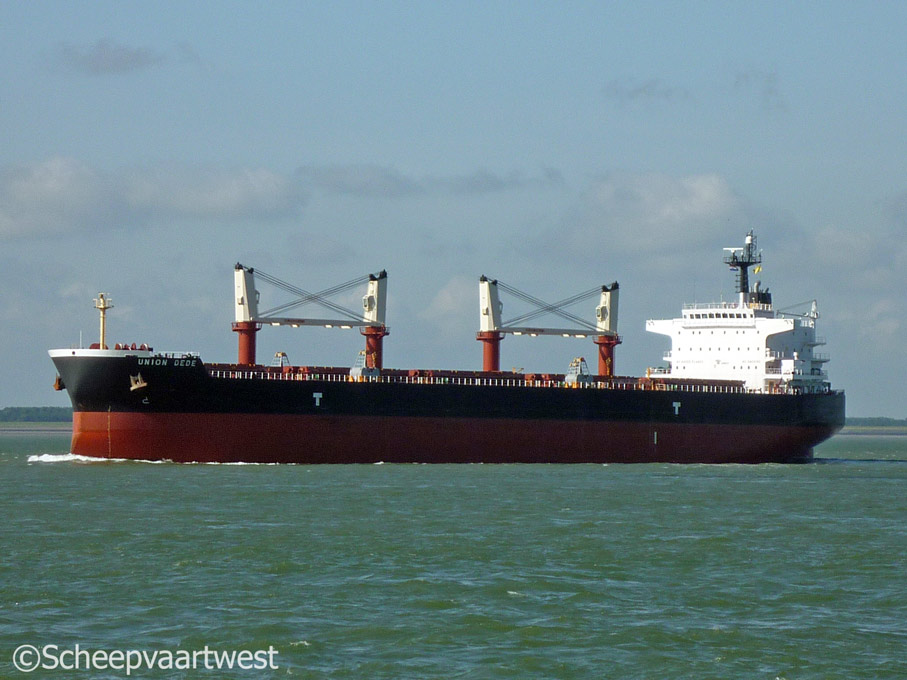

Union Dede 03
Westerschelde 07 July 2012



Name

UNION DEDE

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9456537

Call sign

3FTY2

Flag

Republic of Panama

Port of registry

Panama City

GT

31.540 t registered

DWT

55.733 t

NT

18.765 t registered

Length

190,00 m overall

Breadth

33,00 m

Draught

12,73 m

Moulded L x B x D

185,00 x 32,26 x 18,10 m

Registered L x B x D

186,48 x 32,26 x 18,10 m

Freeboard

Summer: 5.426 mm

Depth

18,10 m moulded

Speed

Service: 14,0 knots

Built

2011

Keel laid

05.09.2010

Launch date

12.11.2010

Date of completion

08.02.2011

Builder

IHI Marine United Inc., Yokohama Shipyard
Japan

Yard number

3271

Hull material

Steel

Main engine

1x Wärtsilä 6RT-FLEX 50 - 2 stroke single acting 6 cylinder 500 x 2.050 mm diesel engine - 8.890 kW at 116,0 rpm

Manufacturer: Diesel United, Ltd.

Propellers

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boilers

1x Auxiliary vertical boiler - 6,9 bar

Evaporation: 2,49 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Diesel generatorsets 1.786 kVA

Number of cargo holds

5

Cargo capacity

Bales: 67,062 m³

Grain: 72,062 m³

Tank capacities

Fuel oil: 2.478 m³

Fresh water: 322 m³

Water ballast: 15.679 m³

Anchor equipment

4x Cranes - SWL 35,0 t each

Grabs: 4 x 12,0 m³

Manager

Union Commercial Incorporated

Ktirio "Enosis"
43 Kyprou & Ag. Tryfonos St.
Kifissia, 14562
Greece

Registered owner

Barfly Shipping Inc.
c/o Union Commercial Inc
43, Kyprou Street & Agiou Tryf, Street
Kifisia, 145 62
Athens
Greece
