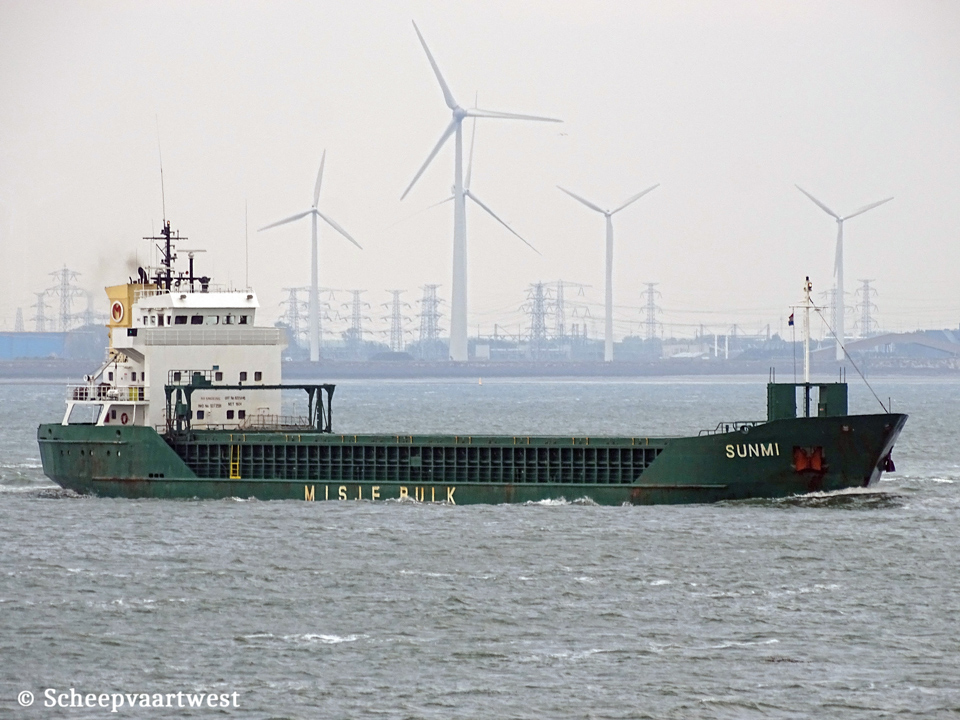

| Westerschelde 29 May 2019 |
 |
 |
 |
||

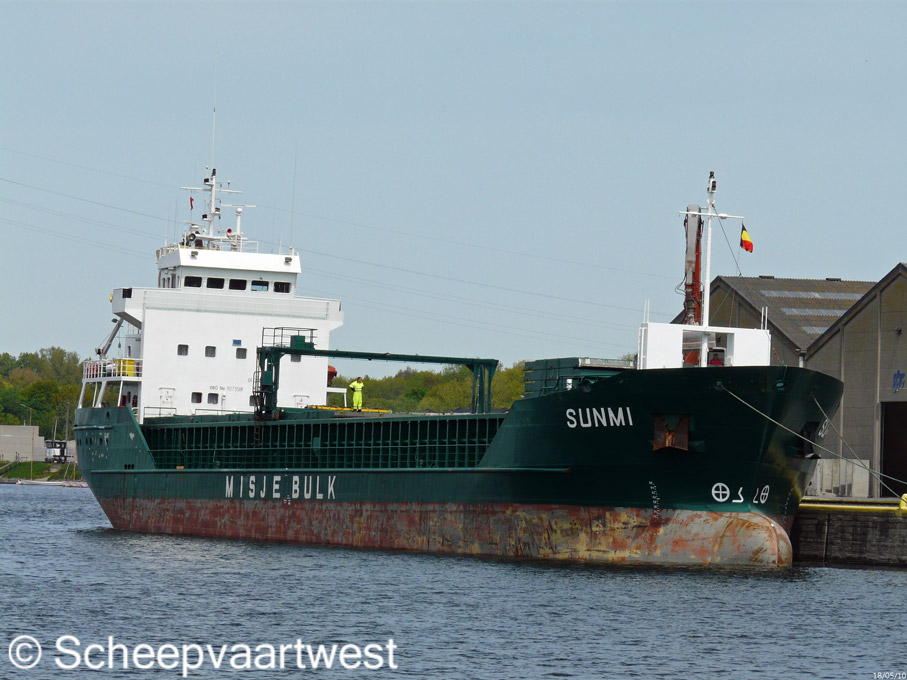

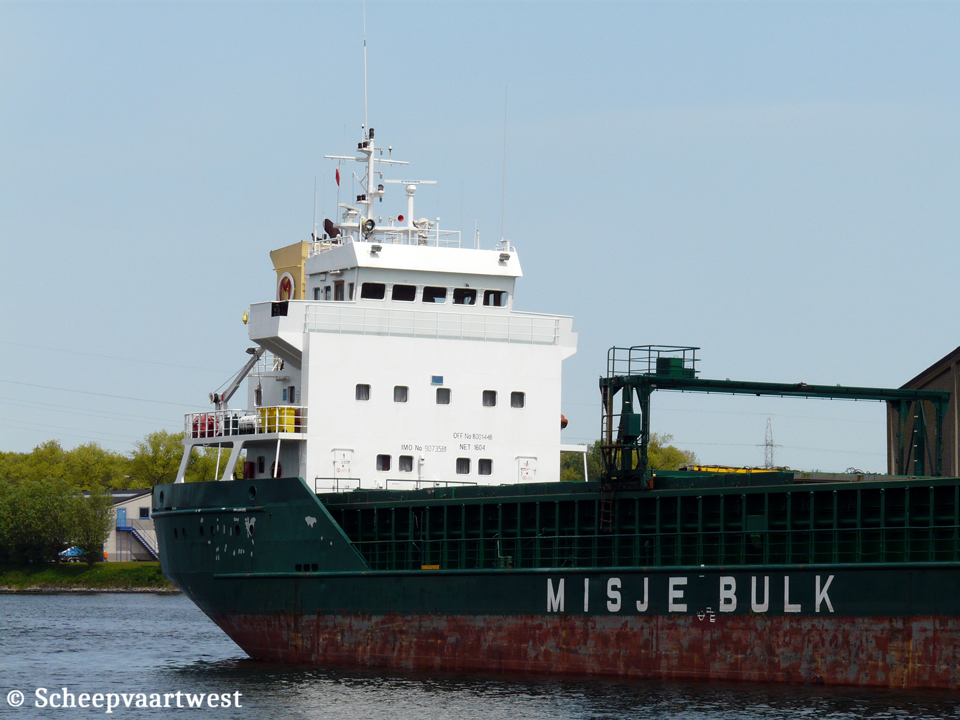

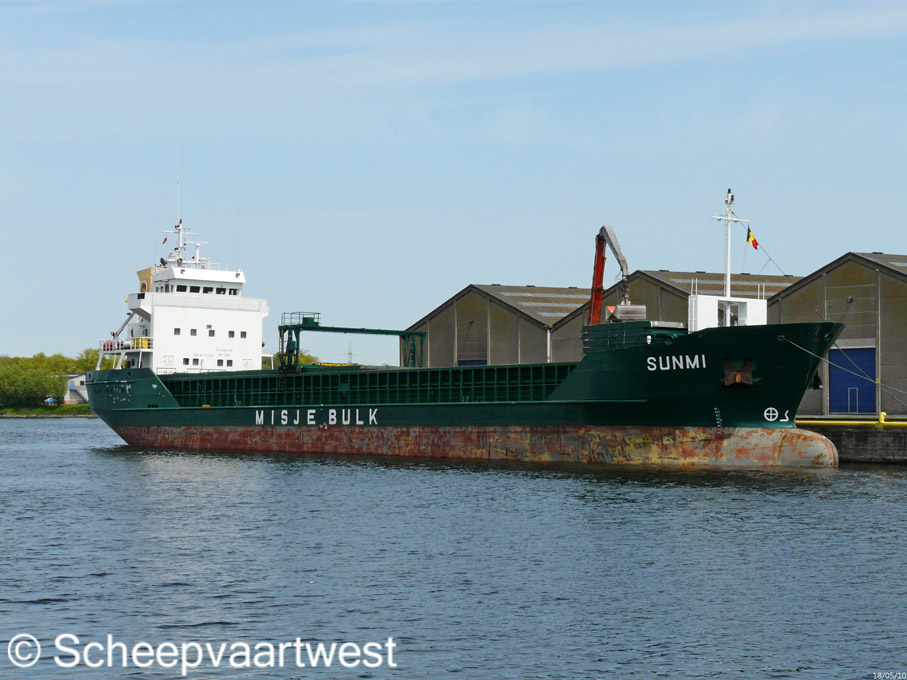

| Brugge 18/05/10 | Brugge 18/05/10 | Brugge 18/05/10 |
|
Name |
SUNMI |
|
Previous names |
1993 Swift 2000 Nesserland 2003 Apollo Fox 2006 Fehn Sun 2007 Sunmi |
|
Type |
General cargo ship - Strengthened for heavy cargo |
|
IMO-number |
9073581 |
|
Call sign |
C6WS3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
2.825 t |
|
DWT |
4.148 t |
|
DWCC |
Summer: 4.030 t Winter: 3.900 t |
|
NT |
1.604 t |
|
Displacement |
5.436 t |
|
Number of 20ft containers |
154 |
|
Length |
90,46 m overall 84,37 m between perpendiculars 84,33 m registered |
|
Breadth |
13,44 m extreme 13,20 m registered |
|
Draught |
Summer: 5,60 m Winter: 5,47 m |
|
Keel to mast end |
27,50 m |
|
Air draft |
27,50 m ballast |
|
Depth |
7,10 m moulded |
|
Speed |
10,0 knots loaded 11,0 knots ballast |
|
Built |
1993 |
|
Keel laid |
01/03/1993 |
|
Launch date |
06/1993 |
|
Date of completion |
12/1993 |
|
Builder |
Bodewes Scheepswerf "Volharding" Foxhol B.V. Scheepswervenweg 14 9607 PX Hoogezand The Netherlands |
|
Yard number |
569 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
4 |
|
Movable bulkheads |
1x Portable bulkhead may be placed in 6 positions for cargo separation |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 6SW280 - 4 stroke single acting 6 cylinder 280 x 300 mm combustion engine 1.840 kW / 2.502 hp at 900 rpm Build: 1993 Manufacturer: Stork-Werkspoor Diesel B.V. Assendorperlure 5 Zwolle The Netherlands |
|
Propeller |
1x Controllable pitch propeller 'BERG 800 HX' - aft at 181 rpm |
|
Electric installations |
1x Plant 380/220 V - 170 kVA 1x Plant 380 V - 292 kVA 1x Plant 380 V - 77 kVA |
|
Shaft generator |
1x 292 kVA |
|
Generator |
1x Main diesel generatorset 170 kVA |
|
Emergency generator |
1x Diesel generatorset 77 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster - 240 kW forward |
|
Hold |
1x Box shaped 64,60 x 10,58 x 8,51 m |
|
Hold capacity |
Grain & Bale: 204.762 ft ³ /5.799 m³ |
|
Hatch |
1 60,40 x 10,60 m |
|
Hatch type |
Coops en Nieborg pontoon system |
|
Max. permitted loads |
Maximum load on tanktop: 15,0 t/m² Maximum load on hatch covers: 1,6 t/m² |
|
Tank capacities |
MGO: 232 m³ Water ballast: 1.805,04 m³ Fresh water: 51 m³ Lub oil: 14,44 m³ |
|
Anchor equipment |
3x Anchors weight each 2.100 kg Chain length: 440,00 m Diameter: 36 mm |
|
Crew size |
10 |
|
Crew |
6 |
|
Commerical manager |
Misje Rederi AS C Sundts gate 39 5004 Bergen Norway |
|
Operator |
Misje Bulk |
|
Registered owner |
Misje Bulk AS Care of Misje Rederi AS C Sundts gate 39 5004 Bergen Norway |
|
Latest data adjustment |
10 August 2021 |
