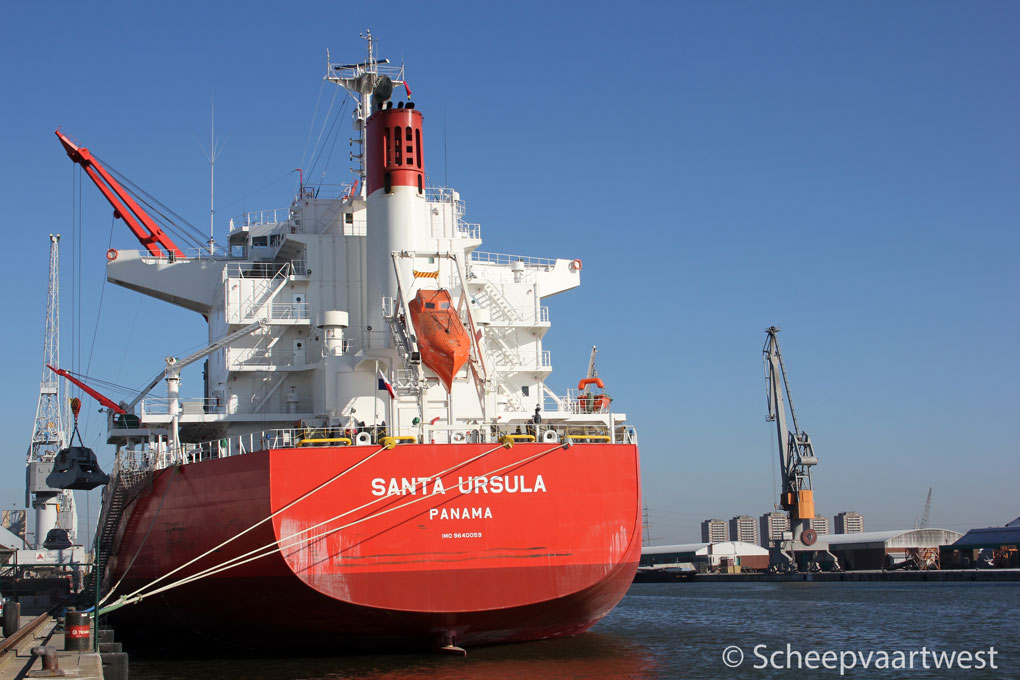

Santa Ursula 01
Antwerpen 04 March 2013



Name

SANTA URSULA

Type

Bulk carrier - Strengthened for heavy cargo

IMO-number

9640059

Call sign

3FDB8

Flag

Republic of Panama

Port of registry

Panama City

GT

35.794 t

DWT

61.453 t

NT

20.209 t

Length

199,98 m overall

Breadth

32,24 m

Draught

13,01 m full laden

Moulded L x B x D

195,00 x 32,24 x 18,60 m

Registered L x B x D

195,39 x 32,24 x 18,60 m

Freeboard

Summer: 5.640 mm

Depth

18,60 m moulded

Keel laid

30.11.2010

Launch date

28.04.2012

Date of completion

19.06.2012

Builder

Imabari Shipbuilding Co., Ltd.
Japan

Yard number

745

Hull material

Steel

Main engine

1x 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 8.450 kW at 108,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Propellers

1

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boilers

1x Auxiliary vertical boiler - 8,0 bar

Evaporation: 2,10 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Main diesel generatorsets each 1.965 kVA

Number of holds

5

Cargo capacity

Grain: 77.674 m³

Tank capacities

Fuel oil: 2.565 m³

Fresh water: 669 m³

Water ballast: 18.074 m³

Cargo gear

4x Cranes - SWL 30,0 t each

Manager

Fleet Ship Management Pte., Ltd.

Registered owner

Anne Navigation S.A.

Last update

29.03.2013
