Antwerpen 13 April 2016 |
 |
 |
 |
 |
 |
 |
|||||

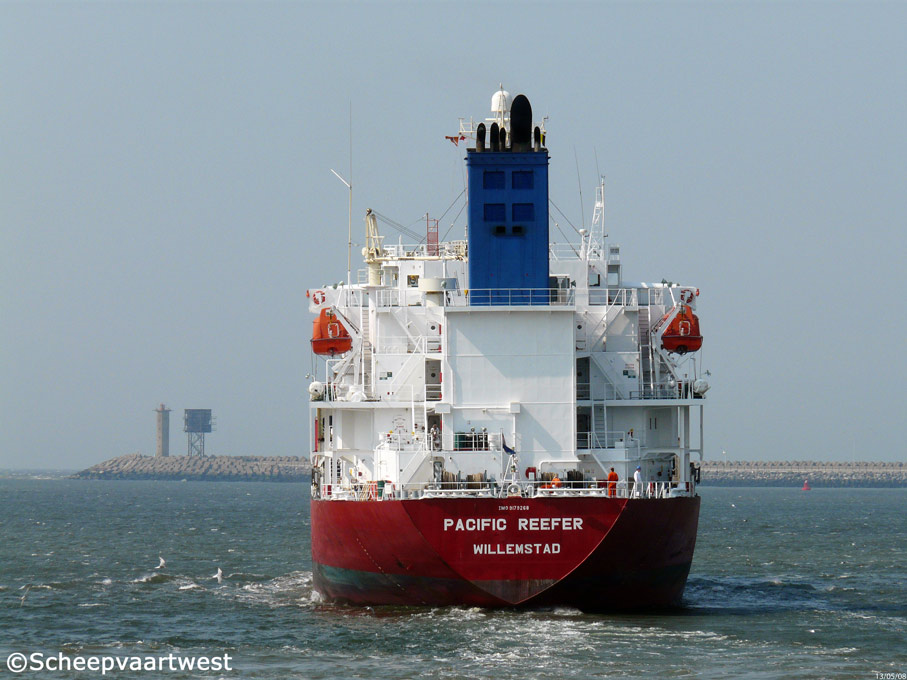

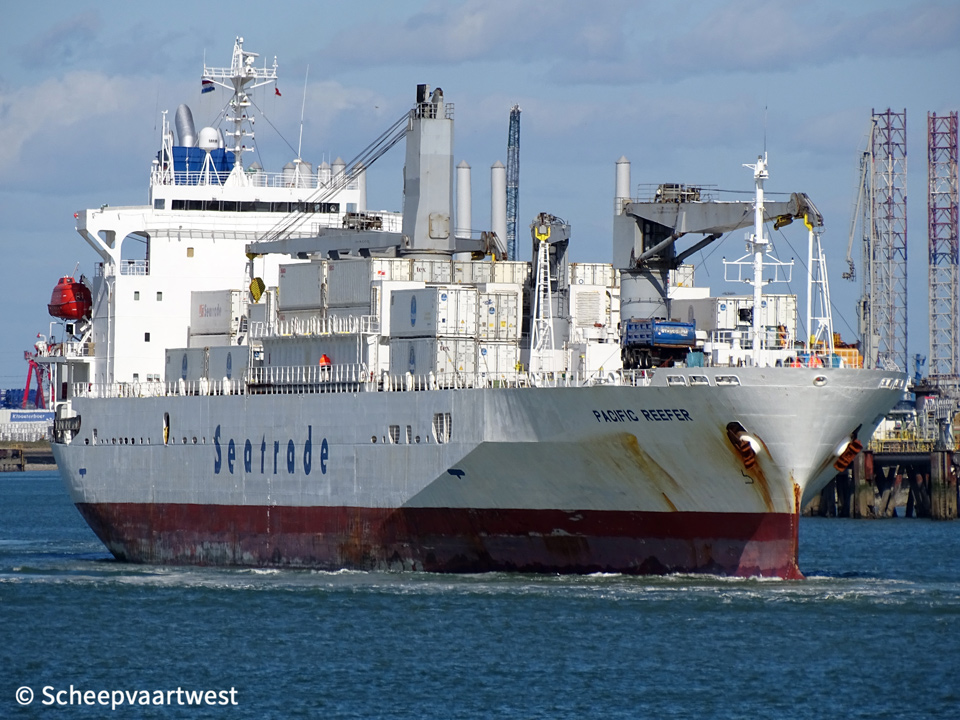

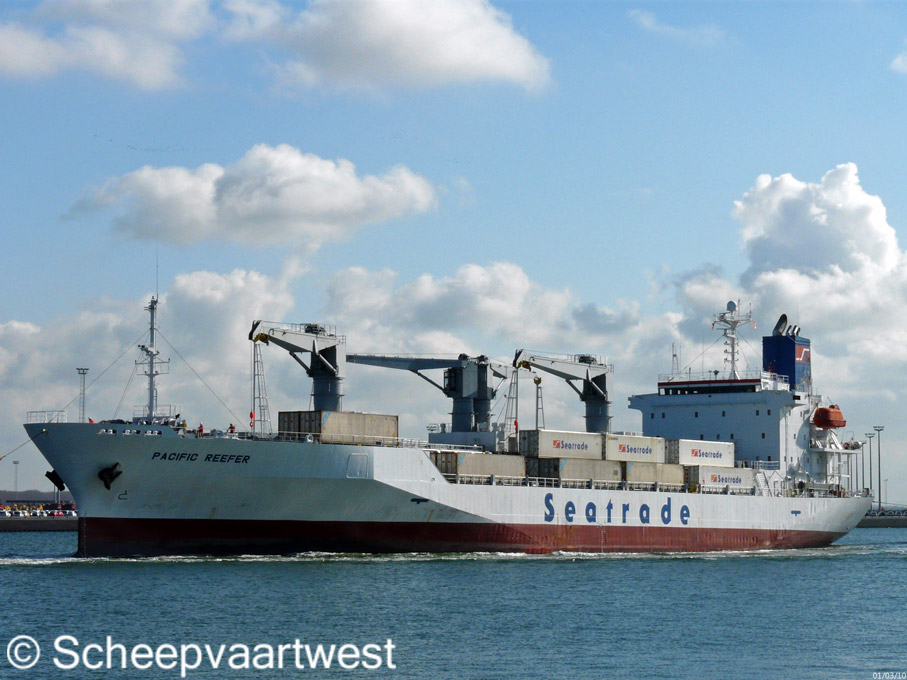

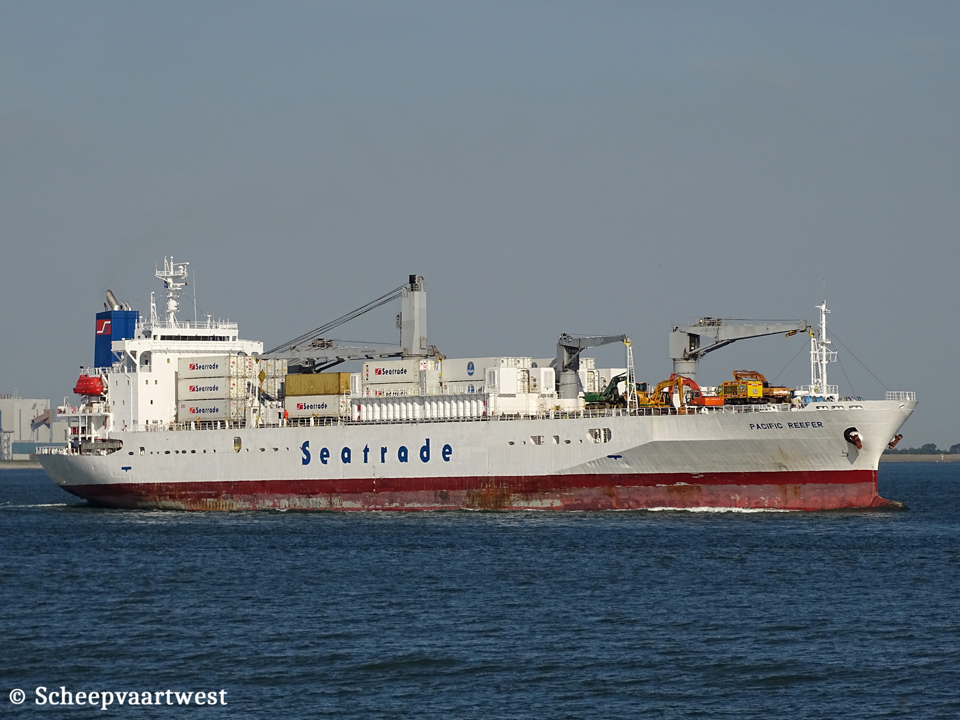

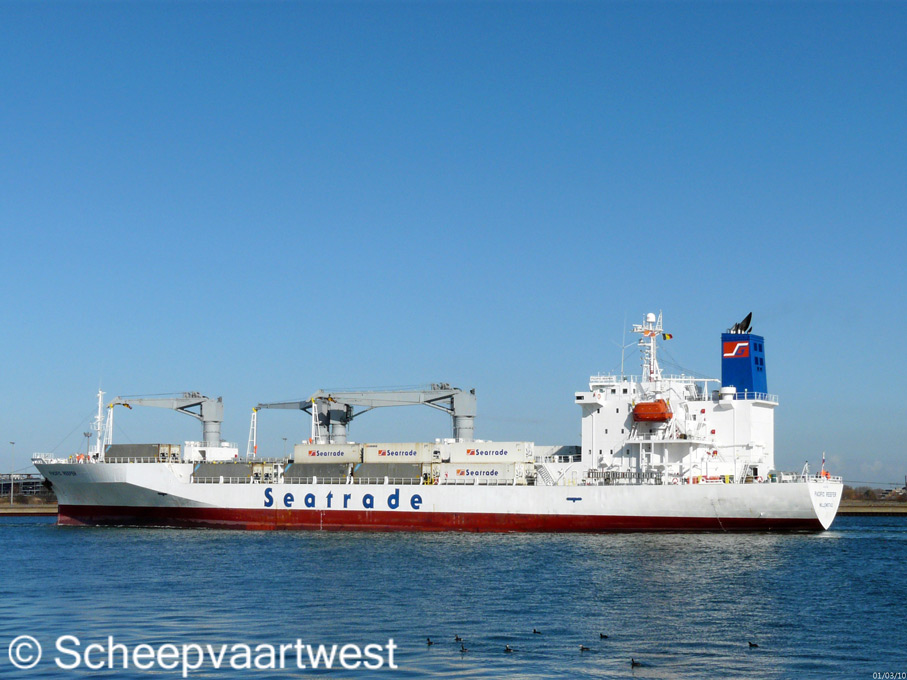

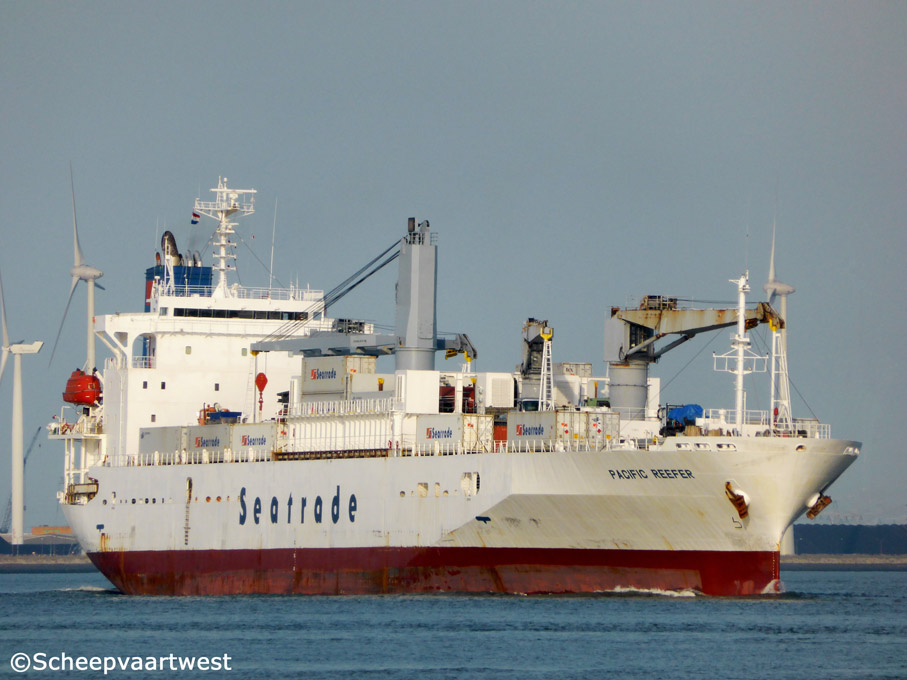

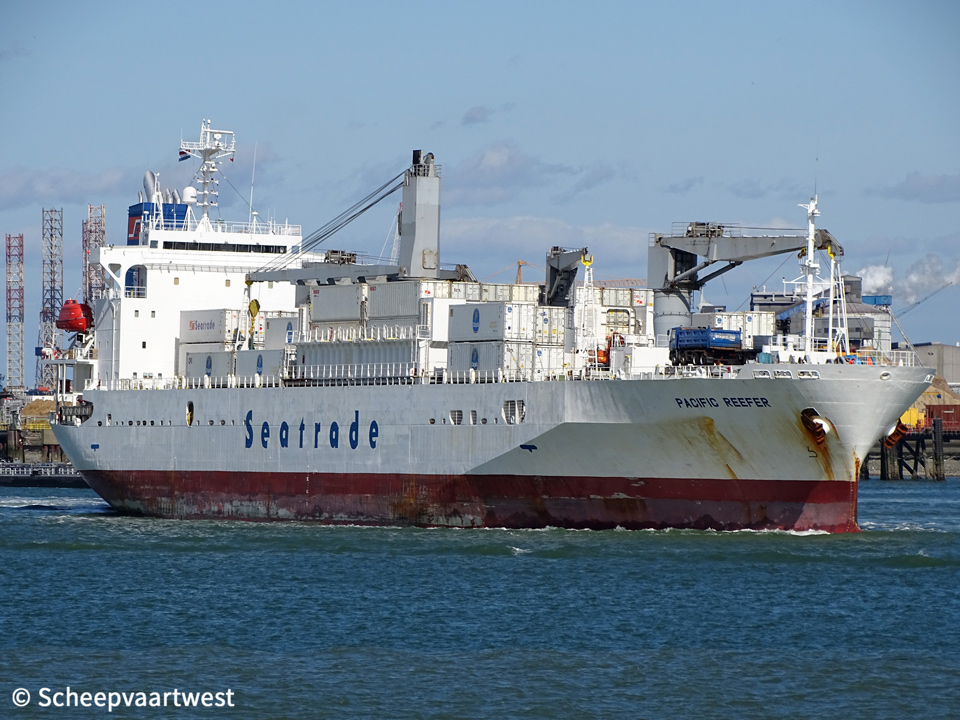

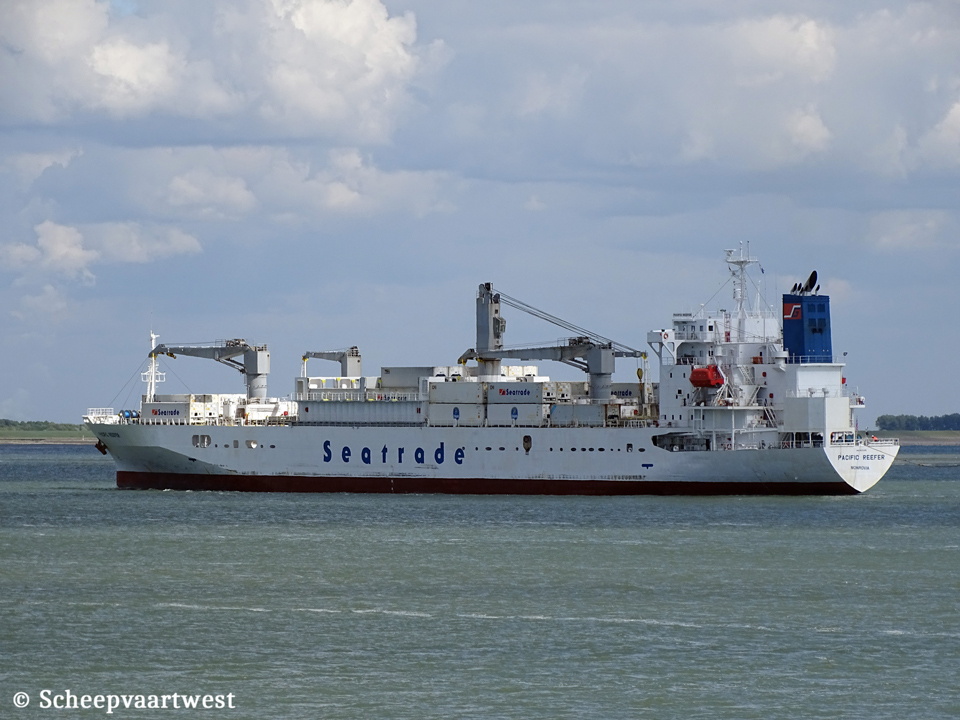

| Zeebrugge 01/03/10 | Zeebrugge 01/03/2010 | Westerschelde 17/05/14 | Vlissingen 03/04/20 | Vlissingen 03/04/20 | Westerschelde 12/05/20 |
 |
 |
 |
 |
|||
| Westerschelde 24/06/20 | Zeebrugge 13/05/08 | Zeebrugge 13/05/08 | Zeebrugge 13/05/08 |
|
Name |
PACIFIC REEFER |
|
Type |
Frozen Cargo Refrigerated Cargo Ship - Equipped for carriage of containers |
|
IMO-number |
9179268 |
|
Call sign |
D5FE3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
Previous flag |
01/1999 - 03/2008 Republic of panama, Panama City - Call sing: 3FZN8 03/2008 - 10/2010 Netherlands Antilles, Willemstad - Call sing: PJVM 10/2010 - 10/2013 Curaçao, Willemstad- Call sing: PJVM |
|
GT |
13.055 t |
|
DWT |
Summer: 12.625 t |
|
NT |
7.624 t Panama: 12.166 t Suez: 13.035,7 t |
|
Container capacity |
226 |
|
Reefer plugs |
200 |
|
Length |
175,72 m overall |
|
Breadth |
22,60 m extreme |
|
Draught |
Summer: 9,72 m |
|
Freeboard |
3.580 mm |
|
Depth |
13,30 m |
|
Speed |
Max.: 21,0 knots Service: 18,3 knots |
|
Built |
1999 02/2011 Lengthened: COSCO Shanghai Shipyard, Shanghai - China with 30,00 m |
|
Date of completed |
01/1999 |
|
Builder |
Shin Kochi Heavy Industries Kochi Japan |
|
Yard number |
7107 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads watertight |
7 |
|
Main engine |
1x Mitsubishi 8UEC50LSII - 2 stroke single acting 8 cylinder 500 x 1.950 mm combustion engine 11.004 kW / 14.951 hp at 124 rpm Built: 1998 Builder: Mitsubishi Heavy Industries, Ltd. Kobe Shipyard Kobe Japan |
|
Propelling system |
1x Screw propeller solid |
|
Boiler |
1x CHM Tortoise composite auxiliary boiler (oil fired / exhaust gas) 273,00 m² - 7,0 bar |
|
Diesel generators |
3x Diesel generatorsets each 1.250 kVA - 1.000 kW - 1.359 hp / 450 Volt 60 Hz |
|
Cargo capacity |
16.996 m³ |
|
Floorspace |
6.870,18 m² |
|
Holds/Hatches/Compartments |
4/4/19 |
|
Temperature zones |
8 |
|
Reefer compartment capacity |
Hold 1: 92.957 ft³ / 1.004 m² Hold 2: 157.632 ft³ / 1.818 m² Hold 2: 179.262 ft³ / 2.093 m² Hold 4: 167.074 ft³ / 1.888 m² Total: 596.925 ft³ / 6.803 m² |
|
Pallets |
8.554 |
|
Ventilation / Air changes |
Vertical / 90 |
|
Lifting equipment |
1x Crane - SWL 2,5 t |
|
Tank capacity |
IFO : 1.135 t Ballast: 1.102 m³ Bunker: 1.356 t Fresh water: 219 m³ Fuel oil: 1.474 m³ |
|
Cargo gear |
1x Crane - SWL 40,0 t 1x Crane - SWL 8,0 t 2x Cranes - SWL 36,0 t |
|
Crew |
21 |
|
Commercial manager |
Seatrade Groningen BV Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
ISM manager |
Seatrade Shipmanagement Group Leonard Springerlaan 17 Groningen The Netherlands |
|
Previous manager |
1999 - 2008 Fukujin Kisen Co. Ltd., Imabari - Japan |
|
Operator |
Seatrade |
|
Registered owner |
Pacific Reefer Shipping Co., NV Care of Seatrade Groningen BV Leonard Springerlaan 17 9727 KB Groningen The Netherlands |
|
Previous owner |
1999 - 03/2008 F.J. Lines Inc. - Republic of Panama |
|
Latest data adjustment |
22 November 2021 |
