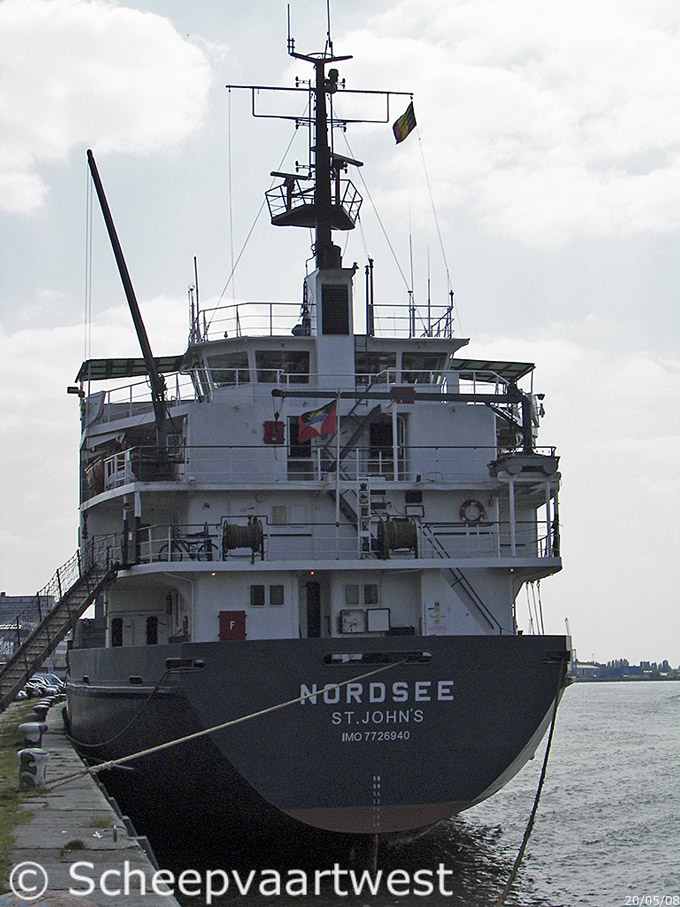

Nordsee 01
Antwerpen 20 May 2008



Name

NORDSEE

Previous name

1978 - 1996 Nordsee

1996 - 1999 Seaboard Clipper

1999 Nordsee

Type

General Cargo ship - Equipped for carriage of containers

IMO-number

7726940

Call sign

V2NW

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

2.579 t

DWT

2.954 t

NT

1.315 t

Number of 20ft containers

208

Length

88,68 m overall

81,51 m between perpendiculars

82,11 m registered

Breadth

15,46 m overall

Draught

Summer: 4,848 m

Forecastle

9,25 m

Poop

12,45 m

Freeboard

2.050 mm

Depth

6,90 m moulded

Speed

14,0 knots

Built

1978

Keel laid

03.04.1978

Launch Date

30.04.1978

Date of completion

06.1978

Builder

J.J. Sietas KG Schiffswerft GmbH & Co.

Neuenfelder Fährdeich 88
21129 Hamburg
Federal Republic of Germany

Yard number

848

Hull type

Double hull

Double bottom

Main engine

Krupp MAK 8 M 453 AK - 4 stroke single acting 8 cylinder 320 x 420 mm diesel engine - 1.470 kW

Built, 1978

Builder: Krupp MAK Maschinenbau GmbH Kiel - Germany

Number of screws

1x Controllable pitch propeller - aft

Boilers

Steam boiler, oil fired

Year of Manufacture: 1978

Electric installations

1x 380/220 V - 420 kVA

1x 380 V - 280 kVA

Shaft generator

1x 280 kVA

Generators

2x Main diesel generatorsets each 210 kVA

Bow thruster

1x Transveres thruster JASTRAM - 184 kW forward

Compressed air receivers

1x Receiver 500 litres - 30,0 bar

1x Receiver 125 litres - 30,0 bar

Cargo capacity

Grain: 4.338 m³

Bale: 4.153 m³

Tank capacities

Ballast: 1.525 m³

Fuel oil: 392 m³

Manager

Jess U
3 Bollwerkstrasse
Schacht-Audorf
Germany

Registered owner

Jess Schiffahrts
Germany

Renamed

2008 Efstration
