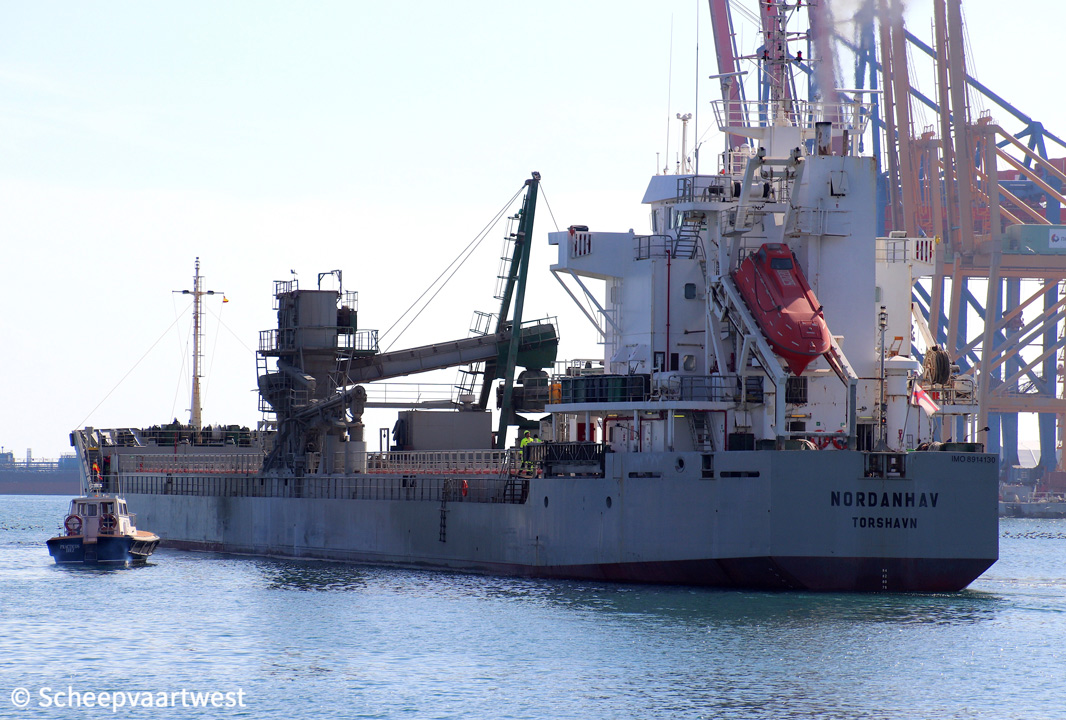

Malaga, Spain 14 March 2020 |
 |
 |
|

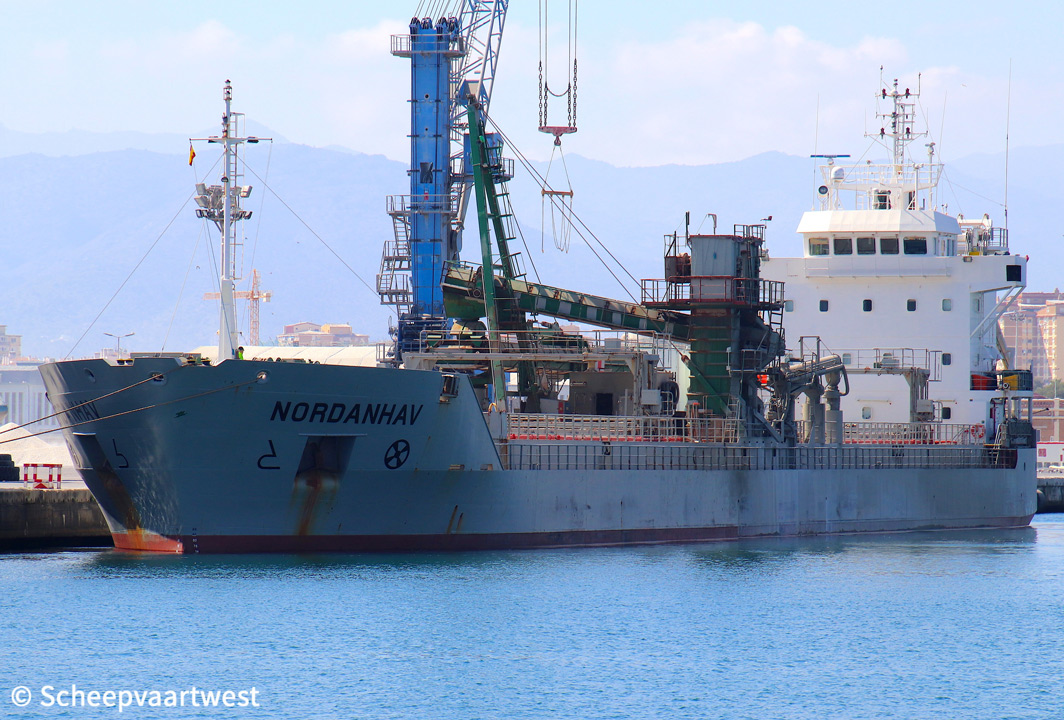

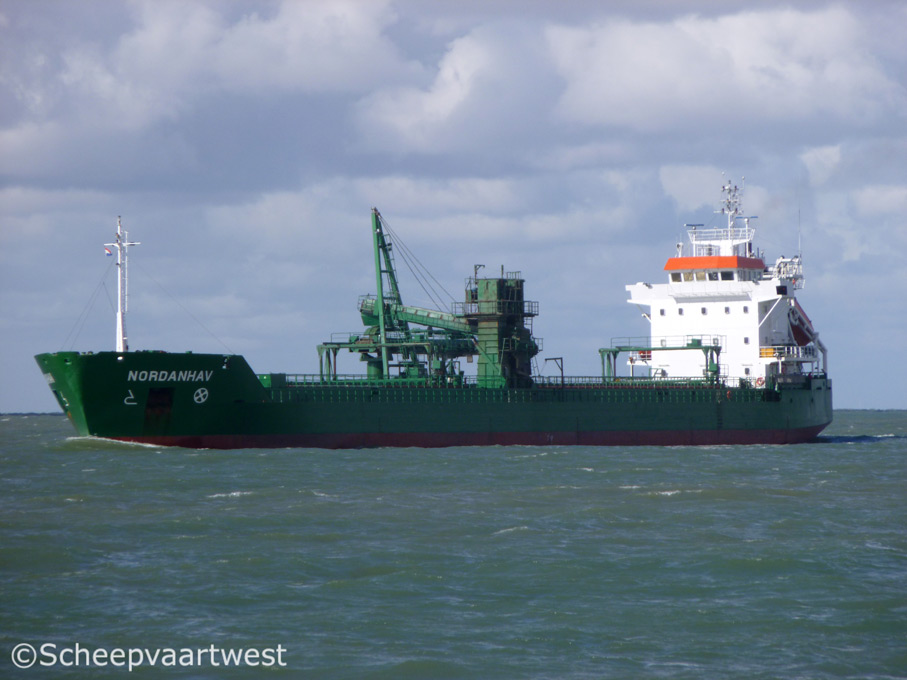

| Malaga, Spain 14/03/20 | Westerschelde 19/09/12 |
|
Name |
NORDANHAV |
|
Previous names |
06/1992 - 1996 Moxnes |
|
Type |
General cargo - Self-unloading bulk carrier |
|
IMO-number |
8914130 |
|
Call sign |
OZ2125 |
|
Flag |
Faeroe Islands |
|
Port of registry |
Torshavn |
|
Previous flag |
1992 - 1996 Norway, Bergen - Call sign: LAOU4 1996 - 2003 The Netherlands, Delfzijl - Call sign: PFRC 2003 - 2011 Sweden, Lidköping - Call sign: SCKO |
|
GT |
5.883 t |
|
DWT |
Summer: 9.891 t Winter: 9.599 t |
|
Length |
126,82 m overall 120,95 m between perpendiculars |
|
Breadth |
15,87 m moulded |
|
Draught |
Summer: 7,69 m Winter: 7,53 m Main ballast: 4,60 m |
|
Air draft |
24,30 m at draft 7,69 m |
|
Depth |
10,55 m moulded |
|
Speed |
Max: 15,1 knots Service: 13,0 knots |
|
Built |
1992 |
|
Launch date |
1992 |
|
Delivery data |
06/1992 |
|
Builder |
Ferus Smit Scheepswerf Hoogezand Netherlands |
|
Yard number |
282 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Number of decks |
1 |
|
Main engine |
1x Wärtsilä 8R32E - 4 stroke single acting 8 cylinder 320 x 350 mm combustion engine Output 3.280 KW / 4.460 bhp Builder: Wärtsilä Diesel Oy, Vaasa/Vasa - Finland |
|
Propellers |
1x Single screw pitch propeller |
|
Shaft generator |
1x MHC 534 D2 - Output 365 kW |
|
Generators |
2x Volvo Penta TMAD 162 diesel generatorsets each 346 kW |
|
Bow thruster |
1x Jastram - Output 295 kW |
|
Number of holds |
2x Dimensions: each 44,00 x 13,40 x 10,20 m |
|
Cargo hold capacity |
Hold 1: 5.923 m³ Hold 2: 5.947 m³ Total: 11.870 m³ / 419.181 ft³ |
|
Number of hatches |
2 Hatch 1 & 2: each 38,80 x 9,00 m |
|
Tank capacities |
Ballast capacity: 3.977 m³ HFO: 286 m³ Gas oil: 62 m³ Fresh water: 49 m³ |
|
Self discharging gear |
Kvaerner Cargo scooper |
|
Manager |
Thun Shipmanagement Östra Hammen 7 531 32 Lidköping Sweden |
|
Previous manager |
1992 - 1966 Jebsen Ship Management (Bergen) A/S, Bergen - Norway 1966 - 2000 Marin Ship Management B.V., Farmsum - The Netherlands 2000 - 2003 Thunship Management Holland, Farmsum - The Netherlands |
|
Operator |
Citadel Shipping 250 05 Helsingborg Sweden |
|
Owner |
Erik Thun A/B Lidköping Sweden |
|
Previous names & owners |
1992 - 1966 Moxnes - Jebsen Thun Beltships Investments Ltd., Bergen - Norway 1996 - 2000 Nordanhav - Erik Thun A/B, Lidköping - Sweden 2000 - 2005 Nordanhav - Thun II B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
14 June 2020 |
