| Brugge 09 August 2009 |
|
Name |

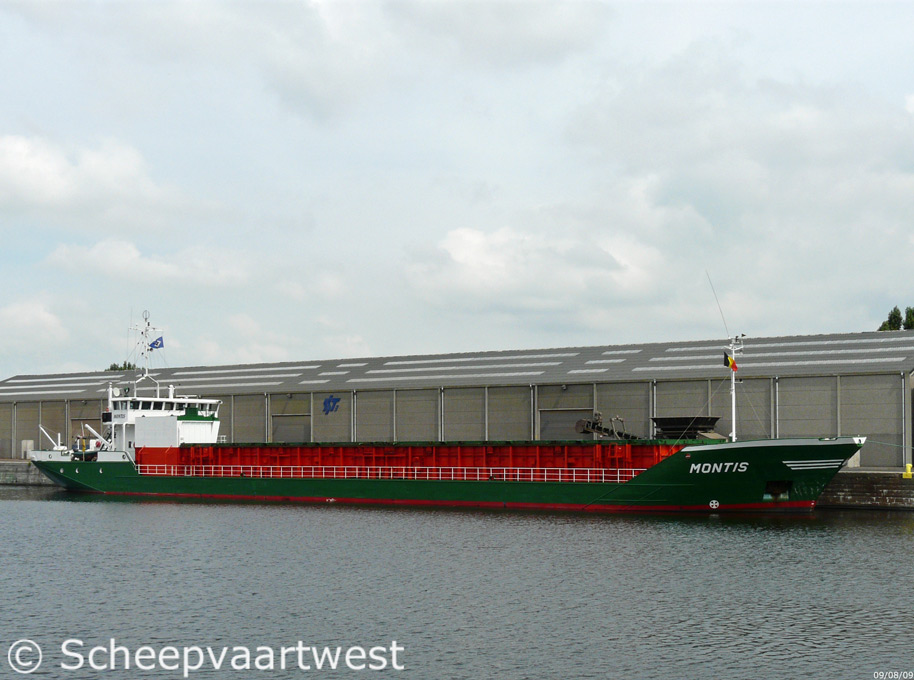

MONTIS |
|
Previous names |
1985 - 16.04.2002 Premiere 16.04.2002 Montis |
|
Type |
General Cargo Ship - Strengthened for heavy cargo, Equipped for carriage of containers |
|
IMO-number |
8504208 |
|
Call sign |
DPCD |
|
Flag |
Germany |
|
Port of registry |
Hamburg |
|
GT |
1.649 t |
|
DWT |
1.631 t |
|
NT |
715 t |
|
Number of 20ft containers |
46 |
|
Length |
82,29 m overall 76,80 m between perpendiculars 77,35 m registered |
|
Breadth |
11,30 m registered |
|
Draught |
Summer: 3,707 m |
|
Forecastle |
6,55 m |
|
Poop |
12,60 m |
|
Depth |
5,40 m moulded |
|
Speed |
10,5 knots |
|
Built |
1985 |
|
Keel laid |
29.08.1984 |
|
Launch date |
30.01.1985 |
|
Date of completion |
03.1985 |
|
Builder |
Schiffswerft Hugo Peters |
|
Yard number |
607 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x TBD 440-6 K - 4 stroke single acting 6 Cylinder 230 x 270 mm diesel engine - 657 kW Year of manufacture: 1984 Manufacturer: Motoren-Werke Mannheim AG |
|
Propeller |
1x Solid propeller 279 rpm - aft |
|
Electric installations |
1x 380/ 220 V - 360 kVA |
|
Generators |
1x Diesel generatorset 210 kVA 1x Diesel generatorset 78 kVA 1x Diesel generatorset 72 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 132 kW, forward |
|
Cargo capacity |
Grain: 3.057 m³ / 108.000 ft³ Bale: 3.043 m³ / 107.500 ft³ |
|
Type of Hatches |
Pontoons |
|
Fuel capacity |
120 m³ |
|
Anchor equipment |
3x Anchors weight each 1.140 kg Chain length: 385,00 m |
|
Lifting device |
1x Goods lift Year of manufacture: 1985 Drive: Hydraulic, direct Height: 10,00 m Bearing Capacity: 7.000 kg Number of accesses: 2 |
|
Crew size |
8 |
|
Crew |
5 |
|
Manager |
Warnecke Schiffahrt Gbr. |
|
Owner |
Luise Warnecke und Uwe Warnecke |
|
Special annotation |
Side loading equipment stbd. |
