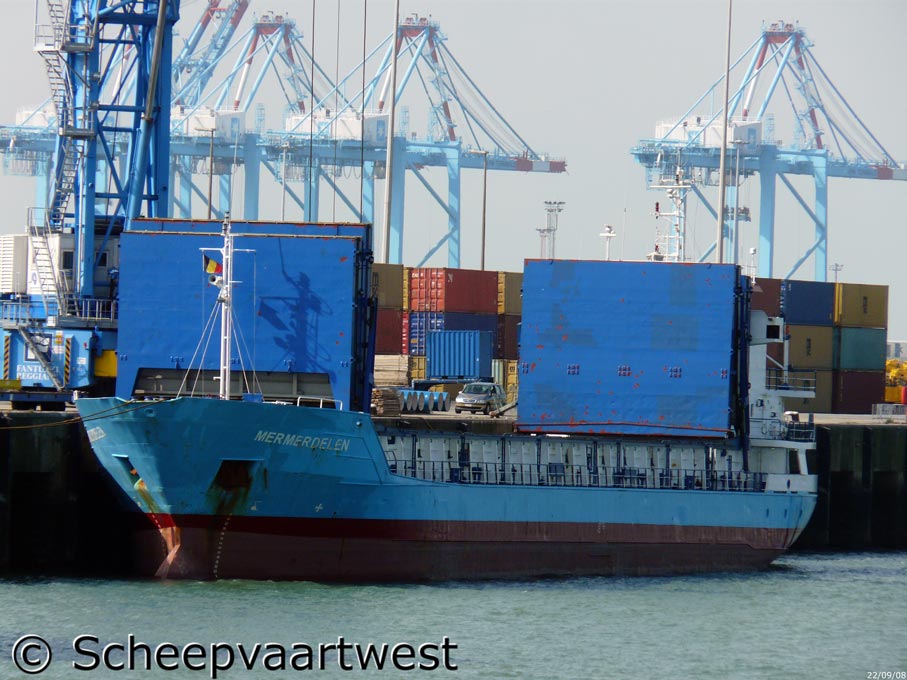

| Zeebrugge 22 September 2008 |
|
Name |
MERMERDELEN |
|
Previous names |
1991 - 12.12.1996 Katharina D 12.12.1996 - 07.02.2000 Emsbroker 07.02.2000 - 01.01.2006 Katharina D |
|
Type |
General cargo ship - Equipped for carriage of containers |
|
IMO-number |
9006265 |
|
Call sign |
V2PE |
|
Flag |
Antigua & Barbuda |
|
Previous flags |
26.07.1991 - Germany |
|
Port of registry |
St. John's |
|
GT |
2.450 t |
|
Summer DWT |
3.640 t |
|
NT |
1.380 t |
|
Number of 20ft containers |
180 |
|
Length |
87,91 m overall 81,00 m between perpendiculars 81,84 m registered |
|
Breadth |
12,81 m overall |
|
Draught |
Summer: 5,468 m |
|
Forecastle |
6,40 m |
|
Freeboard |
1.630 mm |
|
Depth |
7,10 m moulded |
|
Speed |
11,5 knots |
|
Built |
1991 |
|
Keel laid |
03.12.1990 |
|
Launch date |
05.06.1991 |
|
Date of completion |
10.1991 |
|
Builder |
Peene-Werft GmbH |
|
Yard number |
401 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x SBV 8 M 628 - 4 stroke single acting 8 cylinder diesel engine - 1.500 kW Built: 1991 Builder: Deutz MWM Motoren-Werke Mannheim AG |
|
Number of screws |
1x Solid propeller - aft |
|
Bow thruster |
1x Fixed pitch propeller SCHOTTEL - 184 kW forward |
|
Electric installations |
1x 400/220 V - 420 kVA 1x 400 V - 72 kVA |
|
Main generators |
2x Diesel generatorsets each 210 kVA |
|
Emergency generator |
1x Diesel generatorset 72 kVA |
|
Compressed air receivers |
2x Receivers each 125 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Cargo capacity |
Grain: 4.631 m³ |
|
Tank capacities |
Ballast: 1.642 m³ Fuel Oil: 106 m³ |
|
Anchor Equipment |
3x Anchors weight each 1.740 kg Chain Length: 440,00 m |
|
Crew |
7 |
|
Manager |
Ufuk Deniz Gemicilik Tic. Ltd |
|
Owner |
Ufuk Deniz Gemicilik Tic. Ltd |
