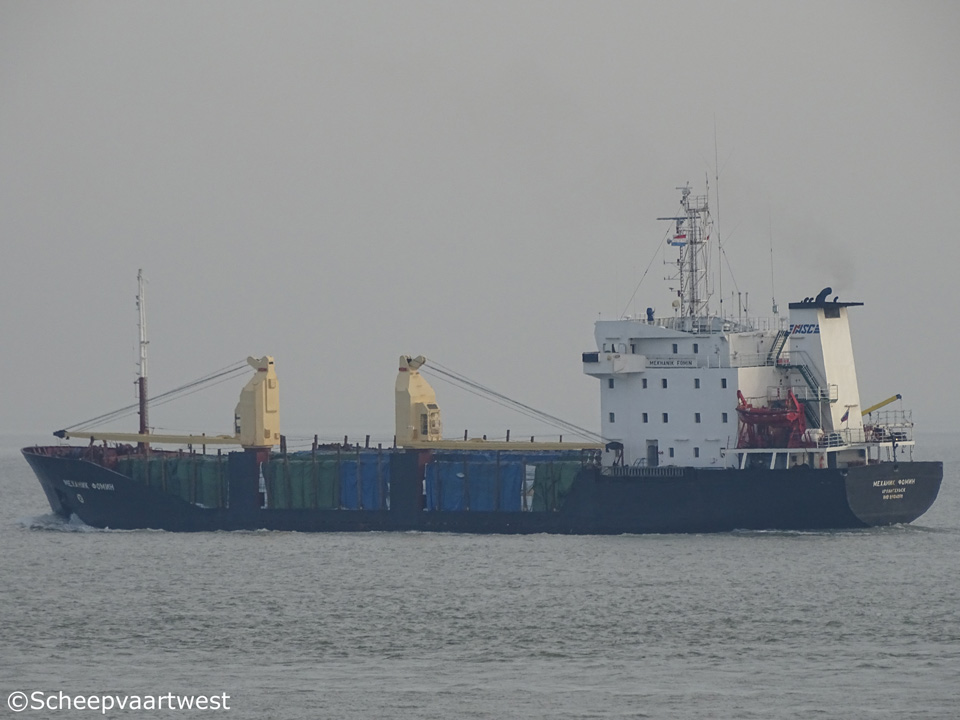

Mekhanik Fomin 05

Westerschelde 09 December 2016

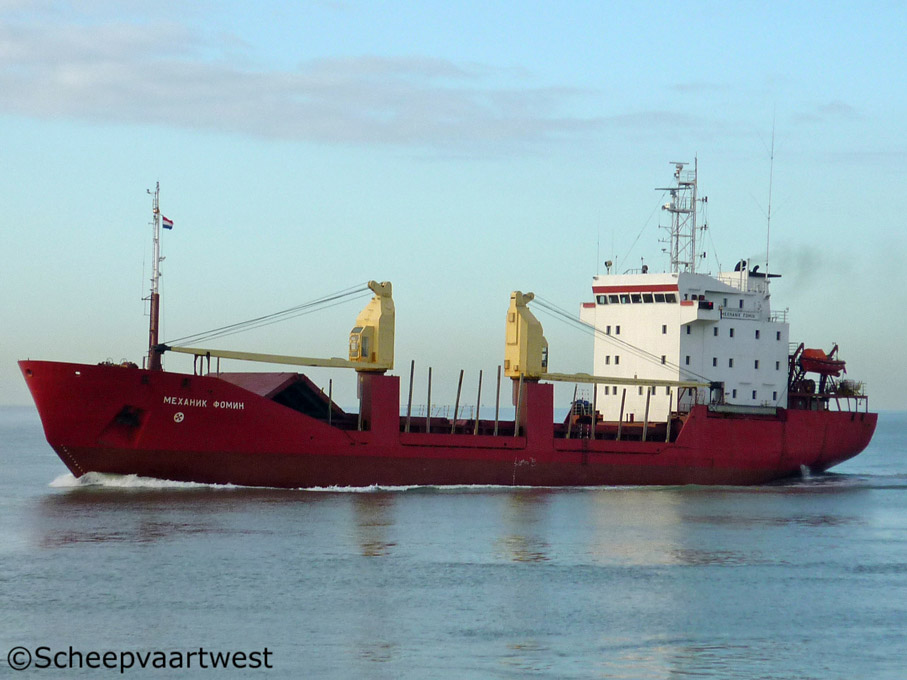

Mekhanik Fomin 02
Westerschelde 15/01/12



Name

MEKHANIK FOMIN

Russian name

МЕХАНИК ФОМИН

Type

General cargo

Sub type

Wood packaged - Wood logs - Grain

IMO-number

8904381

Call sign

UCOY

Flag

Russian Federation

Port of registry

Arkhangelsk

GT

2.489 t

Suez: 2.565,98 t

DWT

2.650 t

NT

907 t

Suez: 1.561,74 t

Displacement

4.206 t

Length

85,20 m overall

79,40 m between perpendiculars

Breadth

14,50 m moulded

Draught

5,05 m

Dist. keel to top antenna

32,90 m

Depth

6,00 m

Speed

12,6 knots

Built

1991

Date of completion

02/07/1991

Builder

Osterreichische Schiffswerft
Korneuburg
Austria

Yard number

777

Hull material

Steel

Watertight bulkheads

6

Main engine

1x B&W 6DKRN 26/98-12 - 2.074 kW at 237 rpm

Built: 1990 - USSR

Propellers

1x Controllable pitch propeller - 4 blades

Generators

3x Main diesel generatorsets each 264 kW

Number of holds

2

Dimension: each 22,40 x 16,60 x 6,00 m

Number of hatches

2

Hatch 1: 18,85 x 10,50 m

Hatch 2: 19,25 x 10,50 m

Cargo capacity

Grain 3.411 m³

Bales 3.356 m³

Deck space for cargo

507 m²

Max loading hatch covers

1,55 t/m²

Max loading on deck

3,0 t/m²

Tank capacities

Fuel oil: 197 t / 227 m³

Fresh water: 49 t

Water ballast: 738 t

Lifting equipment

2x Cranes - SWL 5,0 t each

Crew

16

Manager

Northern Shipping
Arkhangelsk
Russia

Operator

NSC Arkhangelsk

Owner

Northern Shipping
Arkhangelsk
Russia

Registered owner

Northern Shipping Company, Joint-Stock Company
Naberezhnaya Severnoy Dviny, 36

163000 Arkhangelsk

Russia

Scrapped

08/2018 at Aliaga - India

Latest data adjustment

07 November 2018
