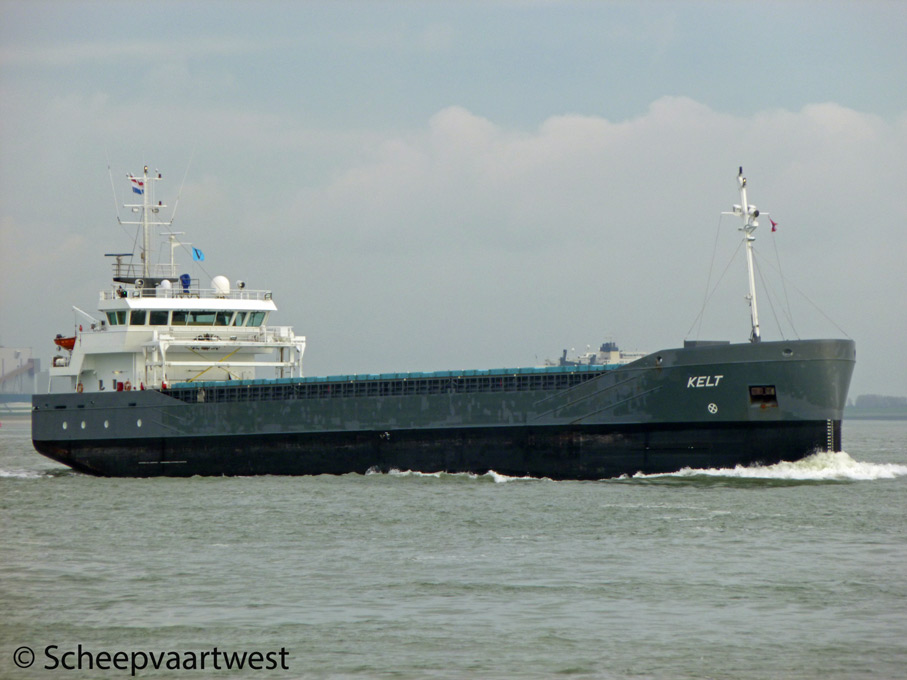

Kelt 02
Westerschelde 25 October 2012

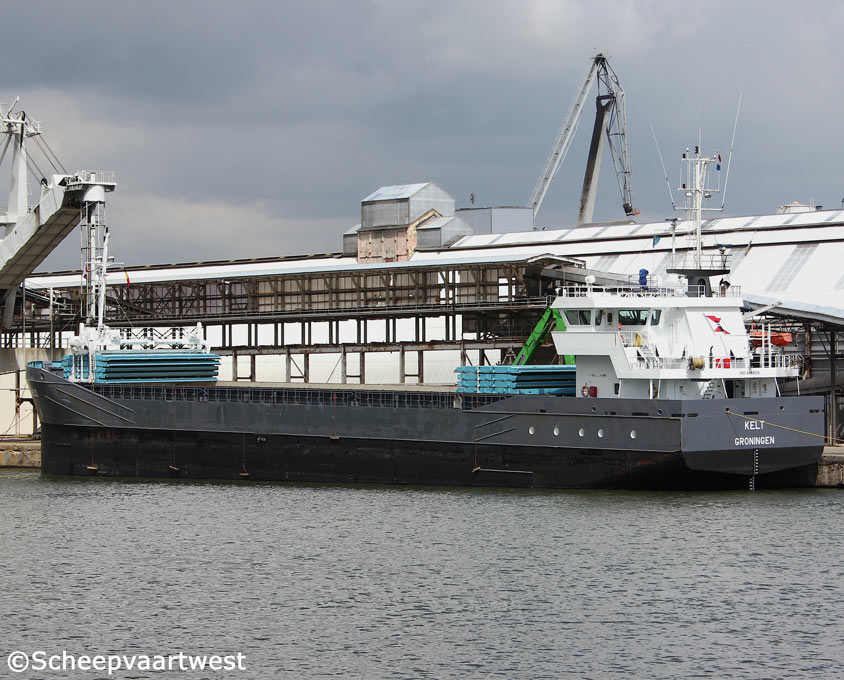

Kelt 03
Antwerpen 07/05/15



Name

KELT

Type

General cargo ship - Strengthened for heavy cargo - Bottom strengthened for loading and unloading aground - Super Saimax

IMO-number

9489534

Call sign

PBTL

Flag

The Netherlands

Port of registry

Groningen

GT

2.409 t

DWT

Summer: 3.752 t

NT

993 t

Number of 20ft containers

132

Reefer capacity

In hold: 48

Length

82,50 m overall

80,86 m between perpendiculars

Breadth

12,50 m

Draught

Summer: 5,41 m

Air draft

14,00 m

Depth

8,00 m

Speed

11,5 knots

Built

2009

Keel laid

2008

Launch date

14.03.2009

Date of completion

14.08.2009

Builder casco

Leda Shipyards
Korcula
Croatia

Builder completion

Peters Shipyard
Kampen
The Netherlands

Yard number: 1016

Hull material

Steel

Movable bulkhead

2

Continuous decks

1

Main engine

1x Caterpillar 3512 B HD DITA - 4 stroke single acting 12 cylinder 170 x 215 mm diesel engine - 1.249 kW / 1.697 hp at 1.600 rpm

Built: 08.2009
Builder: Caterpillar Tractor Company Inc., Peoria (Illinois) - U.S.A.

Gearbox

1x Reduction gear Reintjes AF-1172 6.696:1

Propellers

1x Controllable pitch propeller at 239 rpm, right turning

Diameter: 2.600 mm - 4 blades

Electric installations

400/230 V

Shaft generator

1x 390 kVA - 312 kW

Generators

1x Sisu 645DSBIG - 6 cylinder 111 x 145 mm diesel engine 127 kW at 1.500 rpm with Stamford HCM534C generatorset 159 kVA

Built: 2008

Emergency generator

1x Sisu 49-CTA - 4 cylinder 108 x 134 mm diesel engine 65 kW at 1.500 rpm with Stamford UCM274C generatorset 77 kVA

Built: 2008

Bow thruster

1x Veth 2-K-1000 - 220 kW

Number of holds

1

54,60 x 10,30 x 8,15 m

Cargo capacity

4.583 m³ / 161.847 ft³

Number of hatches

1

54,60 x 10,30 m

Type of hatches

Pontoon

Strength

Hatchcovers: 1,5 t/m²

Tanktop: 15,0 t/m²

Tank capacities

Fuel oil: 135 m³

Water ballast: 1.982 m²

Fresh water: 26 m³

Lubricating oil: 7 m³

Dirty oil: 4 m³

Anchor equipment

2

Each 412,00 m 1.250 kg

Lifting equipment

1x Gantry Crane - SWL 13,5 t

Manager

Wagenborg Shipping B.V.
Delfzijl
The Netherlands

Owner

A. van der Velde
Groeningen
The Netherlands

Registered owner

Van Der Velde Coasting

Last update

12.02.2013
