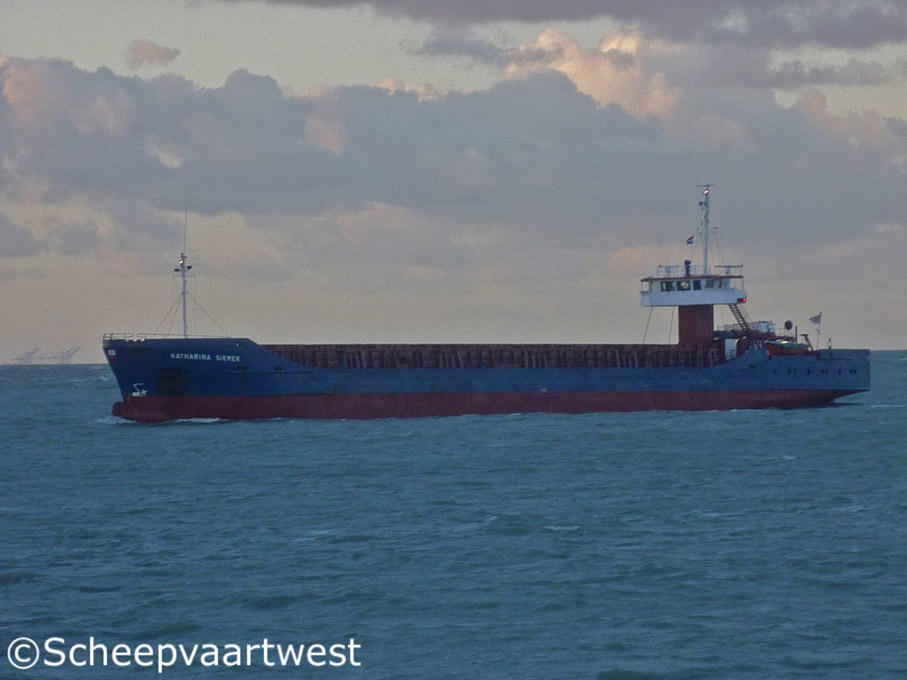

| Westerschelde 10 December 2011 |
|
Name |
KATHARINA SIEMER |
|
Previous names |
1985 - 24.07.1993 Katharina Siemer 1993 - 06.01.1996 RMS Hispania 1996 - 30.01.1999 Katharina S |
|
Type |
General cargo ship - Strengthened for heavy cargo |
|
IMO-number |
8509820 |
|
Call sign |
P3FN8 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
2.061 t |
|
DWT |
3.357 t |
|
NT |
1.074 t |
|
Number of 20ft containers |
70 |
|
Length |
87,96 m overall 85,76 m registered |
|
Breadth |
11,30 m |
|
Draught |
Summer: 5,241 m |
|
Forecastle |
6,71 m |
|
Poop |
14,95 m |
|
Depth |
7,05 m moulded |
|
Speed |
11,0 knots |
|
Built |
1985 |
|
Keel laid |
31.08.1984 |
|
Launch date |
12.08.1985 |
|
Date of completion |
09.1985 |
|
Builder |
J.J. Sietas KG Schiffswerft GmbH & Co. |
|
Yard number |
960 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
4 |
|
Continuous decks |
2 |
|
Main engine |
1x Deutz SBV 6 M 628 - 4 stroke 6 cylinder 240 x 280 mm diesel engine - 875 kW at 900 rpm Year of manufacture: 1985 Manufacturer: Klöckner-Humboldt-Deutz AG |
|
Propeller |
1x Controllable pitch propeller - aft at 202 rpm |
|
Electric installations |
2x Plant 380/220 V each 92 kVA 1x Plant 380 V - 350 kVA |
|
Shaft generators |
1x 350 kVA |
|
Generators |
2x Main diesel generatorsets each 92 kVA |
|
Compressed air receivers |
1x Receiver 250 litres - 30,0 bar 1x Receiver 125 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 147 kW, forward |
|
Tank capacities |
Fuel oil: 200 m³ Ballast water: 1.563 m³ |
|
Anchor equipment |
3x Anchors weight each 1.290 kg Chain length: 385,00 m |
|
Manager |
Kurt Siemer Reederei Gmbh & Co KG |
|
Owner |
MS "KATHARINA S" Reederei Siemer KG |
|
Special annotation |
Wheelhouse hydraulic lowering |
