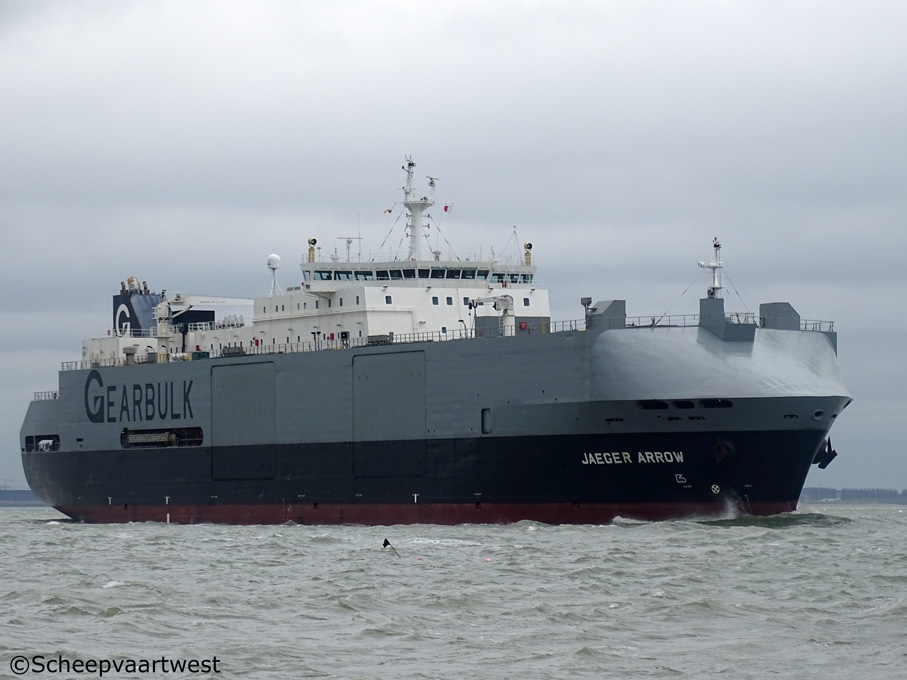

Jaeger Arrow 21
Westerschelde 16 November 2015

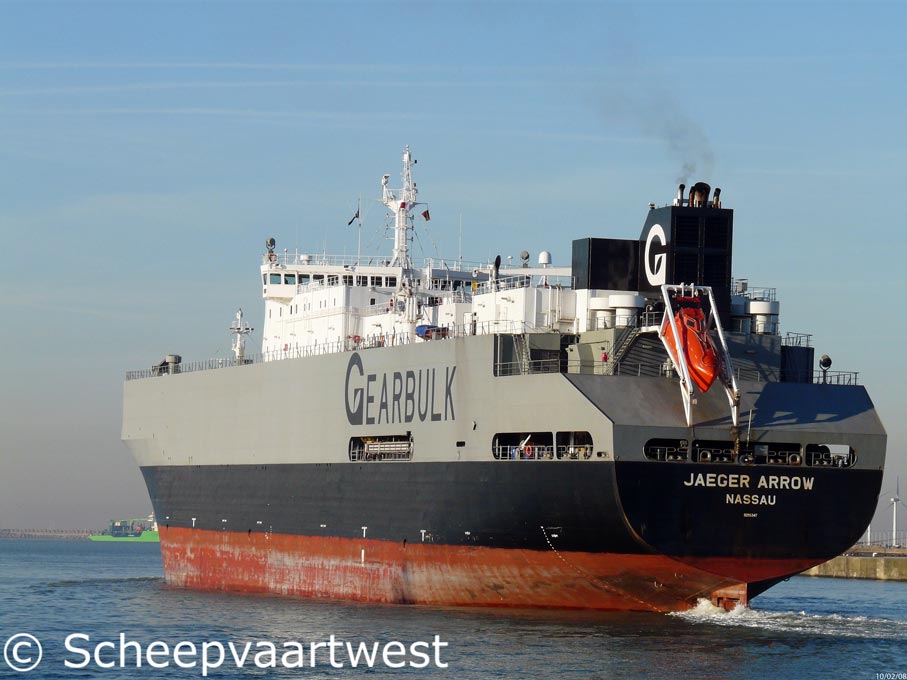

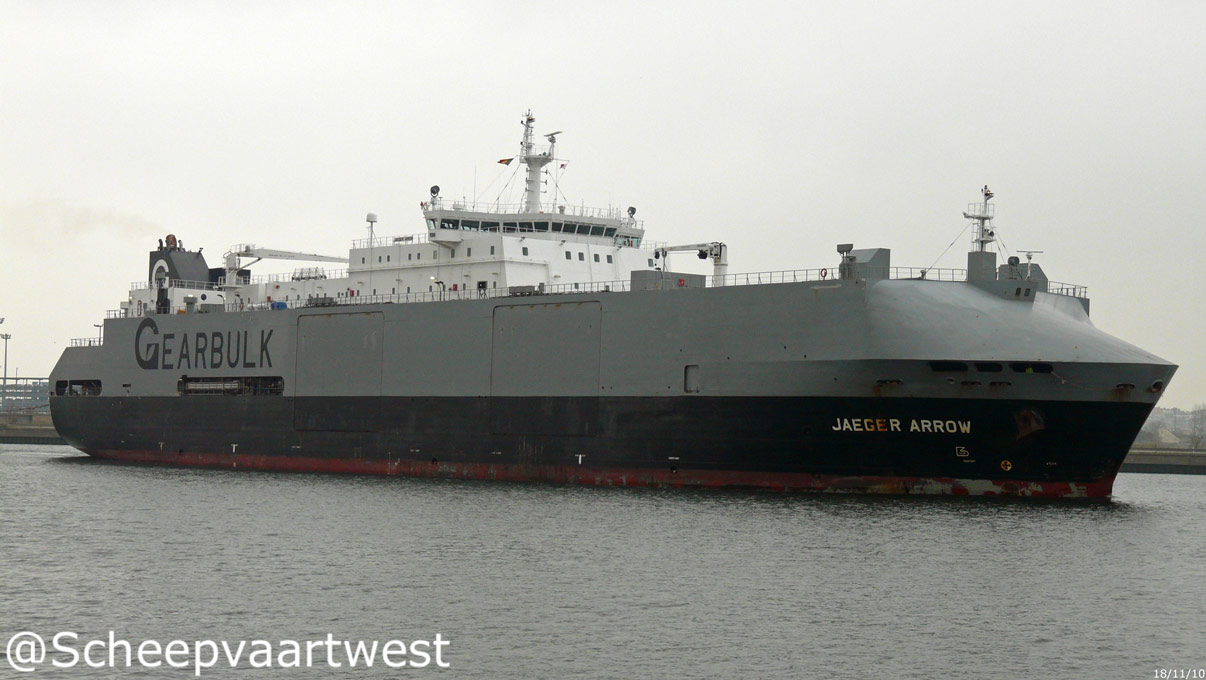

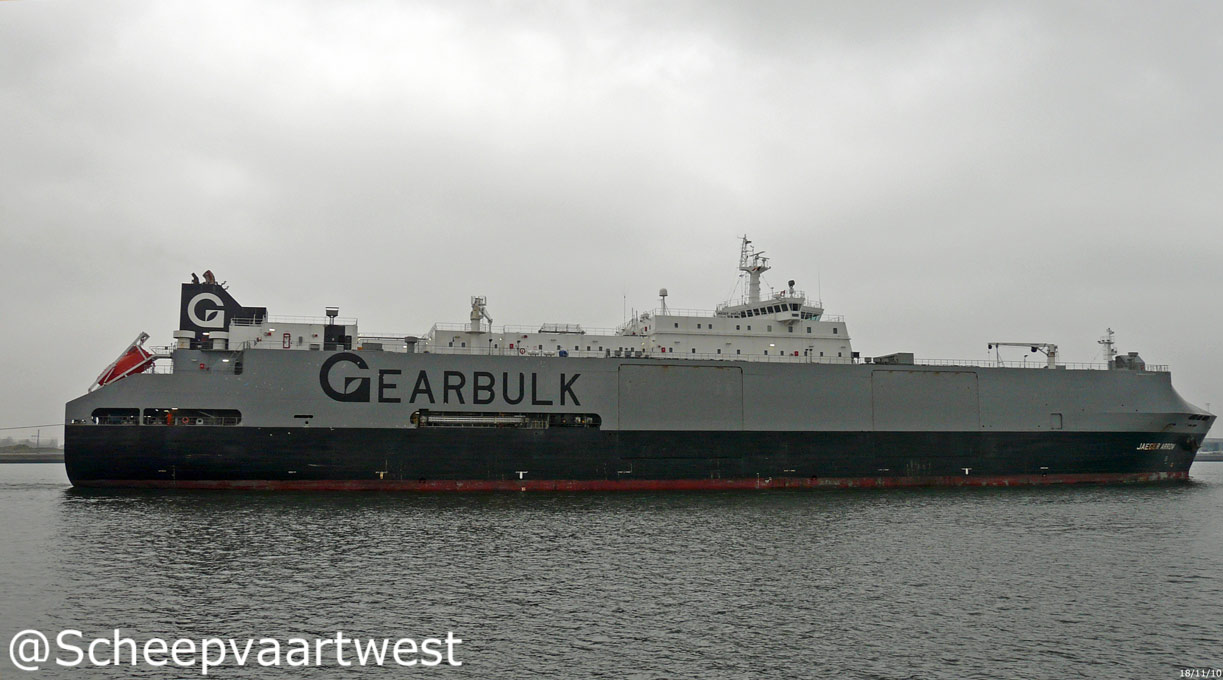

Jaeger Arrow 02   Jaeger Arrow 08 Jaeger Arrow 10
Zeebrugge 10/02/08 18/11/10 18/11/10

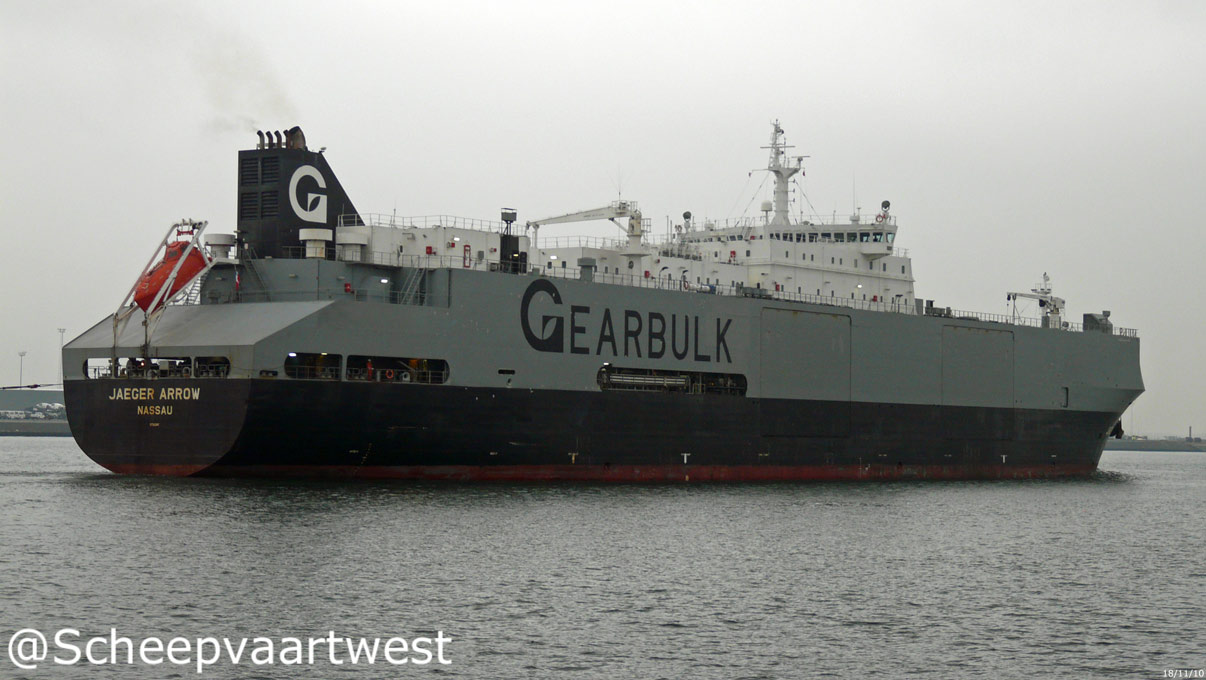

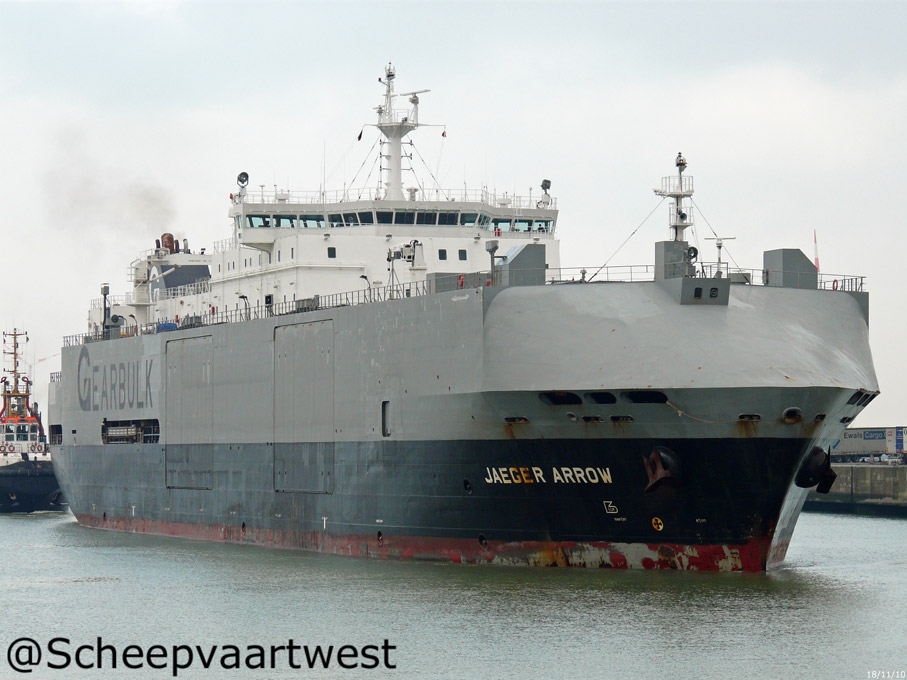

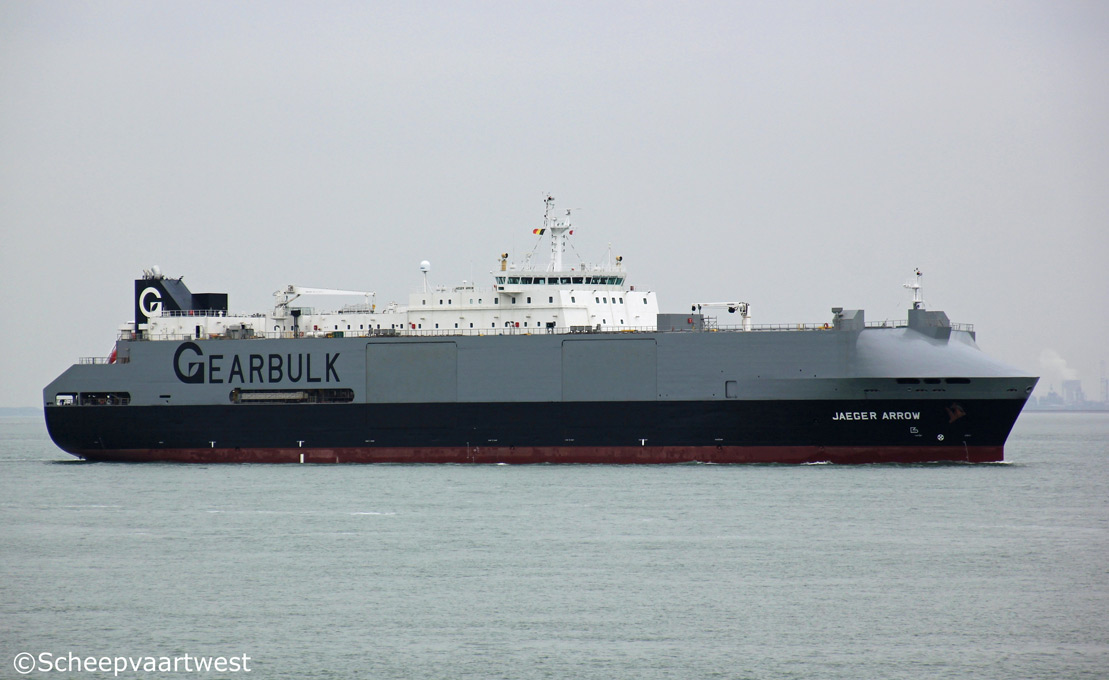

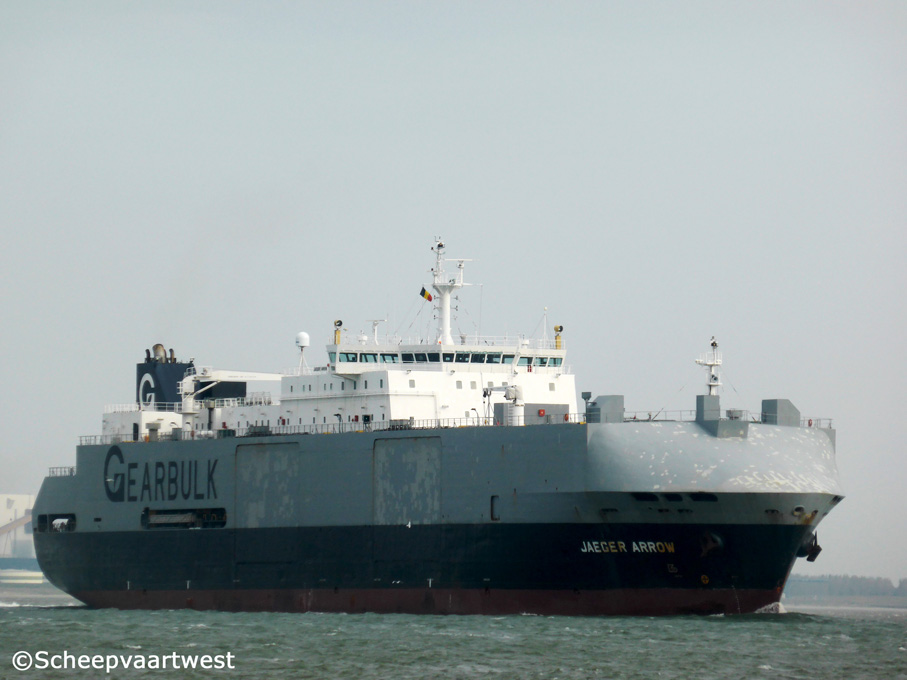

Jaeger Arrow 16   Jaeger Arrow 12   Jeager Arrow 19   Jaeger Arrow 22
18/11/10 18/11/10 Westerschelde 12/10/14   23/10/15

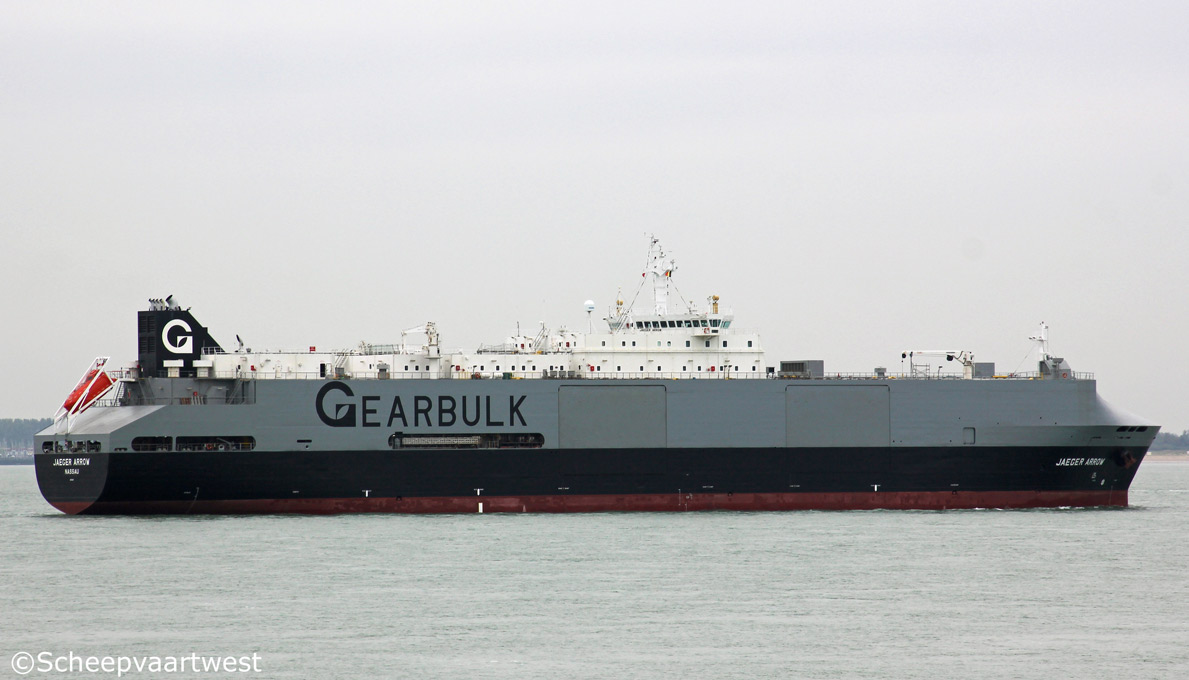

Jaeger Arrow 23
23/10/15



Name

JAEGER ARROW

Type

Bulk Carrier - Dry bulk cargo carriage - Self handling cargo vessel
Totally enclosed combined forestry and liquid pitch carrier

IMO-number

9215347

Call sign

C6RM7

Flag

Bahamas

Port of registry

Nassau

GT

29,103 t registered

DWT

24.101 t

NT

8.730 t registered

Length

171,40 m overall
162,40 m between perpendiculars

Breadth

24,80 m overall

Draught

Summer: 11,01 m

Moulded L x B x D

162,40 x 24,80 x 14,00 m

Registered L x B x D

162,88 x 24,80 x 14,00 m

Freeboard

3.010 mm

Depth

14,00 m

Speed

18,0 knots

Built

2001

Keel laid

03.04.2000

Date of completion

07.05.2001

Builder

Hyundai Mipo Dockyard Co. Ltd
1381 Bangeo-Dong Dong-Ku
Ulsan 682-712
Republic of Korea

Yard number

9914

Hull type

Double hull

Main engine

1x MAN B&W/HHI 6S0MC-C - 2 stoke single acting 6 cylinder 600 x 2.400 mm diesel engine - 12.985 kW / 17.903 hp ta 101,0 rpm

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 630 mm

Number of screws

1x Fixed propeller

Boilers

1x Auxiliary thermal oil heater - 10,0 bar

Evaporation: 2.750,00 kW

Manufacturer: Heatmaster B.V.

Generators

4x Generators 3.525 kVA

Tank capacity

7.458 m³

Cargo pumps

4x 175 m³/h

Holds

5x Dry cargo holds

Hold 1: 12,00 x 19,40 x 13,77 m

Hold 2: 12,00 x 20,00 x 14,37 m

Hold 3: 12,80 x 20,00 x 14,37 m

Hold 4: 21,60 x 20,00 x 14,37 m

Hold 5: 12,00 x 20,00 x 13,77 m

Hold capacity

Bale: 700.920 ft³ / 19.836 m³

Tank capacities

Fuel oil: 2.568 m³

Fresh water: 311 m³

Water ballast: 10.606 m³

Cranes

2x Overhead cranes under the 'roof' of her structure 40 t Gantry

Crew

21

Manager

Gearbulk Norway AS
Damsgårdsveien 165
5160 Laksevåg
Norway

Previous manager

2001 - 2011 Kristian Gerhard Jebsen Skipsrederi A/S
Folke Bernadottes Vei 38
5147 Fyllingsdalen
Norway

Operator

Gearbulk

Registered owner

Gearbulk Norway AS

Latest data adjustment

07 September 2016
