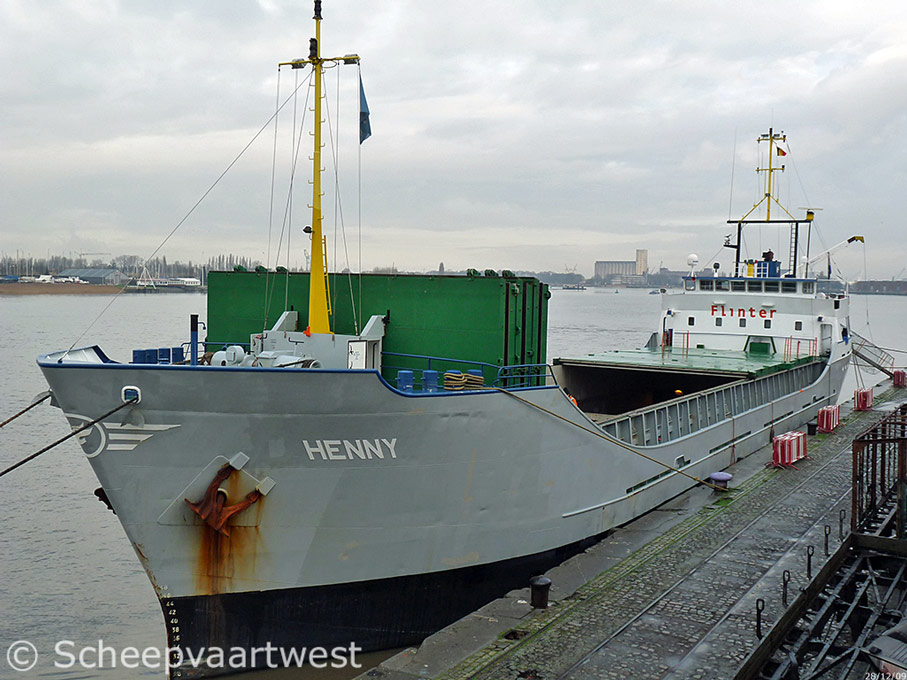

Henny 03
Antwerpen 28 December 2009



Name

HENNY

Previous names

1983 - 2000 Dependent

2000 - 2004 Liamare

2004 Henny

Type

General cargo

Boxlike singledecker

IMO-number

8200797

Call sign

PDNZ

Flag

The Netherlands

Port of registry

Delfzijl

GT

1.241 t

DWT

Summer: 1.780 t

Winter: 1.680 t

NT

653 t

Length

65,50 m overall

59,95 m between perpendiculars

Breadth

11,35 m

Draught

4,56 m

Air draft

Ballast: 4,50 m

Freeboard

863 mm

Depth

5,40 m

Speed

11,5 knots

Built

1983

Date of completion

10.01.1983

Builder

Peters IJsselmeer Shipyard
Kampen
The Netherlands

Yard number

0381

Hull material

Steel

Hull type

Single hull

Watertight compartments

5

Continuous decks

1

Main engine

1 Stork Werkspoor - 4 stroke 6 cylinder internal combustion engine - 794 kW / 1.00 hp at 850 rpm

Built 1982

Builder: Stork Werkspoor, Zwolle - The Netherlands

Propelling system

1x Screw propeller solid at 280 rpm

Electrical installation

Power voltage: 380 V

Lighting voltage: 220 V

Frequency: 50 Hz

Diesel generators

4x Main diesel generatorsets each 74 kVA - 59,2 kW

Number of holds

1

41,40 x 9,55 x 6,30 m

Total capacity of holds

Grain: 2.435 m³ / 86.000 ft³

Bale: 2.379 m³ / 84.000 ft³

Cargo hatchways

1

36,60 X 9,00 m

Fuel capacity

94 m³

Operator

Flinter Shipping B.V.

Rotterdam
The Netherlands

Owner

Vink Shipping

The Netherlands
