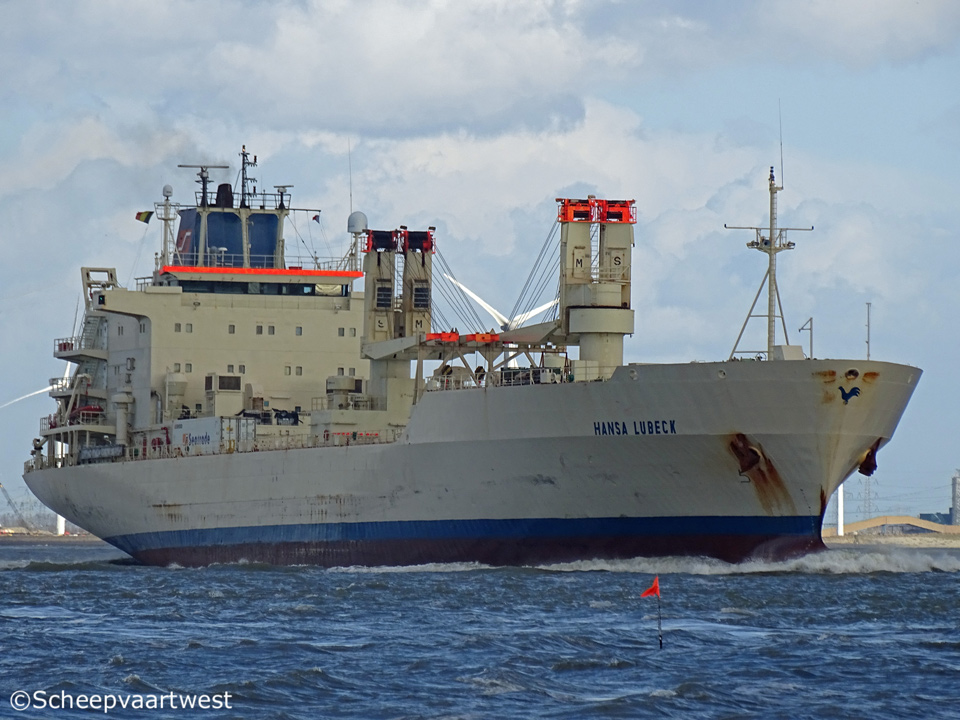

Hansa Lübeck 07

Westerschelde 29 March 2016

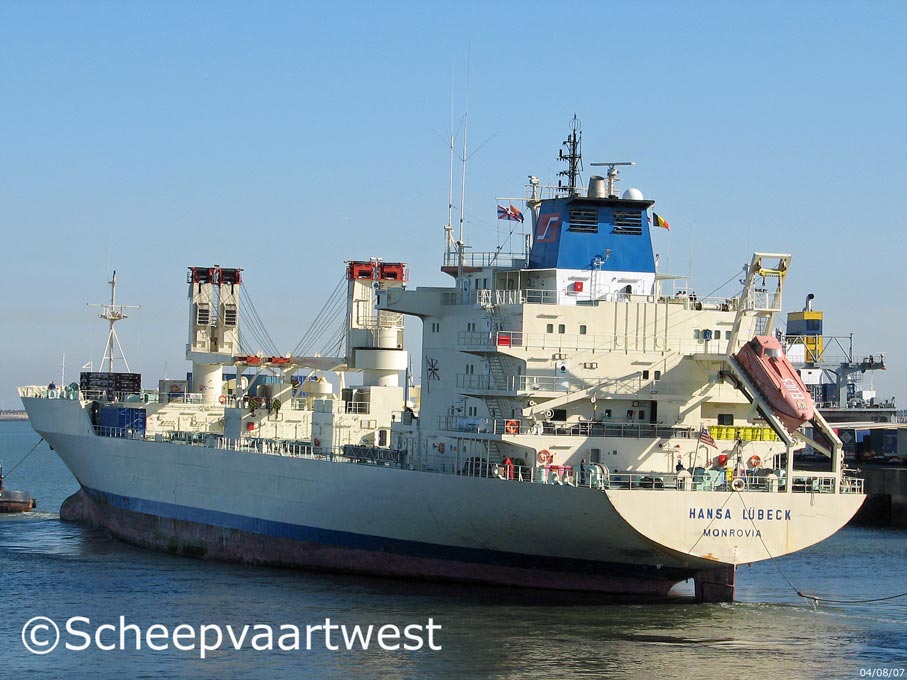

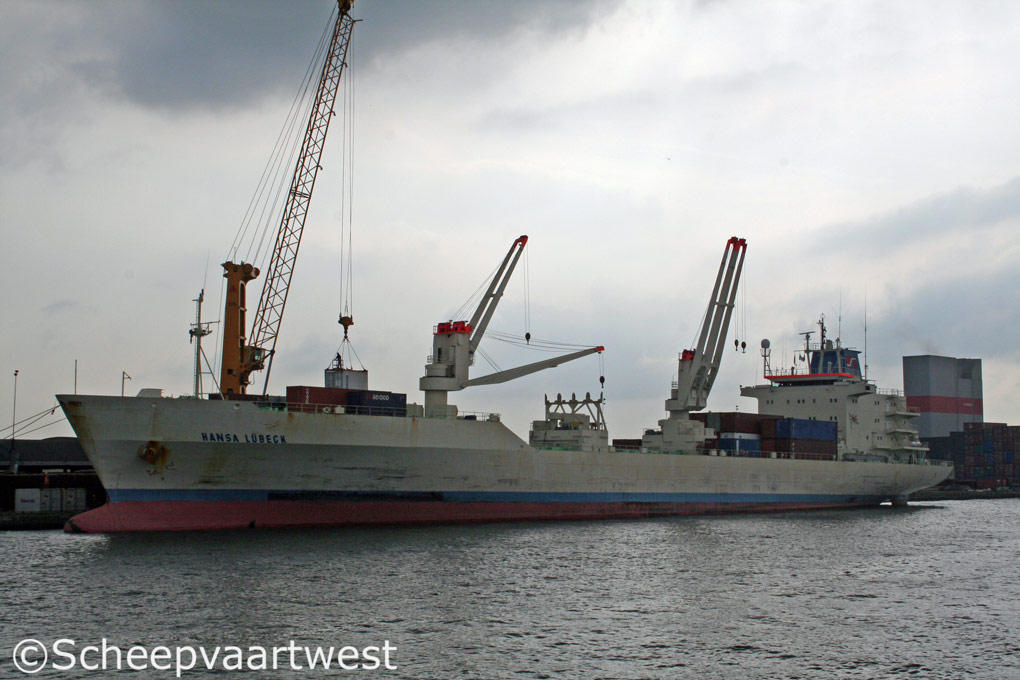

Hansa Lubeck 01   Hansa Lübeck 05   Hansa Lubeck 06
Zeebrugge 04/0/07   Antwerpen 31/08/11 Westerschelde 24/01/14



Name

HANSA LÜBECK

Type

Refrigerated cargo ship - Equipped for carriage of cars - Equipped for carriage of containers

IMO-number

8909068

Call sign

8PLL

Flag

Barbados

Port of registry

Bridgetown

Previous flag

1990 Germany

2009 - 2014 Liberia, Monrovia - Call sign: ELUC5

GT

10.842 t

DWT

Summer: 12.942 t

NT

6.381 t

Panama: 9.670 t

Suez: 9.580 t

Container capacity

On deck: 206 TEU or 102 FEU + 2 TEU

Reefer plugs

78 On weatherdecks

Length

156,53 m overall
147,70 m between perpendiculars
149,77 m registered

Breadth

23,04 m overall

Draught

Summer: 9,53 m

Forecastle

44,36 m

Freeboard

3.690 mm

Depth

13,20 m

Speed

21,0 knots

Built

1990

Keel laid

18/12/1989

Launch date

18/08/1990

Date of completion

12/1990

Builder

Bremer Vulkan A.G.
Lindenstr 110

Vegesack
28722 Bremen
Germany

Yard number

87

Hull material

Shipbuilding steel (higher tensile)

Hull type

Single hull

Partly double bottom, (E.G. interrupted in way of machinery space)

Main engine

1x Bremer Vulkan B&W 7L60MC - 2 stroke single acting 7 cylinder combustion engine - 11.220 kW / 15.259 hp

Builder: Bremer Vulkan Bremen - Germany

Number of screws

1x Solid propeller (keyless) - aft

Generators

2x Generators each 1.370 kW

1x Generator 960 kW

Cargo capacity

590.654 ft³ - 6.687 m³

Floorspace

6.687 m²

Holds / hatches / compartments

4 / 4 / 16

Ventilation / Air changes

Vertical / 90

Cargo gear

4x Cranes SWL - 18 t or

2x Cranes SWL - 35,4 t

Tank capacities

Ballast: 1.576 m³

Fuel oil: 1.683 m³

Manager

Holy House Shipping AB
Frejgatan 85,
SE-113 26 Stockholm
Sweden

Previous manager

Leonhardt & Blumberg, Bremen - Germany

Owner

Holy House Shipping
Stockholm

Sweden

Scrapped

27/08/2017 Alang - Turkey

Latest data adjustment

17 June 2018
