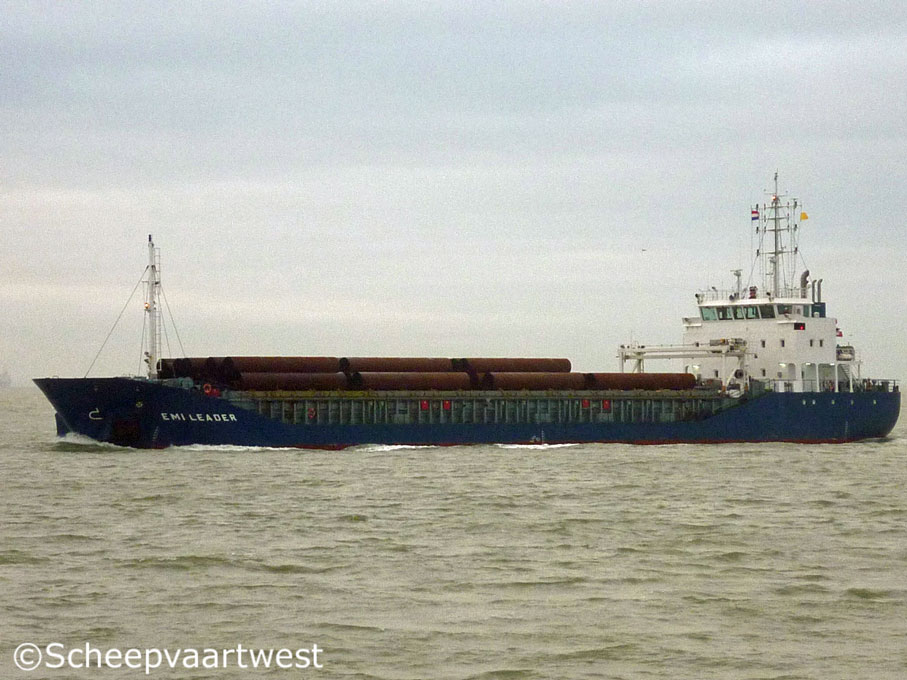

EMI Leader 01
Westerschelde 26 December 2011

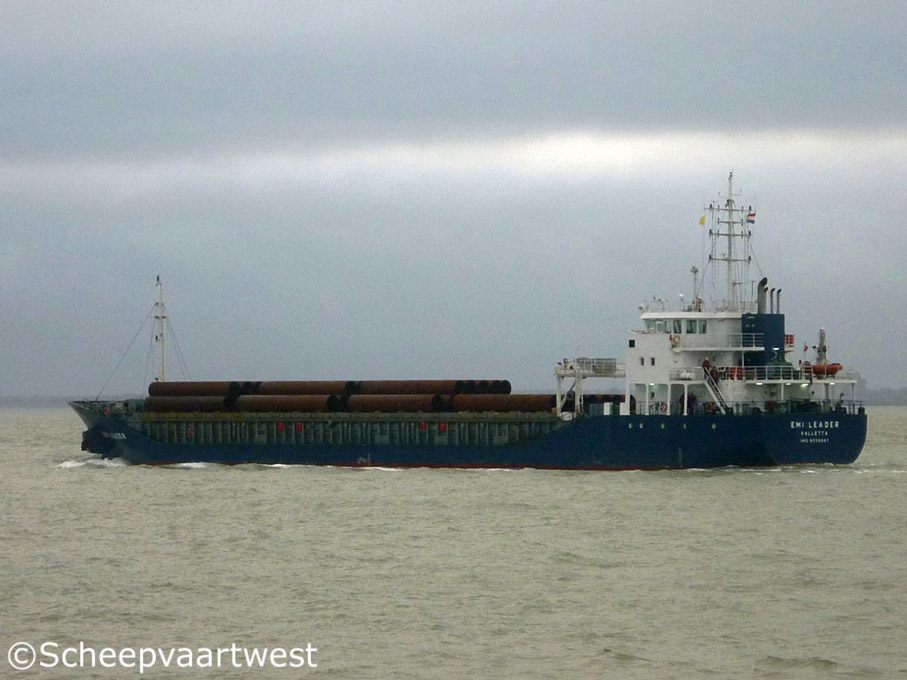

EMI Leader 05
Westerschelde 26/12/11



Name

EMI LEADER

Type

Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo

IMO-number

9505687

Call sign

9HWX9

Flag

Malta

Port of registry

Valletta

GT

2.997

DWT

4.498 t

NT

1.621 t

Length

89,92 m overall

84,51 m registered

Breadth

14,00 m registered

Draught

5,812 m

Depth

7,15 m moulded

Speed

12,5 knots

Built

2009

Keel laid

18.03.2008

Launch date

09.12.2008

Date of completion

29.06.2009

Builder

Onega Shipbuilding Yard CJSC
ul. Rigachina 25
185005 Petrozavodsk
Russian Federation

Yard number

202

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

1

Main engine

1x Wärtsilä 6L26A2 - 4 stroke 6 cylinder 260 x 320 mm diesel engine - 1.950 kW at 900 rpm

Year of manufacture: 2008

Manufacturer: Wärtsilä Italia S.p.A. Genoa Service Centre
Via al Molo Giano
16128 Genova GE
Italy

Propeller

1x Controllable pitch propeller - aft at 223 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating surface: 83,0 m²

1x Thermal oil heater, oil fired - 13,0 bar

Heating surface: 16,0 m²

Year of manufacture: 2007

Manufacturer: Alfa Laval Aalborg B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

Electric installations

2x Plant each 400 V - 225 kVA

1x Plant 400 V - 380 kVA

1x Plant 400 V - 112 kVA

1x Plant 12 V - 180 Ah

1x Plant 12 V - 420 Ah

Shaft generator

1x 380 kVA

Generators

2x Main diesel generatorsets each 225 kVA

Emergency generator

1x Diesel generatorset 112 kVA

Batteries

4x Batteries for start the emergency engine each 420 Ah

2x Batteries for UPS radio each 180 Ah

Compressed air receivers

2x Receivers each 355 litres - 33,0 bar

Bow thruster

1x Transverse thruster - 170 kW, forward

Anchor equipment

3x Anchors weight each 2.100 kg

Chain length: 440,00 m

Crew size

12

Manager

Eestinova OÜ
Kose tee 33a
12013 Tallinn
Estonia

Registered owner

EMI Leader Shipping Ltd.
171, Old Bakery Street
Valletta,VLT1102
Republic of Malta
