| Zelzate, Belgium 20 October 2012 |
 |
| Zelzate, Belgium 20/10/12 |
|
Name |

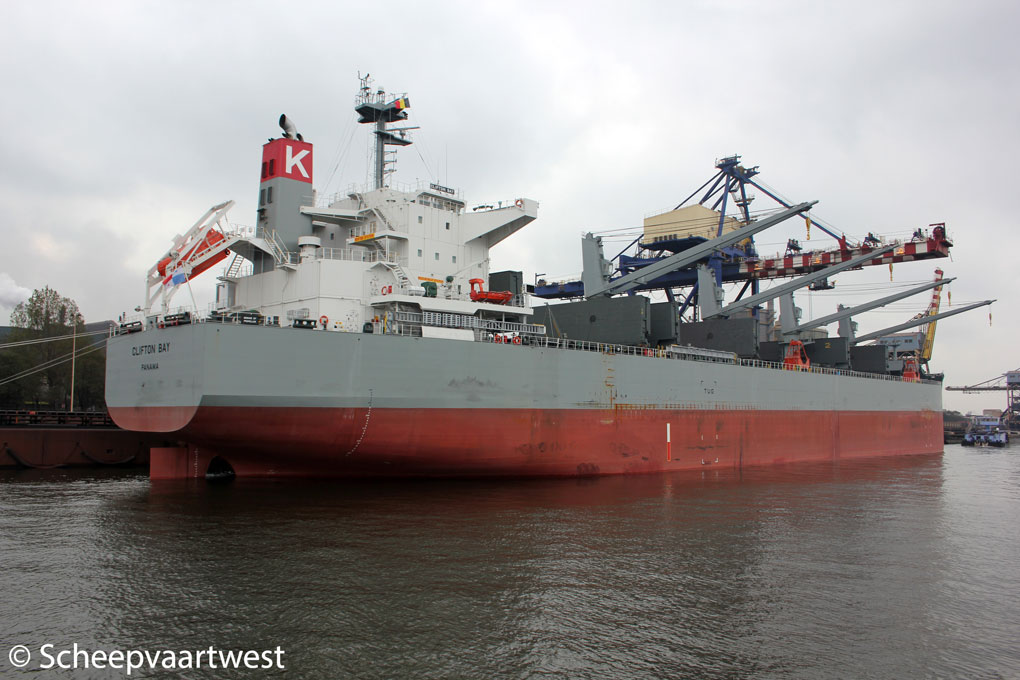

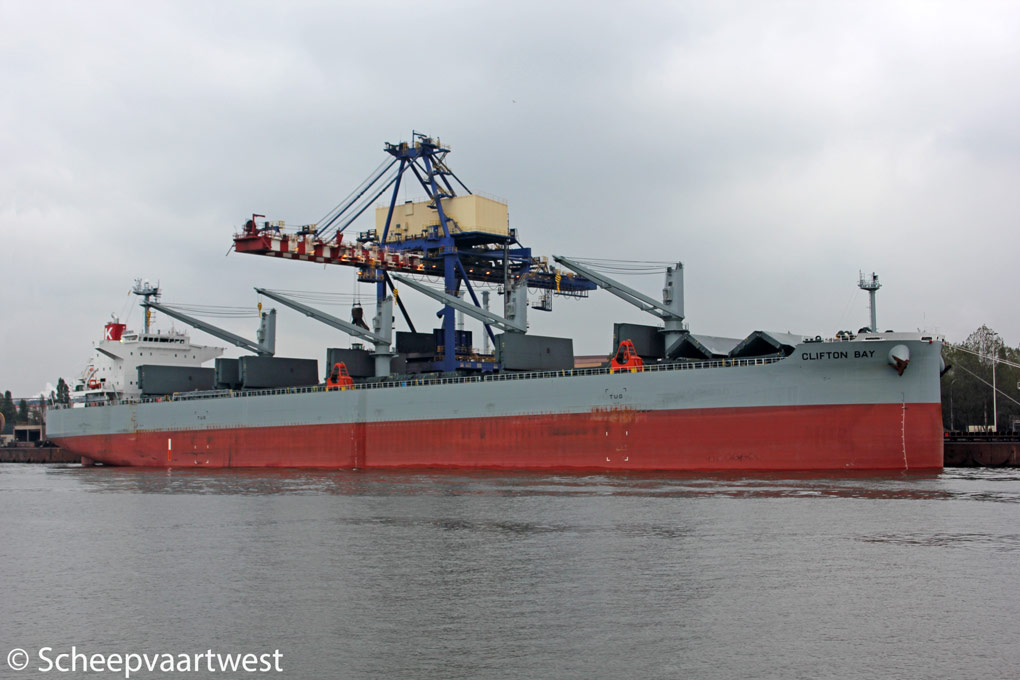

CLIFTON BAY |
|
Type |
Bulk carrier - Strengthened for heavy cargo loading |
|
IMO-number |
9615743 |
|
Call sign |
3FOL7 |
|
Flag |
Republic van Panama |
|
Port of registry |
Panama City |
|
GT |
33.126 t registered |
|
DWT |
58.628 t |
|
NT |
19.142 t registered |
|
Length |
197,00 m overall |
|
Breadth |
33,00 m |
|
Draught |
12,67 m |
|
Moulded L x B x D |
194,00 x 32,26 x 18,10 m |
|
Registered L x B x D |
194,00 x 32,26 x 18,10 m |
|
Freeboard |
Summer: 5.477 mm |
|
Depth |
18,10 m moulded |
|
Built |
2012 |
|
Keel laid |
23.12.2011 |
|
Launch date |
27.04.2012 |
|
Date of completion |
13.07.2012 |
|
Builder |
Kawasaki Heavy Industries, Ltd. Ship & Offshore Structure Company Sakaide Shipyard |
|
Yard number |
1691 |
|
Hull material |
Steel |
|
Main engine |
1x 2 stroke single acting 6 cylinder 500 x 2.000 mm diesel engine - 8.630 kW at 116,0 rpm Manufacturer: Kawasaki Heavy Industries, Ltd. |
|
Propellers |
1 |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 3,0 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Diesel generatorsets each 2.042 kVA |
|
Cargo capacity |
Bales: 70.963 m³ Grain: 73.614 m³ |
|
Tank capacities |
Fuel oil: 2.176 m³ Fresh water: 392 m³ Water ballast: 17.482 t |
|
Manager |
Taiyo Nippon Kisen Co., Ltd. |
|
Registered owner |
"K" Line Bulk Shipping (UK) Limited |
|
Last update |
18.01.2013 |
