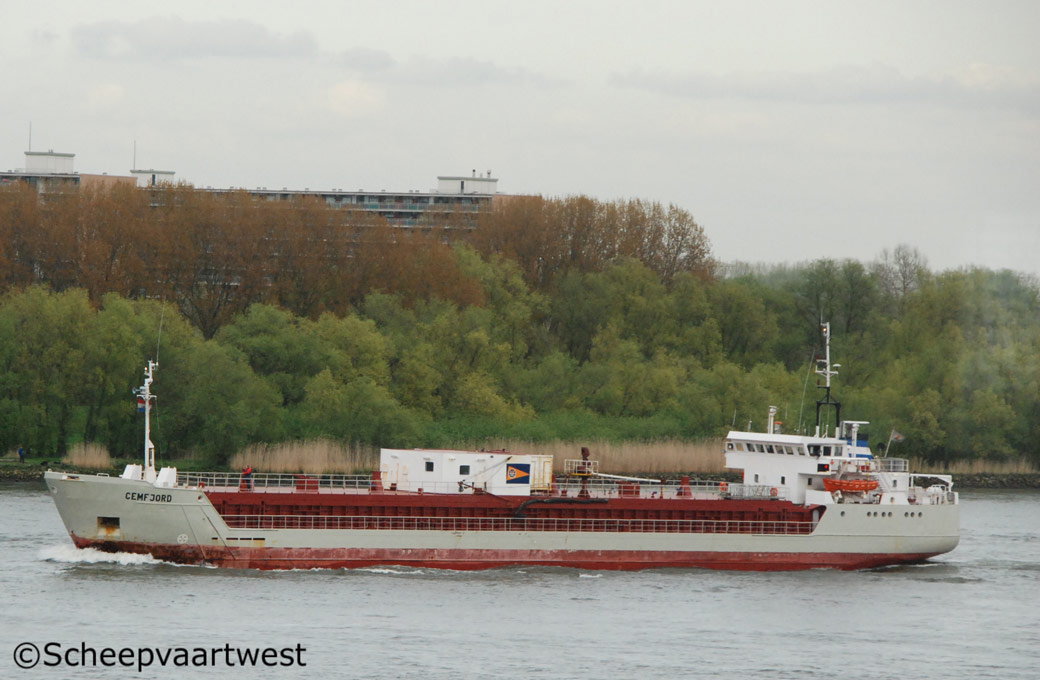

Cemfjord 01
Spijkenisse 13 April 2011



Name

CEMFJORD

Previous names

1984 - 20.12.2004 Margareta - Thekla Schepers KG MS Margareta & Co., Haren/Ems - Germany / Call sign: DCOG

May 1995 Margareta - Shark Shipping Co. NV (Briese Schiffahrts GmbH), Willemstad, Antillen

20-12-2004 Cemfjord - Arouno Shipping Co. Ltd.(Brise Bereederungs GmbH & Co. KG), Limassol - Cyprus

Type

General cargo ship - Cement carrier with pneumatic self-loading and discharging equipment

IMO-number

8403569

Call sign

P3ZG9

Flag

Cyprus

Port of registry

Limassol

GT

1.850 t

DWT

2.318 t

NT

661 t

Number of 20ft containers

72

Length

83,18 m overall

78,45 m registered

Breadth

11,34 m registered

Draught

4,347 m

Air draft

21,00 m

Forecastle

7,05 m

Poop

12,00 m

Quarterdeck

65,40 m

Depth

4,95 m moulded

Speed

10,0 knots

Built

1984

Ship converted 29.03.1998 converted to cement carrier at Morska Stoczina Remontowa S.A., Swinoujscie - Poland

Keel laid

15.02.1984

Launch date

31.08.1984

Date of completion

11.1984

Builder

Detlef Hegemann Rolandwerft GmbH
Arberger Hafendamm 16
28309 Bremen
Federal Republic of Germany

Yard number

126

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

4

Continuous decks

2

Main engine

1x Deutz SBV 6 M 628 - 4 stroke 6 cylinder 240 x 280 mm diesel engine - 1.175 kW at 790 rpm

Reduced power: 735 kW

Year of manufacture: 1984

Manufacturer: Klöckner-Humboldt-Deutz AG
51057 Köln
Federal Republic of Germany

Propellers

1x Solid propeller - aft at 263 rpm

Electric installation

2x Plants each 380/220 V - 154 kVA

1x Plant 380 V - 40 kVA

Generators

2x Main diesel generatorsets each 154 kVA

Harbour generator

1x Diesel generatorset 40 kVA

Compressed air receivers

2x Receivers each 125 litres - 30,0 bar

Bow thruster

1x Transverse thruster JASTRAM - 136 kW, forward

Number of holds

2x Holds each 1.100 m³

Tank capacities

Fuel oil: 117 m³ / 95 t

Ballast water: 1.160 m³

Fresh water: 30 t

Self loading equipment

By gravity via four (2 each hold) separate inlets (600 mm diameter) placed in centreline of vessel midships, or by pneumatic loading via eight (4 each hold) ‘stortz’ couplings (100 mm / 4”) for loading from trucks / wagons

Self discharging equipment

By pneumatic discharge at an average of 150 t/hr to shore connections, via one 10’’ or 12” outletpipe, placed midships on portside

Anchor equipment

3x Anchors weight each 1.290 kg

Chain Length: 385,00 m

Manager

Brise Bereederungs GmbH & Co. KG
Schaarsteinwegsbrücke 2
20459 Hamburg
Federal Republic of Germany

Owner

Arouno Shipping Co. Ltd.(Brise Bereederungs GmbH & Co. KG)
Limassol
Cyprus

Registered owner

Arouno Shipping Co. Ltd.
c/o Brise Bereederungs GmbH & Co. KG
Schaarsteinwegsbrücke 2
20459 Hamburg
Federal Republic of Germany

Remarks

04.01.2015 sunk off teh North Coast of Scotland 25 kilometres from Wick

Latest dat adjustment

05 January 2015
