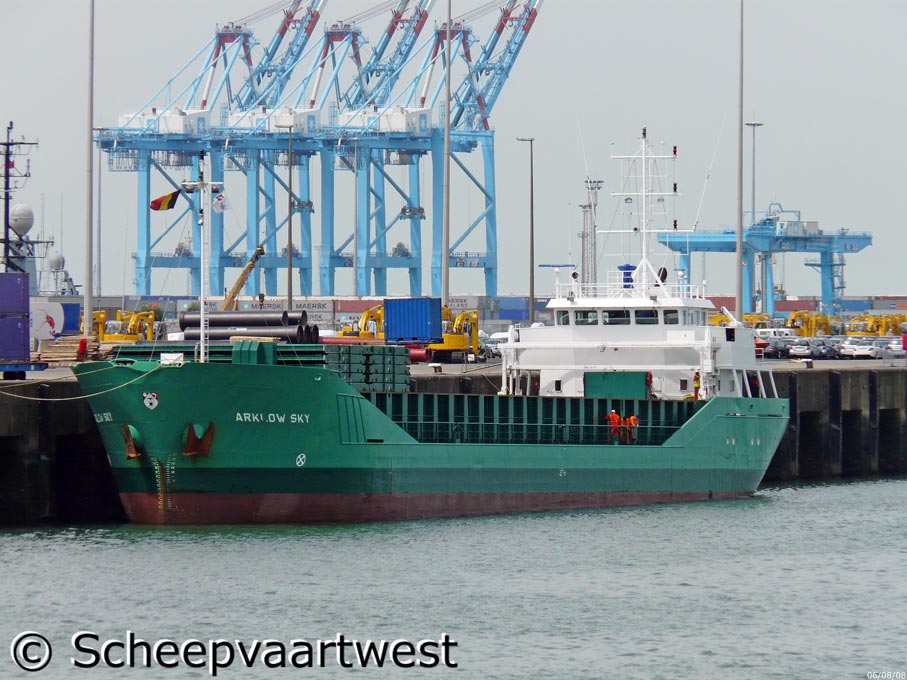

Arklow Sky - IMO 9196266

Name

ARKLOW SKY

Type

General Cargo

IMO-number

9196266

Call sign

PEBU

Flag

The Netherlands

Port of registry

Zaandam

GT

2.316 t

DWT

3.171 t

NT

1.295 t

Number of 20ft containers

270

Displacement

4.351 t

Length

89,99 m overall
84,99 m between perpendiculars

Breadth

12,64 m extreme
12,50 m moulded

Draught

Summer: 4,652 m

Air draft

Min.: 19,80 m

Freeboard

1.180 mm

Depth

6,00 m moulded

Speed

11,0 knots

Built

2000

Keel

30.06.1998

Launch date

31.03.2000

Date of completion

20.04.2000

Builder

Barkmeijer Stroobos
Stroobos
The Netherlands

Yard number

291

Hull material

Steel

Hull type

Single hull

Bulkheads

2x Portable may be placed in 6 positions for cargo separation

Watertight compartments

5

Continuous decks

1

Main engine

1x MaK 8M20 - 4 stroke 8 cylinder 200 x 300 mm diesel engie - 1.360 kW / 1.847 hp at 1.000 rpm with Lohmann & Stolterfoht 4:1 reverse reduction gear

Built: 1999

Builder: Krupp MaK Maschinenbau Kiel - Germany

Number of screws

1 Screw propeller solid at 256 rpm

Electrical installation

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Generators

2x Valmet 620DSG diesel engines each 110 kW coupled with 2 Stamford UCM274 generators each 120 kVA / 96 kW / 150 hp
1x Valmet 320DSG diesel engine 42 kW couples with Stamford UCM224 generator 63 kVA / 50 kW / 42 hp kVA 50 Hz

Bow thruster

1x 200 kW

Hatches

Roden staal pontoon system

Max. hatch top loading

1,6 t/m²

Max. tank top loading

14,0 t/m²

Hold capacity

Grain & bale: 166.765 ft³ / 4.723 m³

Cargo holds

1

Tank capacities

Ballast: 1.586,30 m³
Fuel: 92,50 m³
Fresh water: 56,20 m³
Lub oil: 3,56 m³

Manager

Arklow Shipping Aarklow
Ireland

Operator

Arklow Shipping Limited (Head Office)
North Quay
Arklow
Co. Wicklow
Ireland

Owner

BBS Bulk III KS

Owner as completed

Scheepvaartmaatschappij Titania B.V.
Rotterdam
The Netherlands
