| Vlissingen 15 May 2019 |
|
Name |

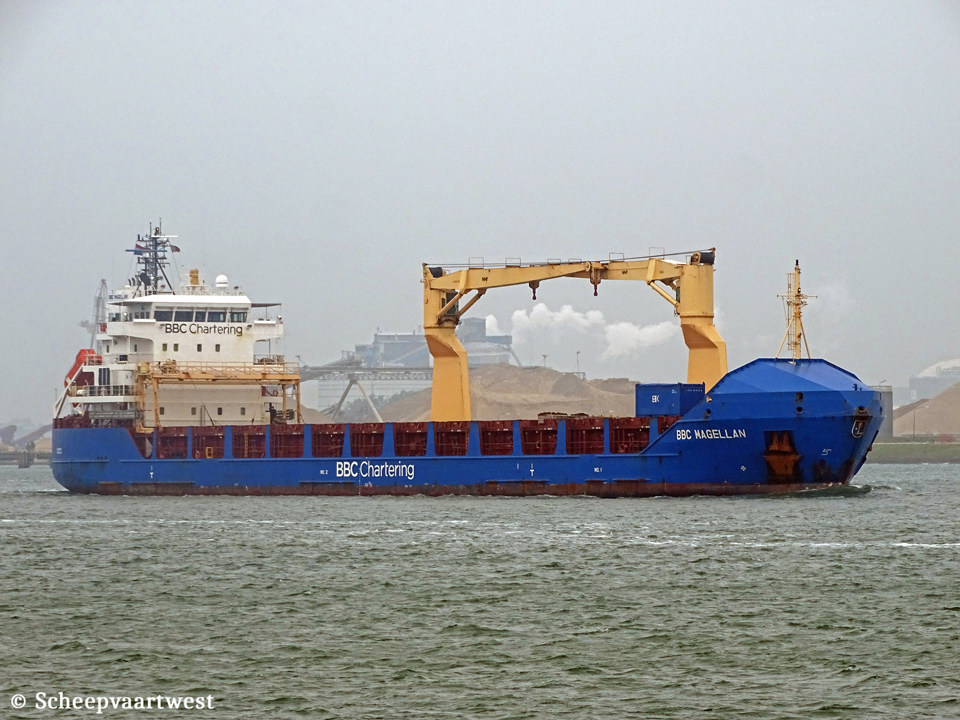

BBC MAGELLAN |
|
Type |
Multi-purpose dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo Tween decker |
|
IMO-number |
9569528 |
|
Call sign |
V2ES6 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
GT |
5.344 t |
|
DWT |
Summer: 6.264,13 t |
|
NT |
2.382 t |
|
Number of 20ft containers |
In hold: 180 on deck: 152 Total: 332 |
|
Number of 40ft containers |
In Hold: 75 + 30 TEU On deck: 68 + 12 TEU Total: 143 + 42 TEU |
|
Container capacity 14t |
310 |
|
Length |
115,47 m overall 111,63 m between perpendiculars |
|
Breadth |
16,49 m moulded 16,84 m extreme |
|
Draught |
Summer: 5,70 m |
|
Depth |
7,95 m |
|
Speed |
Max: 12,7 knots Service: 11,1 knots |
|
Built |
2010 |
|
Keel laid |
27/08/2008 |
|
Launch date |
21/09/2009 |
|
Date of completion |
10/11/2010 |
|
Builder |
Dalian Fishing Vessel Co. Dalian China |
|
Yard number |
2008-1203 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Movable bulkheads |
2x Movable bulkheads 2 positions |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32CLE - 6 cylinder combustion engine 2.999 kW / 4.077 hp |
|
Propellers |
1x Controllable Pitch Propeller - Aft |
|
Boilers |
1x Auxiliary boiler, oil/gas fired |
|
Generators |
2x MAN D2876LE301 main diesel generatorsets each 345 kW |
|
Emergency generator |
1x MAN D2866E diesel generatorset |
|
Number of holds |
2 |
|
Cargo hold capacity |
Hold 1: 2.373 m³ / 83.801 ft³ Hold 2: 6.956 m³ / 245.649 ft³ Total: 9.329 m³ / 329.450 ft³ |
|
Floor space |
Under deck: 2.093 m² / 22.529 ft² On deck: 1.046 m² / 11.259 ft² |
|
Max permitted loads |
Tanktop: 15,0 t/m² Hold 1: 2,20 t/m² on tweendeck Hold 2: 2.50 mt on tweendeck On deck: 1,75 t/m² |
|
Number of hatches |
3 |
|
Tank capacities |
RME 180: 381 m³ MGO: 84 m³ Ballast: 2.637,3 t Fresh water: 52,5 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 44 mm |
|
Cargo gear |
2x NMF deck cranes - SWL 60,0 t each Combinable: 120 t Situated Portside |
|
Manager |
Briese Schiffahrts GmbH & Co. KG Hafenstrasse 12 26789 Leer Germany |
|
Operator |
BBC Chartering GmbH |
|
Registered owner |
Briese Schiffahrts GmbH & Co. KG MS "EXTUM" |
|
Renamed |
2022 BBC Australia Antigua & Barbuda, St. John’s - Call sign: V2ES6 Owner: BBC Project Chartering GmbH - Germany Manager: Briese Dry Cargo GmbH & Co. KG |
|
Latest data adjustment |
28 October 2023 |
