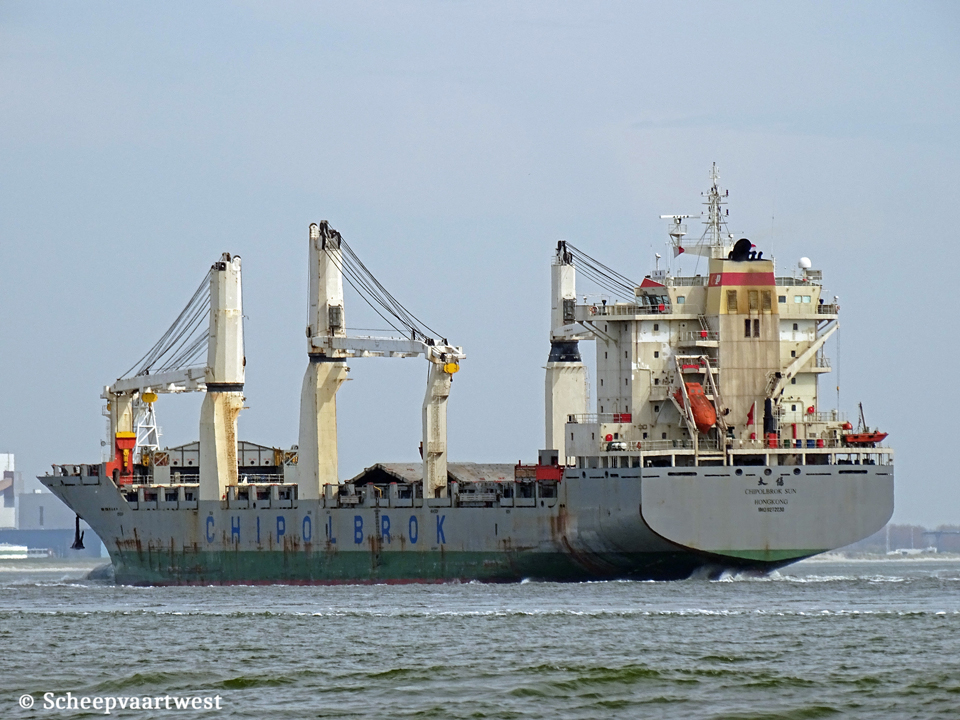

| Westerschelde 21 April 2016 |
|
Name |
CHIPOLBROK |
|
Type |
Multi-purpose dry carrier - Strengthened for heavy cargoes - Carriage of containers |
|
IMO-number |
9272230 |
|
Call sign |
VRZM4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
24.167 t Suez: 24.002 t |
|
DWT |
30.435 t |
|
NT |
10.714 t Suez: 20.515 t Panama: 21.181 t |
|
Number of 20ft containers |
1.900 |
|
Length |
199,80 m overall 189,00 m between perpendiculars |
|
Breadth |
27,80 m moulded |
|
Draught |
Summer: 10,30 m |
|
Deckhouse |
14,25 m |
|
Forecastle |
44,50 m |
|
Poop |
20,25 m |
|
Freeboard |
4.524 mm |
|
Depth |
15,50 m moulded |
|
Speed |
Max: 19,2 knots |
|
Built |
2004 |
|
Keel laid |
05/12/2002 |
|
Date of completion |
31/01/2004 |
|
Builder |
Shanghai Shipyard China |
|
Yard number |
SS192 |
|
Hull material |
Steel |
|
Hull type |
Double hu!ll |
|
Bulkheads |
6 |
|
Continuous decks |
1x Upper deck |
|
Main engine |
1x Wärtsilä 7RT-flex60C - 7 cylinder combustion engine 16.520 kW / 22.109 bhp at 108,0 rpm build: 16/05/2003 Builder: Hyundai Heavy Ind. Co., Ltd. Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Oil fires - 7,0 bar 1x Exhaust gas boiler - 7,0 bar |
|
Generators |
3x Wärtsilä 6L20 - 6 cylinder diesel engines each 1.020 kW at 900 rpm connected with generators each 960 kW - 450 Volt 50 Hz |
|
Emergency generator |
1x D2866Te diesel generatorset 212,5 kVA - 450 Volt 50 Hz |
|
Bow thruster |
1x Wuhan-Kawasaki KT-105B3 - 900 kW |
|
Number of holds |
5 |
|
Cargo hold capacity |
40.143 m³ |
|
Hold ventilation |
Mechanical 6 air-changes per hour |
|
Number of hatchways |
2x 12,64 x 11,45 m 1x 18,96 x 19,176/12,95 m 2x 25,28 x 10,50 m 4x 31,60 x 10,50 m |
|
Max permitted loads |
Upper deck: 2,5 t/m² Weather deck hatch covers: 2,5 t/m² Tweendeck hatch covers: 4,0 t/m² Tanktop: 18,0 t/m² |
|
Tank capacities |
Ballast: 11.886,1 m³ - 100% Fuel: 2.741,83 m³ - 98% Diesel oil: 175,4 m³- 98% Lub oil: 142,6 m³ - 98% Fresh water: 275,5 m³ - 100% |
|
Cargo gear |
2x MacGregor crane - SWL 320 t each 2x MacGregor crane - SWL 50 t each |
|
Crew size |
28 |
|
Operator |
Chinese-Polish Joint Stock Shipping Company Shanghai China |
|
Registered owner |
Chipolbrok Sun Maritime Co., Ltd. Hong Kong China |
|
Latest data adjustment |
30 July 2023 |
