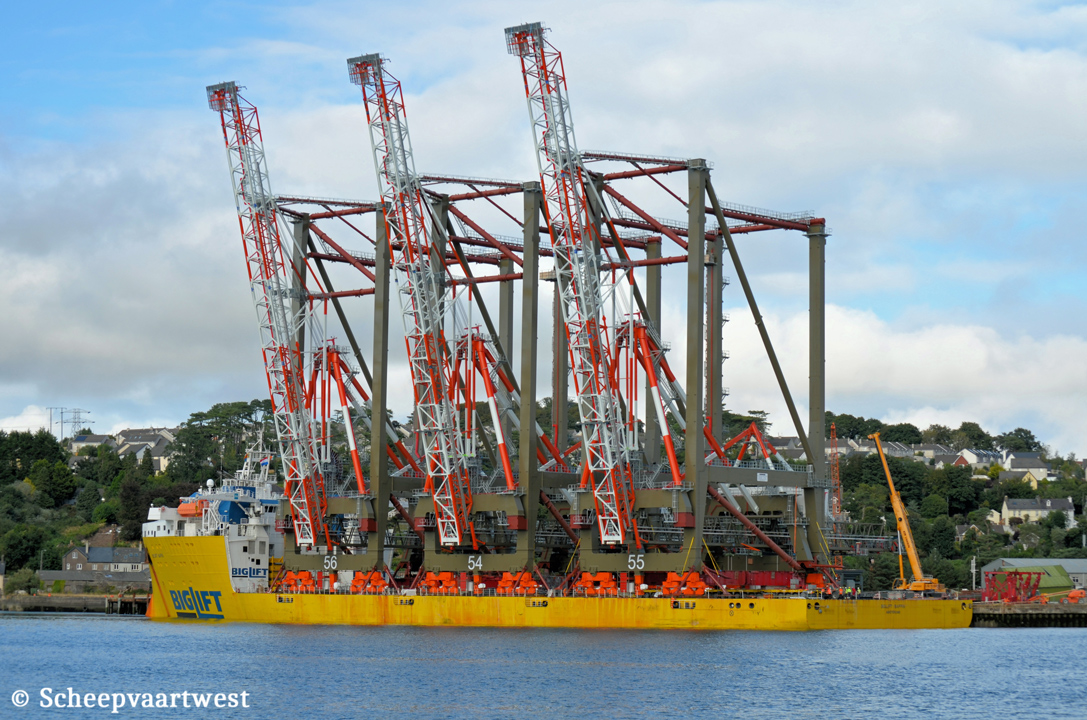

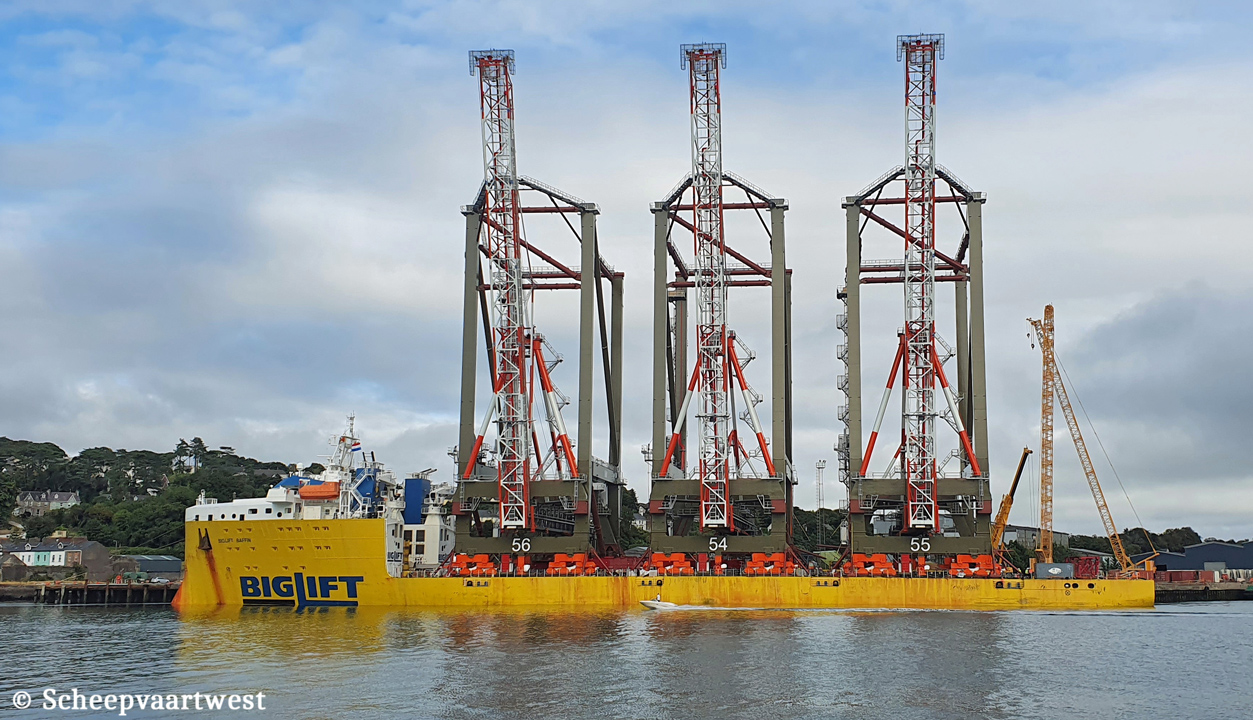

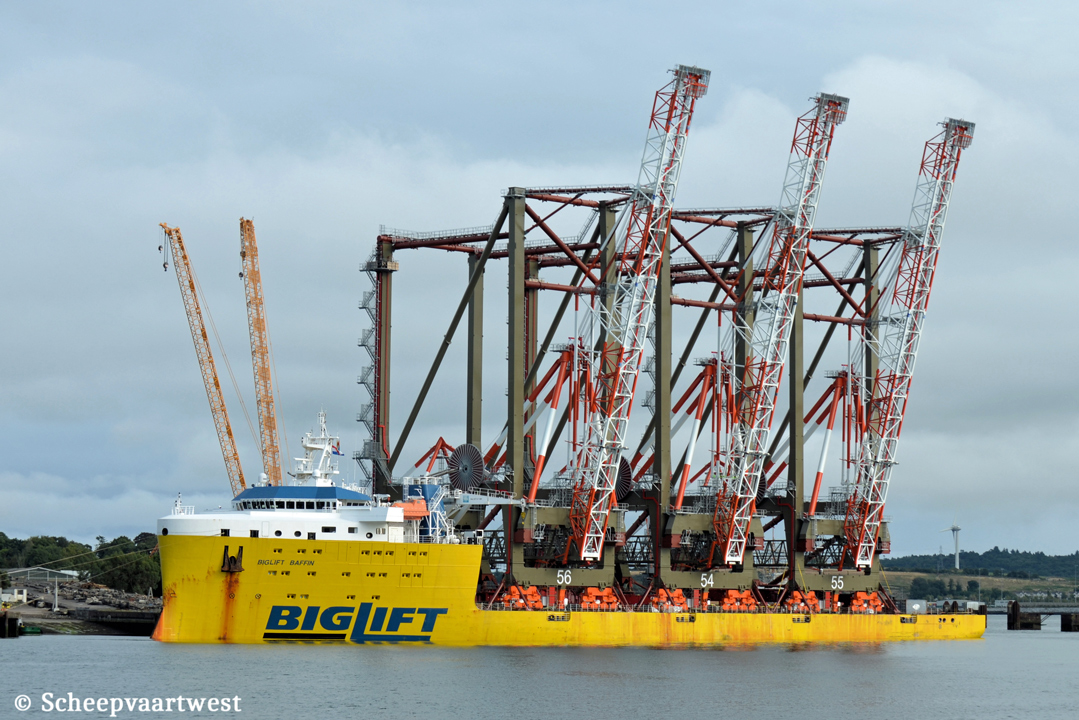

| Cork; Ireland 21 August 2022 |
 |
 |
|
| Cork, Ireland 21/08/22 | Cork, Ireland 21/08/22 |
|
Name |
BIGLIFT BAFFIN |
|
Type |
Heavy lift deck cargo - Heavy lift cargo Submersible to a depth of 1,50 m below cargo deck in harbour only |
|
IMO-number |
9758557 |
|
Call sign |
PCZI |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
23.134 t |
|
DWT |
20.081 t |
|
NT |
6.940 t |
|
Length |
173,00 m overall 162,80 m between perpendiculars |
|
Breadth |
42,01 m |
|
Draught |
Summer: 6,52 m |
|
Depth |
12,00 m moulded |
|
Speed |
Max: 15,0 knots Service: 13,0 knots |
|
Built |
2016 |
|
Keel laid |
09/11/2015 |
|
Launch date |
31/05/2016 |
|
Date of completion |
23/11/2016 |
|
Builder |
COSCO Dalian Shipyard company Dalian China, People's Republic |
|
Yard number |
N626 |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Main engines |
Diesel/ electric 2x Wärsilä 6L32 main diesel generatorsets each 2.880 kW 2x Wärsilä 8L32 main diesel generatorsets each 3.840 kW Total: 13.440 kW / 18.274 bhp Manufacturer: Wärtsilä Diesel O/Y, Turku - Finland |
|
Propulsion engines |
2x Indar ACP-7 10-L/6 each 5.000 kW |
|
Propellers |
2x Wärtsilä 4E 1095 nozzled controllable pitch propellers |
|
Generators |
1x Caterpillar C32Acert Auxiliary genset 994 kW |
|
Emergency generator |
1x Caterpillar C18Acert diesel generators 601 kW |
|
Thruster |
2x Wärtsilä FT 225 M-D thruster each 1.500 kW, forward 1x Wärtsilä FT 175 M-D thruster 1.000 kW, stern |
|
Cargo deck space |
125,00 x 42,00 m 5.250 m² 100% Flush main deck |
|
Deck load capacity |
20,0 t/m² |
|
Number of pumps |
4x Ballast pump each 3.000 m³/h 1x Ballast/Bilge pump 750 m³/h |
|
Tank capacities |
Ballast: 39.790 m³ |
|
Accommodation |
Crew: 14 Person capacity: 60 |
|
Commercial manager |
Biglift Holding BV Radarweg 36 1042 AA Amsterdam Netherlands |
|
ISM Manager |
Spliethoff's Bevrachtingskantoor B.V. Radarweg 36 1042 AA Amsterdam Netherlands |
|
Previous managers |
11/2016 - 01/2018 Bigroll Shipping B.V., Leiden - The Netherlands |
|
Registered owner |
Rederij BigLift Baffin - The Netherlands Care of BigLift Holding BV Radarweg 36 Amsterdam The Netherlands |
|
Previous names & owners |
11/2016 - 01/2018 Bigroll Baffin - Bigroll Baffin Firmanten B.V., Amsterdam - The Netherlands |
|
Latest data adjustment |
23 August 2022 |
