| Westerschelde 18 April 2019 |
|
Name |

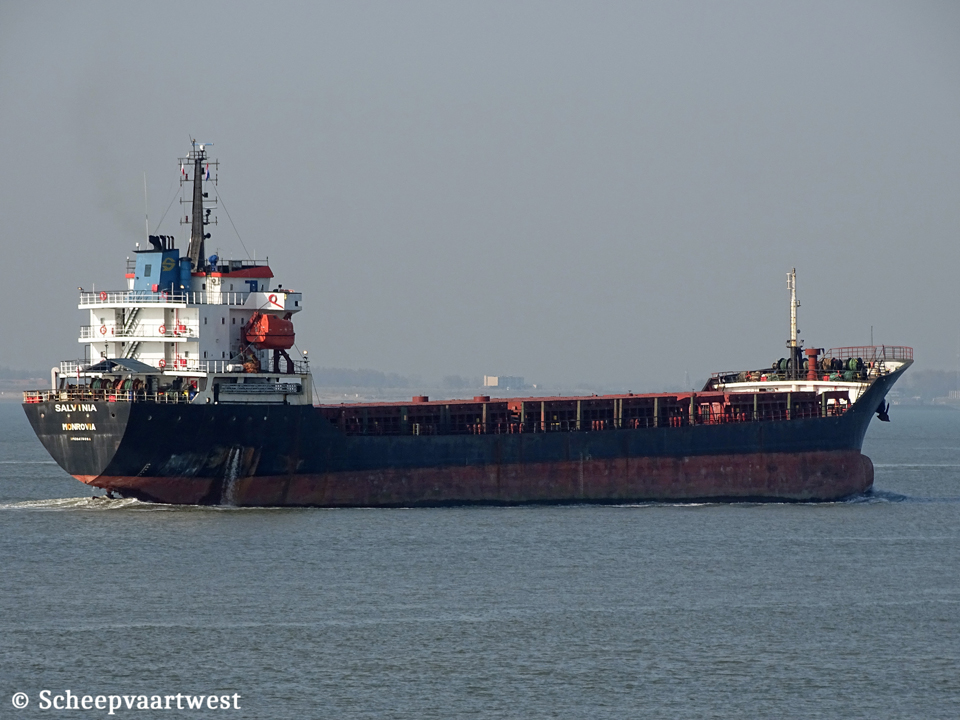

SALVINIA |
|
Previous names |
2006 - 2007 Laneia 2007 - 2013 St. Zoya |
|
Type |
General dry cargo ship |
|
IMO-number |
9419084 |
|
Call sign |
A8KK8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
6.619 t |
|
DWT |
10.407 t |
|
NT |
3.901 t |
|
Displacement |
13.532 t |
|
Length |
131,32 m overall |
|
Breadth |
18,00 m |
|
Draught |
Summer: 7,46 m |
|
Depth |
9,70 m moulded |
|
Speed |
9,0 knots laden Max: 11,5 knots |
|
Built |
2007 |
|
Date of completion |
03/01/2007 |
|
Builder |
Yueqing Jinchuan Yueqing China |
|
Yard number |
2 |
|
Hull material |
Steel |
|
Bulkheads |
6 |
|
Continuous decks |
1 |
|
Main engine |
1x Pielstick 6PC2-5L - 6 cylinder combustion engine 2.868 kW Build: 2006 Builder: Shaanxi Diesel Engine Heavy Industry Co., Ltd. - China |
|
Propellers |
1x Fixed pitch propeller - 5 blades |
|
Generators |
3x Diesel generatorsets each 200 kW |
|
Emergency generator |
1x Diesel generatorset 120 kW |
|
Number of holds |
3 Hold 1: 26,00 x 9,00/15,00 m x 10,52 m Hold 2: 32,50 x 15,50 x 10,52 m Hold 3: 32,50 x 15,50 x 10,52 m |
|
Cargo hold capacity |
Grain / bale: Hold 1: 3.537,20 m³ / 3.183,48 m³ Hold 2: 4.745,30 m³ / 4.270,77 m³ Hold 3: 4.633,00 m³ / 4.169,70 m³ Total: 12.915,50 M³ / 11.623,95 m³ |
|
Hold ventilation |
Natural |
|
Number of hatches |
Hatch 1: 15,00 x 13,00 m Hatch 2: 25,60 x 13,00 m Hatch 3: 25,60 x 13,00 m |
|
Hatch type |
McGregor folding system, single pull hatch covers |
|
Max permitted loads |
Hatch covers: 3,5 t/m² Tanktop: Hold 1: 10,7 t/m² Hold 2 &3: 9,5 t/m² |
|
Tank capacities |
Water ballast: 3.074 m³ |
|
Cargo gear |
Gearless |
|
ISM & commercial manager |
Intresco Ltd. ul. Kanatnaya, d. 1-B 65014 Odessa Ukraine |
|
Registered owner |
Salvinia Shipping Ltd. 80, Broad Str. Monrovia Liberia |
|
Latest data adjustment |
14 March 2022 |
