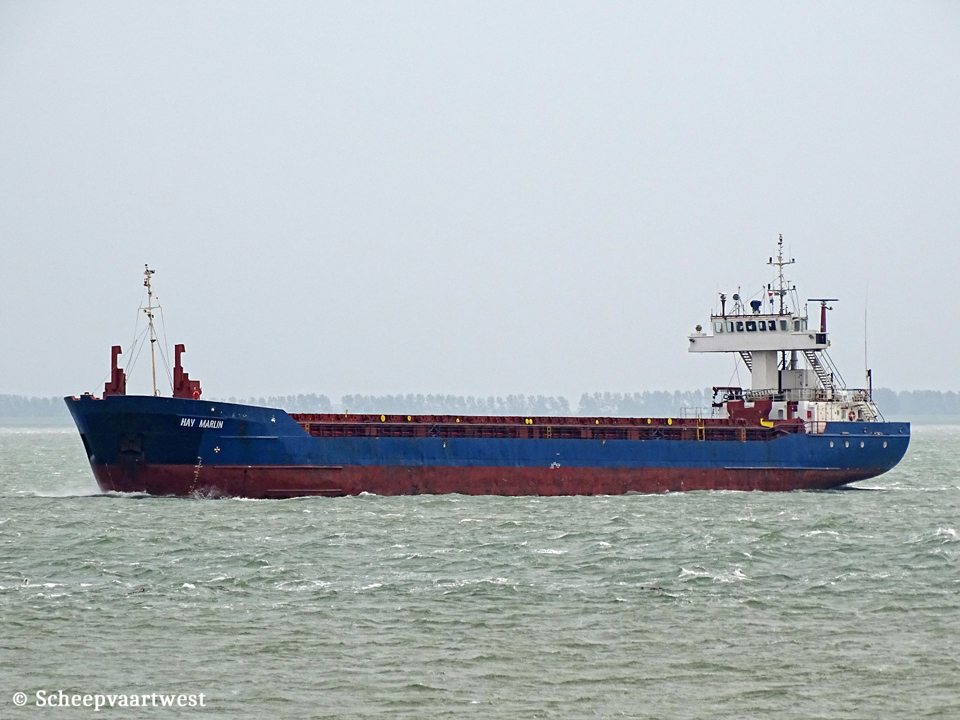

| Westerschelde 10 May 2020 |
|
Name |
HAV MARLIN |
|
Previous names |
1993 - 10/1995 Sandwater 10/1995 - 12/1996 Oxelosund 12/1996 - 01/1997 Oxeloesund 01/1997 - 03/2003 Sandwater 03/2003 - 07/2013 Juan Diego 07 2013 - 2019 San Diego |
|
Type |
General dry cargo ship - Equipped for carriage of containers - Strengthened for heavy cargo |
|
IMO-number |
9006954 |
|
Call sign |
V2QU9 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. John’s |
|
Previous flags |
Cyprus, Limassol - Call sign: P3CS9 Poland, Gdansk - Call sign: SNNE |
|
GT |
1.960 |
|
DWT |
Summer: 3.036 t |
|
NT |
979 t |
|
Number of 20ft containers |
154 |
|
Length |
88,16 m overall 84,72 m between perpendiculars |
|
Breadth |
12,50 m extreme |
|
Draught |
Summer: 4,64 m |
|
Depth |
6,50 m |
|
Speed |
Max: 11,6 knots |
|
Built |
1993 |
|
Keel laid |
08/07/1990 |
|
Launch date |
17/03/1991 |
|
Date of completion |
30/06/1993 |
|
Builder |
Scheepswerf Damen BV Gorinchem The Netherlands |
|
Yard number |
8216 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Single hull partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
4 |
|
Number of decks |
2 |
|
Main engine |
1x Deutz MWM SBV8M628 - 8 cylinder 240 x 280 mm combustion engine 1.500 kW at 900 rpm |
|
Propellers |
1x Fixed pitch propeller - aft at 230,0 rpm |
|
Electric installations |
1x Plant 380/ 220 V - 100 kVA 1x Plant 380/ 220 V - 100 kVA 1x Plant 380 V - 63 kVA |
|
Generators |
2x Caterpillar 3304 DINA main diesel generatorsets each 100 kVA |
|
Emergency generator |
1x Diesel generatorset 63 kVA |
|
Compressed air receivers |
2x Receivers each: 125 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 220 kW, forward |
|
Cargo hold capacity |
4.006 m³ |
|
Tank capacities |
Ballast: 1.467 m³ |
|
Anchor equipment |
Length: 412,50 m Diameter: 34 mm |
|
ISM & commercial manager |
HAV Ship Management NorRus AS |
|
Registered owner |
Hav Bulk AS Filipstadveien 5 0250 Oslo Norway |
|
Latest data adjustment |
10 February 2022 |
