Malaga, Spain 08 March 2021 |
|
Name |

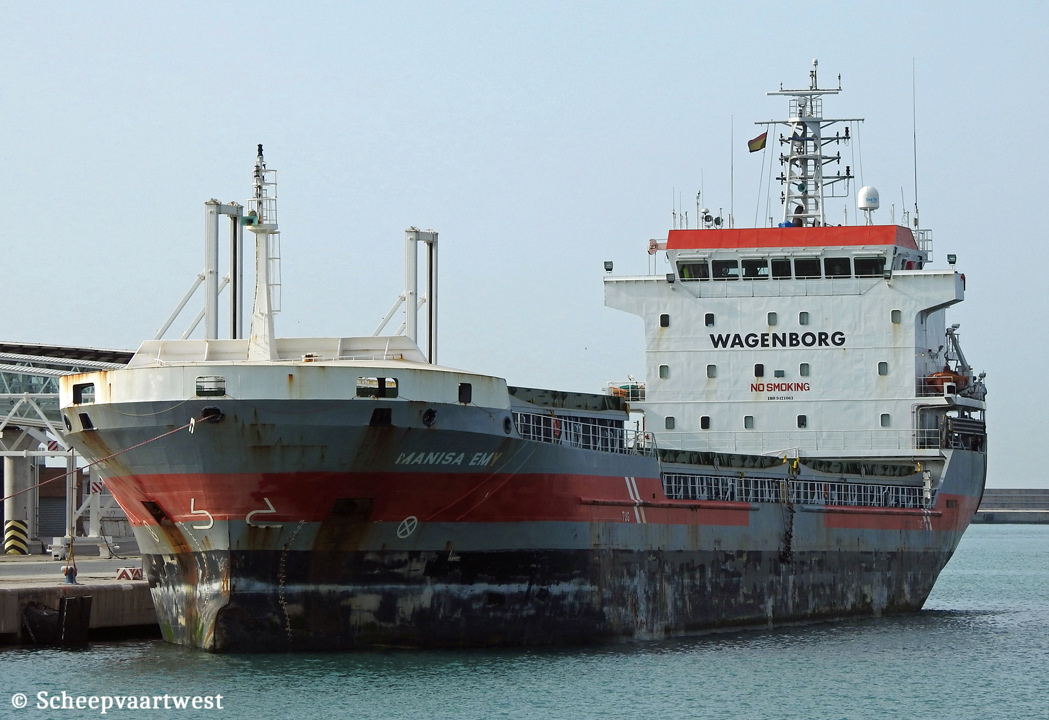

MANISA EMY |
|
Previous names |
04/2008 - 11/2016 Leuvediep 11/2016 - 03/2018 Leuveborg |
|
Type |
Multi-Purpose dry cargo - Open hatch, box shaped, double skinned, Single-decker |
|
IMO-number |
9421063 |
|
Call sign |
PBYR |
|
Flag |
The Netherlands |
|
Port of registry |
Delfzijl |
|
Previous flags |
04/2008 - 07/2011 the Netherlands, Groningen - Call sign: PHNQ 07/2011 - 11/2016 Liberia, Monrovia - Call sign: A8ZO5 |
|
GT |
5.598 t |
|
DWT |
8.117 t |
|
DWCC |
Summer: 7.700 t |
|
NT |
2.883 t |
|
Length |
108,24 m overall 103,90 m between perpendiculars |
|
Breadth |
18,21 m moulded |
|
Draught |
Summer: 7,01 m Winter: 8,86 m |
|
Air draft |
28,50 m in ballast |
|
Freeboard |
2.005 mm |
|
Depth |
9,00 m moulded |
|
Speed |
12,0 knots |
|
Built |
2008 |
|
Keel laid |
29/10/2006 |
|
Launch date |
09/10/2007 |
|
Date of completion |
06/08/2008 |
|
Builder |
Nanjing Huatai Shipbuilding Co., Ltd. Rongcheng China |
|
Yard number |
YT05-4-03 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 6M32 - 4 stroke single acting 6 cylinder 320 x 480 mm combustion engine 3.000 kW / 4.087 bhp at 600 rpm Build: 19/06/2007 Manufacturer: M.A.K. Caterpillar Motoren GmbH., Kiel - Germany |
|
Propellers |
1x Screw propeller controllable pitch - aft at 208 rpm |
|
Boilers |
1x CHF Aalborg Industries 78,70 m² - 6,0 bar |
|
Generators |
2x Main diesel generatorsets each 331 kVA - 265 kW - 380 hp |
|
Emergency generator |
1x Diesel generatorset 331 kVA - 265 kW - 425 hp |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
3 Hold 1: 17,50 x 15,20 x 11,40 m Hold 2: 25,90 x 15,20 x 9,20 m Hold 3: 25,20 x 15,20 x 9,20 m |
|
Total capacity of holds |
Grain/bale Hold 1: 95.844 ft³ Hold 2: 137.837 ft³ Hold 3: 130.984 ft³t Total: 10.291,5 m³ / 364.665 ft³ |
|
Hold ventilation |
Electrical ventilation: Abt. 6 air changes per hour basis empty hold Holds are fitted with dehumidifier system |
|
Number of hatches |
3 Hatch 1: 17,50 x 15,20 m Hatch 2: 25,90 x 15,20 m Hatch 3: 25,20 x 15,20 m |
|
Hatch type |
Hydraulic Mcgregor folding type |
|
Max permitted loads |
Tanktop: 15,0 t/m² Weatherdeck: #1: 2,20 t/m² #2: 3,50 t/m² #3: 3,50 t/m² Including 8 heavy load points for point loads upto 60 t/m² |
|
Tank capacities |
HFO: 293 m³ MGO: 69 m³ Water ballast: 2.200 m³ Fresh water: 100 m³ |
|
Crew |
11 |
|
Manager |
Wagenborg Shipping B.V. Marktstraat 10, 9934 KK Delfzijl The Netherlands |
|
Previous managers |
04/2008 - 11/2016 Feederlines B.V., Groningen - The Netherlands |
|
Registered owner |
Leuveborg B.V. Delfzijl, Groningen The Netherlands |
|
Previous names & owners |
04/2008 - 11/2016 Leuvediep - B.V. Beheermaatschappij Leuvediep, Groningen - The Netherlands 11/2016 - 03/2018 Leuveborg - Leuveborg B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
15 March 2021 |
