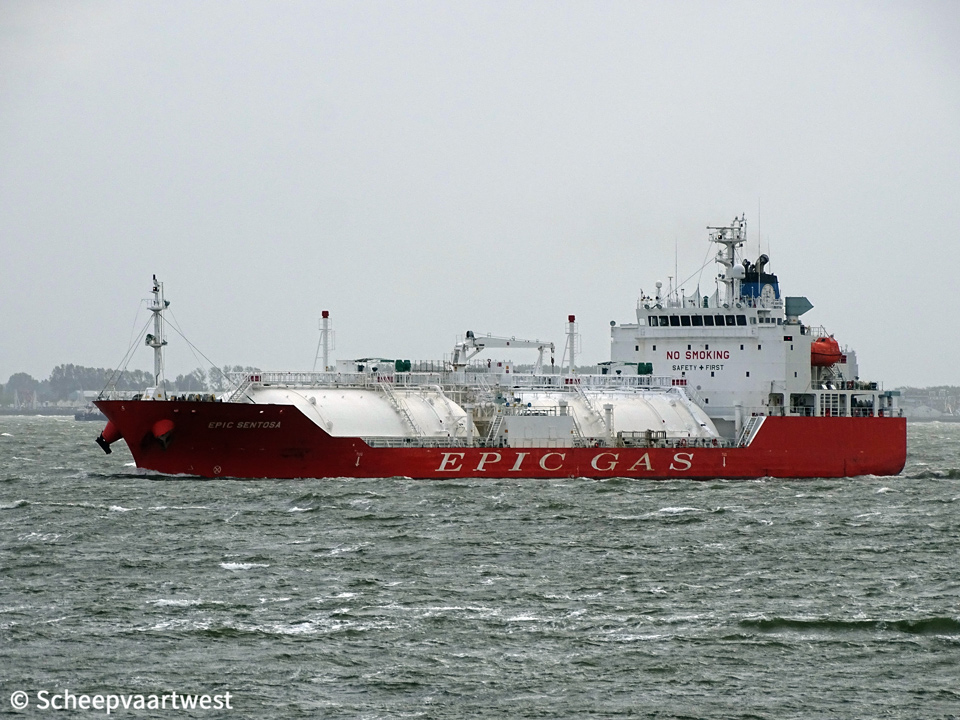

Epic Sentosa 01

Westerschelde 27 April 2019

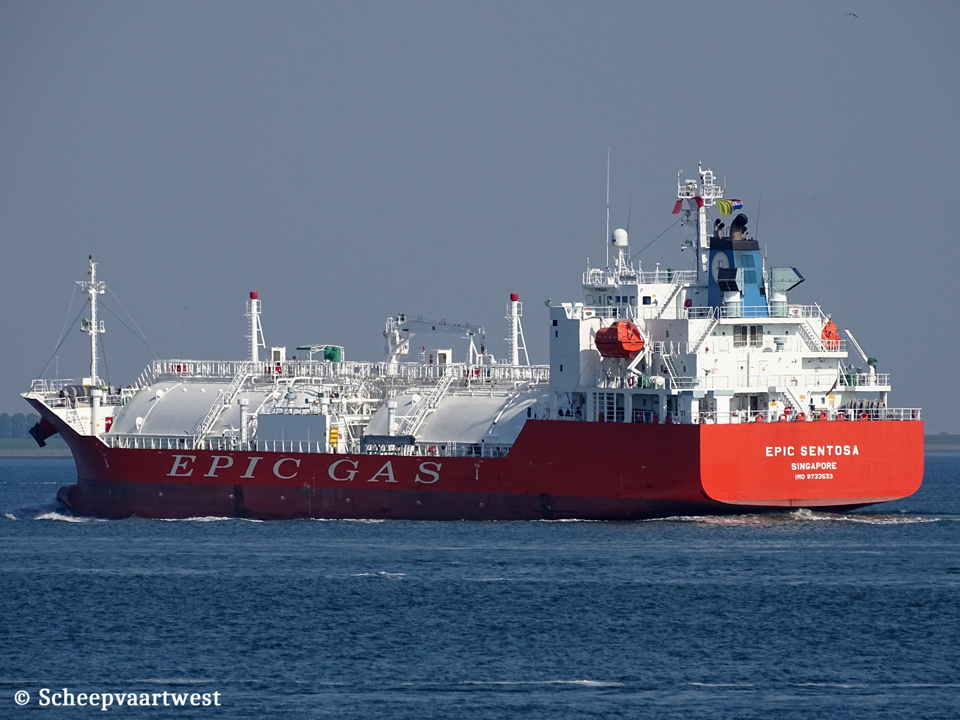

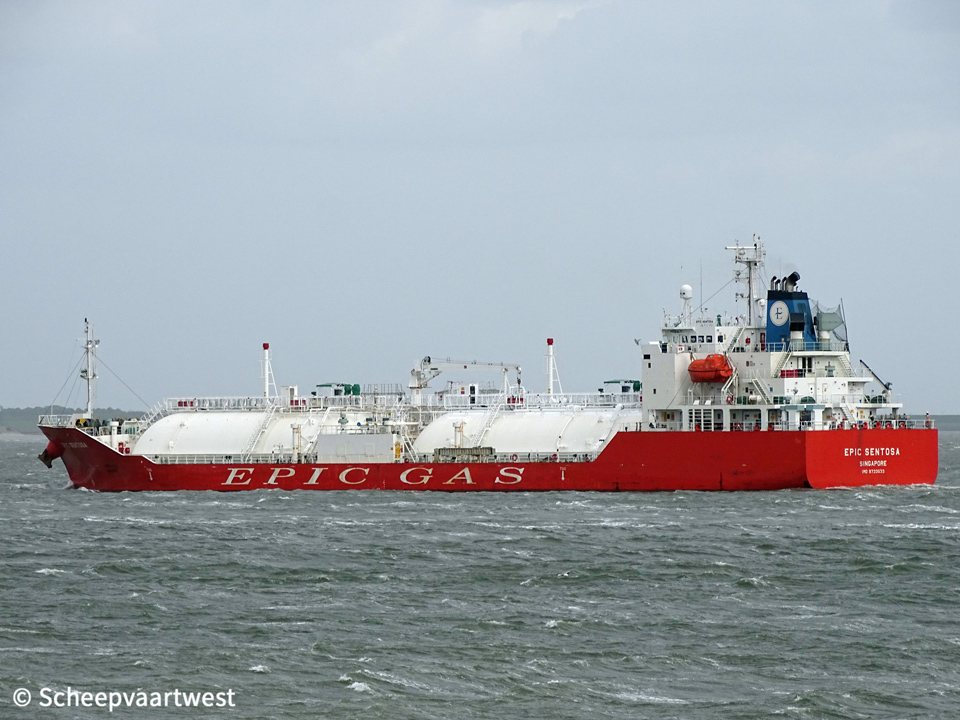

Epic Sentosa 02   Epic Sentosa IMO 9733533 03
Westerschelde 27/04/19   Westerschelde 10/05/17


Name

EPIC SENTOSA

Type

Liquefied petroleum gas carrier with independent tank - LPG

IMO-number

9733533

Call sign

9V2720

Flag

Republic of Singapore

Port of registry

Singapore City

GT

8.319 t registered

Suez: 9.696,37 t

DWT

9.052 t

NT

2.940 t registered

Panama: 7.034,53 t

Suez: 8.167,61 t

Length

119,98 m overall

114,00 m between perpendiculars

Breadth

21,00 m moulded

Draught

Max: 7,30 m

Keel to mast end

33,95 m

Freeboard

2.716 t

Depth

10,00 m moulded

Speed

15,0 knots

Built

2016

Keel laid

15/07/2015

Launch date

26/10/2015

Delivery date

09/03/2016

Builder

Kyokuyo Shipbuilding & Iron Works

Shimonoseki

Japan

Yard number

523

Hull material

High strength steel

Hull type

Double side

Watertight bulkheads

5

Main engine

1x Hitachi/MAN-B&W 6S35ME-B9.3 - 2 stroke 6 cylinder 350 x 1.550 mm combustion engine 5.220 kW / 7.097 hp at 167,0 rpm

Manufacturer: Imex Co., Ltd.

Propellers

1x Fixed pitch propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Composite boiler - 6,9 bar

Manufacturer: Miura Co., Ltd.

Generators

3x Main diesel generatorsets each 480 kW

Manufacturer: Taiyo Electric Co., Ltd.

Bow thruster

1x 541 kW

Number of cargo tanks

2

Cargo tank capacity

11.000 m³

Number of pumps

2x Cargo pumps each 300 m³/h

Min temperature

-10°C

Max pressure

17,7 bar

Number of tanks

Ballast: 19

Fuel oil: 10

Lubricating oil: 9

Sludge: 6

Diesel oil: 5

Fresh water: 4

Waste water: 3

Chain: 2

Tank capacities 100%

Diesel oil: 181,38 m³

Freshwater: 195,49 m³

Fuel oil: 731,65 m³

Lube oil: 51,00 m³

Tank ballast: 3.527,51 m³

Lifting equipment

1x Hose handling crane - SWL 5,0 t

Manufacturer: Kyoritsu Kikai Co., Ltd.

1x Provision crane - SWL 1,0 t

Manufacturer: Okamoto Iron Works Co., Ltd.

Manager

Epic Pantheon International Gas Shipping

Republic of Singapore

Operator

Epic Ship Management Pte. Ltd.

Registered owner

Epic Sentosa Pte Ltd.

8 Eu Tong Sen Street #22-89, The Central

Singapore, 059818

Republic of Singapore

Latest data adjustment

07 November 2022
