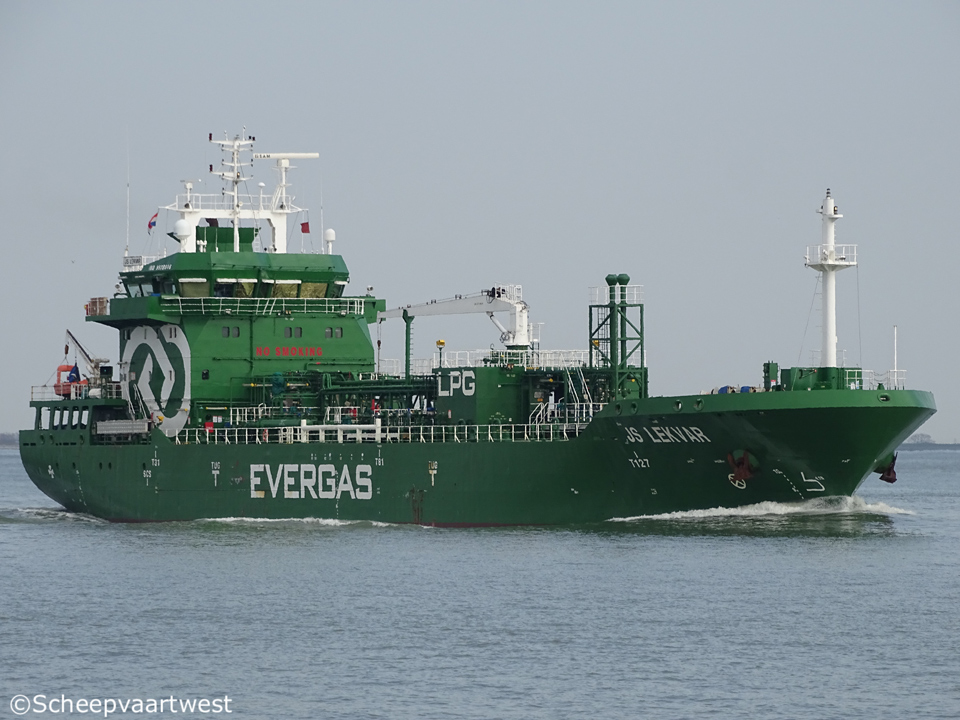

JS Lekvar 02

Westerschelde 07 April 2018

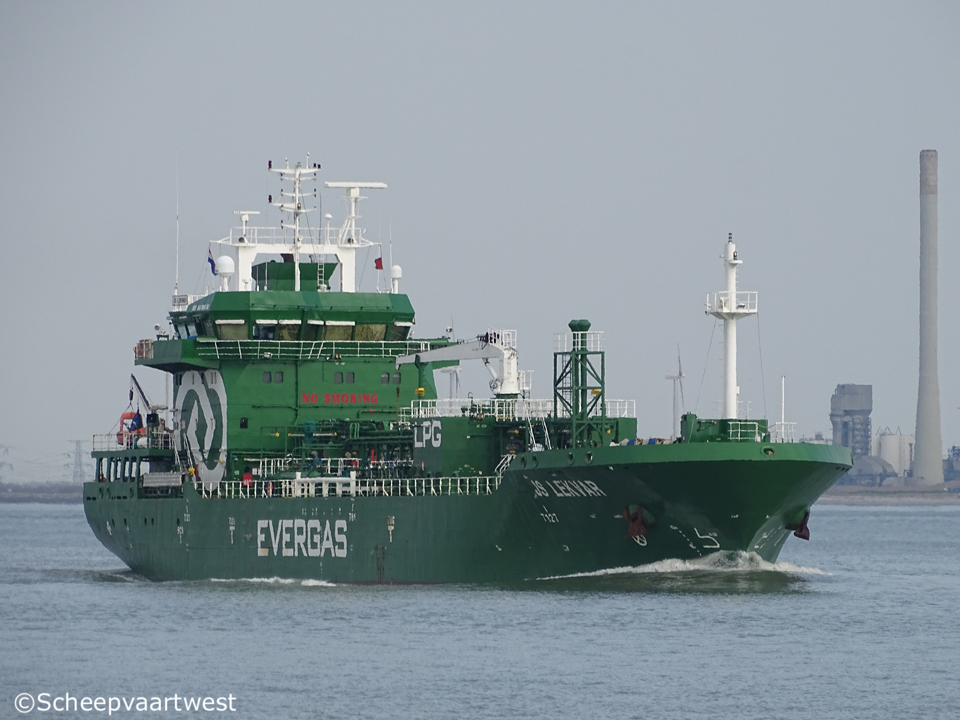

JS Lekvar 01
Westerschelde 07/04/18



Name

JS LEKVAR

Type

Liquefied gas tanker - Fully pressurized LPG

Main products

Propane, Butylene, Butane, VCM, Propane/Butane, P.O., Propylene, Isopropylamine, Butadiene

IMO-number

9578036

Call sign

9V9997

Flag

Republic of Singapore

Port of registry

Singapore City

GT

5.036 t

DWT

Summer: 4.994 t

NT

1.511 t

Suez: 4.447 t

Panama: 4.319 t

Displacement

Light displacement: 3.426 t

Loaded displacement (Summer deadweight): 8.420 t

Length

99,85 m overall

92,43 m between perpendiculars

Breadth

17,41 m extreme

Draught

Summer: 7,06 m

Air draft

27,50 m normal ballast condition

Keel to highest point

32,45 m

Distance bow to bridge

80,00 m

Freeboard

4.652 mm

Depth

11,70 m extreme

Speed

Service: 13,0 knots

Built

2013

Date of completion

09/01/2013

Builder

Nantong Sinopacific Offshore & Engineering
Qidong
China

Yard number

DJ1005

Hull material

Mild steel

Hull type

Double bottom

Main engine

1x MAN 6L32/40CD - 4 stroke 6 cylinder 320 x 400 mm combustion engine 3.000 kW / 4.076 hp at 750 rpm

Built: 09/2011

Manufacturer: MAN Diesel & Turbo SE, Augsburg - Germany

Propellers

1x Paddle wheel controllable pitch aft at 147 rpm

Boilers

1x CHR 12,00 m² - 10,0 bar
1x CHO 12,00 m² - 10,0 bar

Shaft generator

1x 400 kW / 500 kVA

Generators

2x Volvo Penta D16 main diesel generatorsets each 425 kW at 1.800 rpm

Emergency generator

1x Diesel generatorset 385 kW at 1.800 rpm

Bow thruster

1x Schottel tunnel thruster output 250 kW

Number of cargo tanks

2

1x Cylindrical

1x Bilobe

Cargo tank capacity

100%:

Tank 1: 1.788 m³

Tank 2: 3.221 m³

Total: 5.010 m³

98%:

Tank 1: 1.752,24 m³

Tank 2: 3.156,58 m³

Total: 4.909,80 m³

Max. tank pressure

18,6 bar

Min. design temperature

-10°C

Pumps

3x Svanehoj deepwell cargo pumps 150 m³/h

2x Centrifugal ballast pumps each 100 m³/h

Manifolds

Distance bridge front - mid point manifold: 27,60 m

Distance bow to mid-point manifold: 44,90 m

Tank capacities

IFO 380: 686 m³

MDO: 176 m³

Fresh water: 218 m³

Water ballast: 1.929 m³

Anchor equipment

1x Hose handling crane - SWL 4,0 t

Outreach: 16,50 m

Crew size

16

Technical manager

Hartmann Gas Carriers GmbH & Co. KG
Königstraße 23
26789 Leer
Germany

Commercial operator

Evergas

Owner

Marina Mercury Shipping Pte Ltd.

Latest data adjustment

26 September 2018
