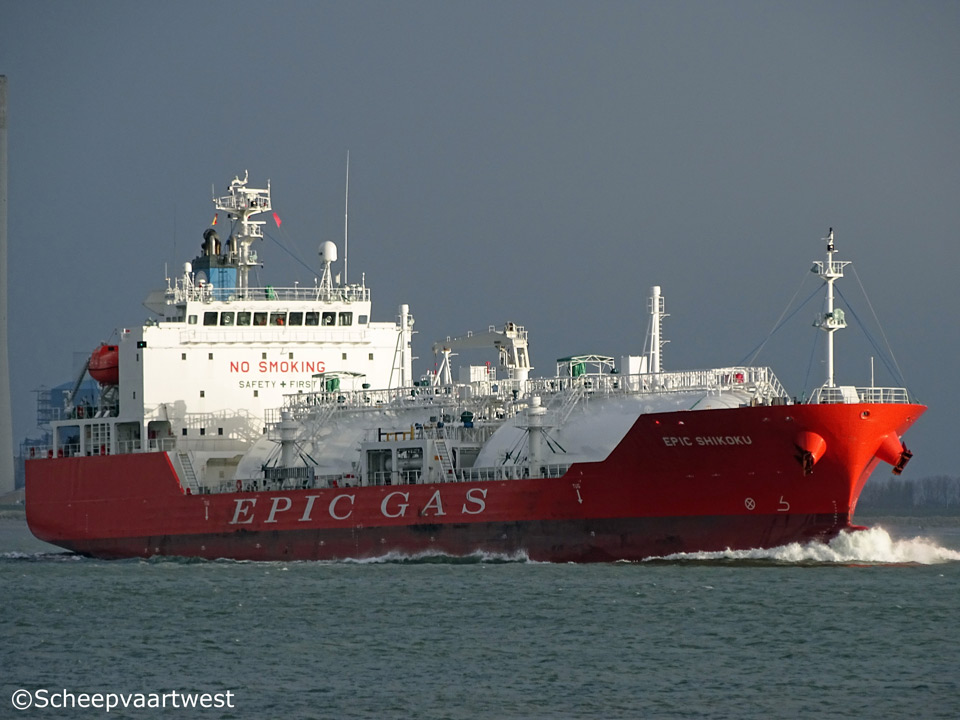

Epic Shikoku 01

Westerschelde 04 January 2017



Name

EPIC SHIKOKU

Type

Liquefied petroleum gas carrier with independent tank

IMO-number

9733545

Call sign

9V2721

Flag

Republic of Singapore

Port of registry

Singapore City

GT

8.319 t registered

Suez: 9.696,37 t

DWT

8.983 t

NT

2.940 t registered

Panama: 7.034,53 t

Suez: 8.164,61 t

Length

119,98 m overall

114,00 m between perpendiculars

Breadth

21,00 m moulded

Draught

6,70 m

Freeboard

2.716 mm

Depth

10,00 m moulded

Speed

15,0 knots

Built

2016

Keel laid

17.09.2015

Launch date

24.12.2015

Date of completion

13.05.2016

Builder

Kyokuyo Shipbuilding & Iron Works
Shimonoseki
Japan

Yard number

524

Hull material

High strength steel

Ordinary strength steel

Hull type

Double hull

Watertight bulkheads

5

Main engine

1x Hitachi/MAN B&W 6S35ME-B9.3 - 2 stroke 6 cylinder 350 x 1.550 mm diesel engine 5.220 kW at 167 rpm

Manufacturer: Imex Co., Ltd.

Propellers

1x Fixed propeller

Manufacturer: Nakashima Propeller Co., Ltd.

Boilers

1x Composite boiler - 6,9 bar

Manufacturer: Miura Co., Ltd.

Generators

3x Main diesel generatorsets each 480 kW

Manufacturer: Taiyo Electric Co., Ltd.

Number of cargo tanks

2x Cylindrical horizontal

Cargo tank capacity

Liquid: 11.000 m³

Minimum cargo temp

-10°C

Maximum cargo pressure

17,7 bar

Number of tanks

Ballast: 19

Fuel oil: 10

Lubricating oil: 9

Sludge: 6

Diesel oil: 5

Fresh water: 4

Waste water: 3

Chain: 2

Tank capacities 100%

Diesel Oil: 181,38 m³ / 163,24 t

Freshwater: 195,49 m³

Fuel Oil: 731,65 m³ / 717,01 t

Lube Oil: 51,00 m³

Tank Ballast: 3.527,51 m³ / 3.615,69 t

Lifting equipment

1x Hose handling crane - SWL 5,0 t

Manufacture: Kyoritsu Kikai Co., Ltd.

1x Provision crane - SWL 1,0 t

Manufacture: Okamoto Iron Works Co., Ltd.

Manager

EPIC Pantheon International Gas Shipping -
Singapore
Republic of Singapore

Operator

Epic Ship Management Pte. Ltd.
8 Eu Tong Sen Street#22-89 The Central
059818, Singapore
Republic of Singapore

Registered owner

Epic Shikoku Pte. Ltd.

Latest data adjustment

27 March 2017
