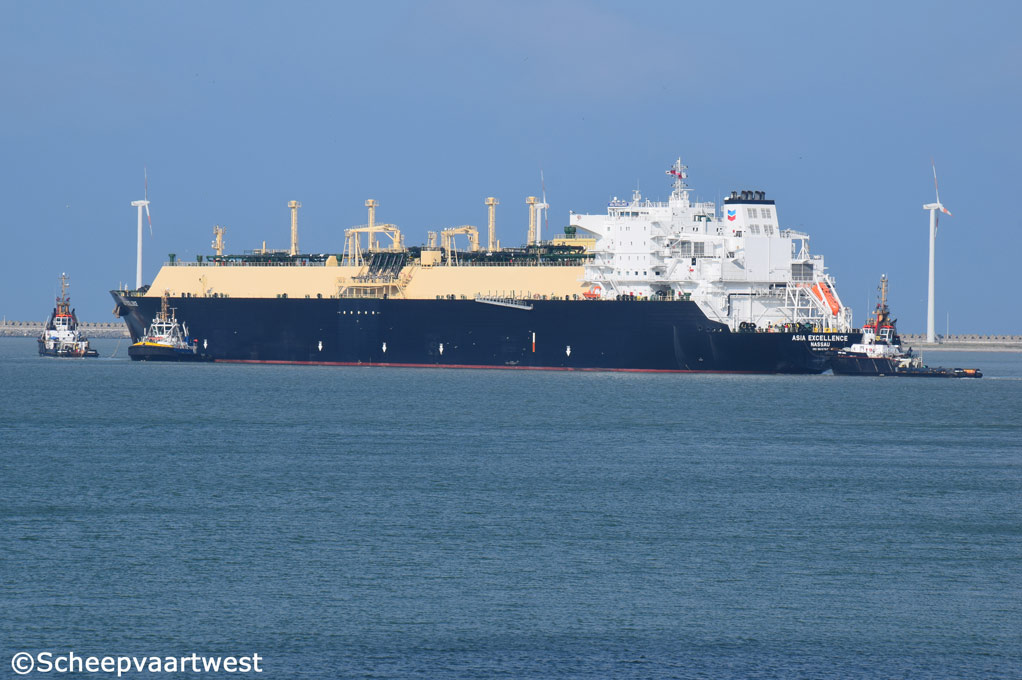

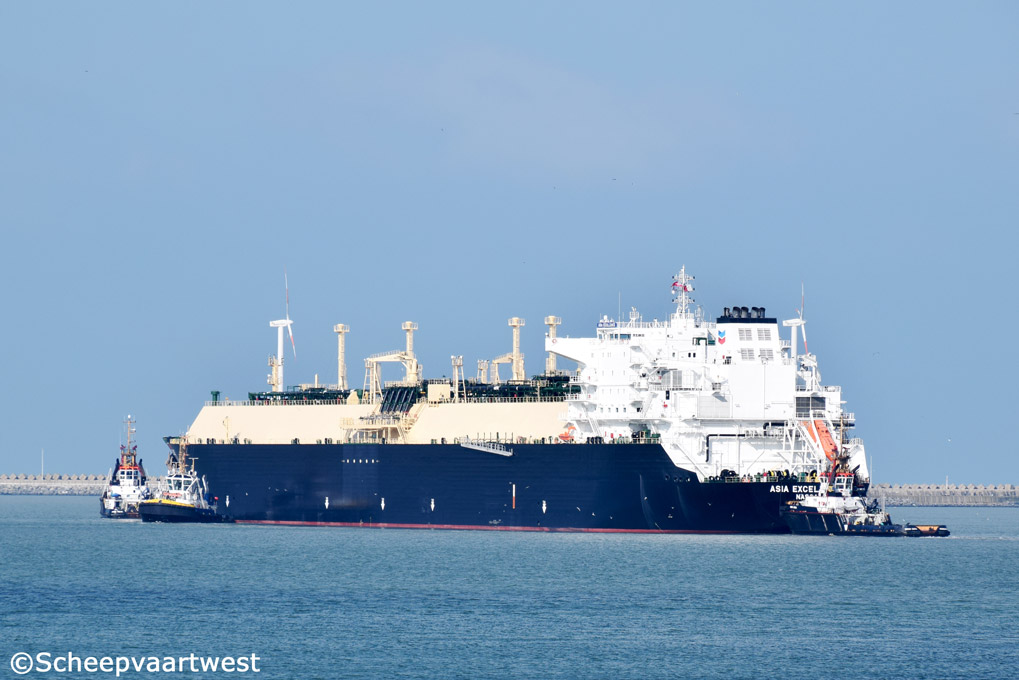

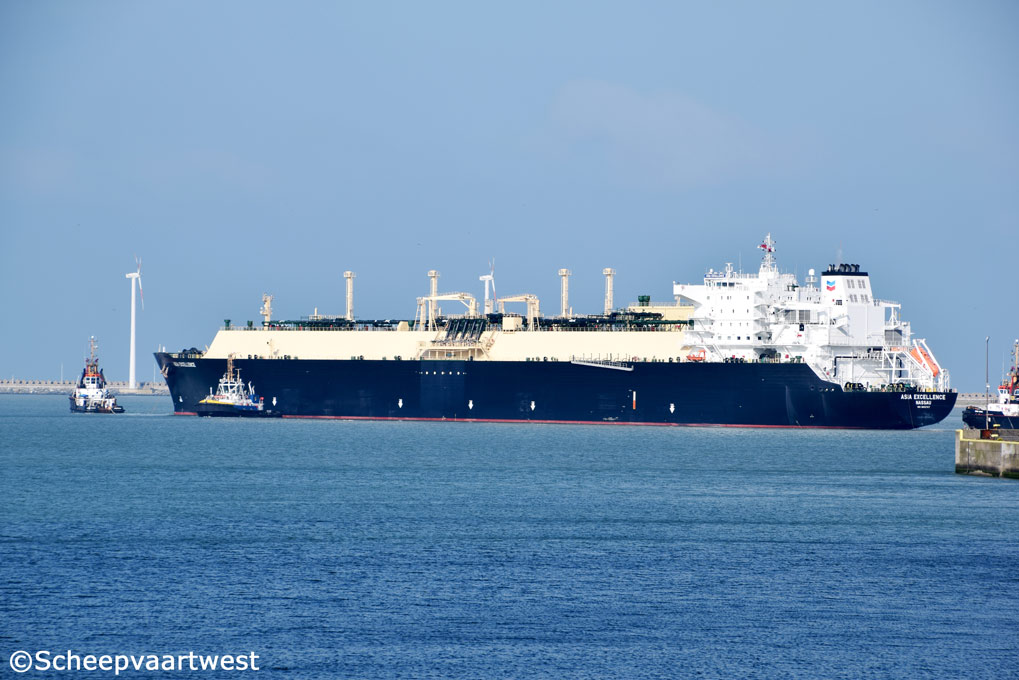

Zeebrugge 10 October 2015 |
 |
 |
|
| Zeebrugge 10/10/15 | Zebrugge 10/10/15 |
|
Name |
ASIA EXCELLENCE |
|
Type |
Membrane tank liquefied gas carrier |
|
IMO-number |
9610767 |
|
Call sign |
C6AX5 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
101.427 t registered Suez: 104.823,03 t |
|
DWT |
Summer: 82.487,3 t |
|
NT |
32.639 t registered Panama: 99.575 t Suez: 92.529,04 t |
|
Displacement |
Summer: 113.061,10 t |
|
Length |
285,35 m overall 274,00 m between perpendiculars |
|
Breadth |
43,40 m moulded |
|
Draught |
Summer: 12,13 m |
|
Freeboard |
Summer: 7.667 mm |
|
Depth |
26,40 m |
|
Speed |
19,0 knots |
|
Built |
2005 |
|
Keel laid |
02.12.2013 |
|
Launch date |
25.01.2014 |
|
Delivery date |
20.01.2015 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co. Ltd. |
|
Yard number |
1941 |
|
Hull material |
Forged steel Ordinary strength steel High strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 19 Oil tight: 2 |
|
Propulsion |
2x Electric motors for propulsion AMZ 1120MS08 LSF each 12.650 kW Manufacturer: ABB OY Motors and Generators/Helsinki Purchase INV. |
|
Propellers |
2x Fixed pitch propeller |
|
Boilers |
4x Process piping for exhaust gas economizer - Aalborg XS-7V 1.5t/h 15,0 bar 2x Process piping for auxiliary boiler - Aalborg OS 12,0 bar Manufacturer: Alfa Laval Qingdao Ltd. |
|
Cargo tank capacity |
160.000 m³ |
|
Min. cargo temperature |
-163°C |
|
Maximum cargo pressure |
0,25 bar |
|
Number of tanks |
Ballast: 14 Lubricating oil: 10 Fuel oil: 10 Fresh water: 5 Diesel oil: 4 Waste water: 3 Sludge: 3 Chain: 2 |
|
Tank capacities |
Diesel Oil: 1.490,2 m³ / 1.341,18 t Freshwater: 522,6 m³ Fuel Oil: 4.870,3 m³ / 4.772,89 t Lube Oil: 409,6 m³ / 368,64 t Tank Ballast: 54.975,9 m³ / 56.350,29 t |
|
Lifting equipment |
1x Cargo machinery room crane - SWL 5,0 t 2x Engine room crane - SWL 2,0 t 2x Hose handling crane - SWL 10,0 t 2x Provision crane - SWL 10,0 t Manufacture: Oriental Prec & Eng'G Co. |
|
Crew |
30 |
|
Manager |
Chevron Transport Corporation Ltd. |
|
Operator |
Chevron Shipping LLC |
|
Registered owner |
Chevron Transport Corporation Ltd. |
|
Latest data adjustment |
13 November 2015 |
