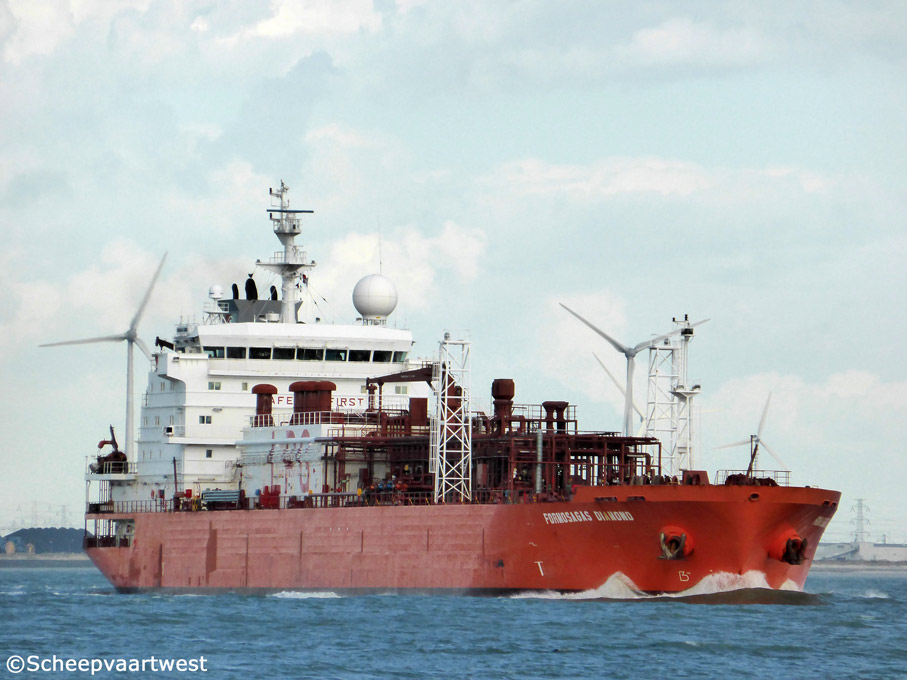

Formosagas Diamond 01

Westerschelde 08 April 2014

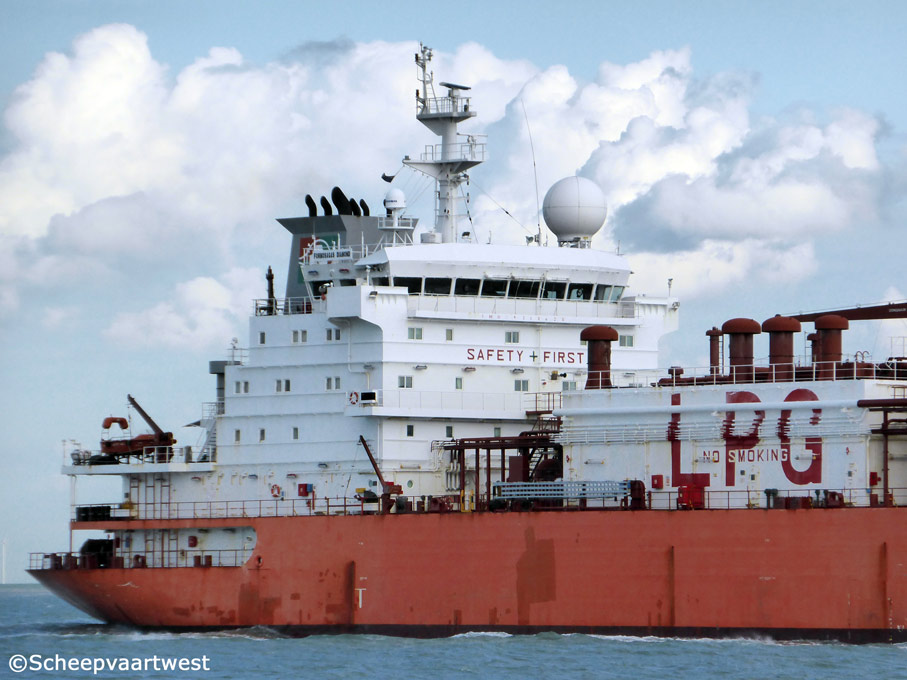

Formosagas Diamond 02
Westerschelde 08/04/14



Name

FORMOSAGAS DIAMOND

Type

Liquefied gas carrier

IMO-number

9318620

Call sign

A8II6

Flag

Liberia

Port of registry

Monrovia

GT

15.175 t

Suez: 16.151,73 t

DWT

Summer: 17.659,3 t

NT

4.772 t

Suez: 12.833,3 t

Displacement

Summer: 25.695,9 t

Length

153,50 m overall

145,97 m between perpendiculars

Breadth

23,12 m extreme

Draught

Summer: 9,60 m

Keel to masthead

41,65 m

Distance bow to bridge

119,24 m

Freeboard

Summer: 5.814 m

Winter: 6.014 mm

Depth

15,40 m moulded

Speed

16,0 knots

Built

2006

Keel laid

16.05.2005

Launch date

22.09.2005

Date of completion

27.06.2006

Builder

Jiangnan Shipyard Group Co., Ltd.

Linhai
China

Yard number

H2333

Hull material

Steel

Hull type

Double bhull

Main engine

1x MAN-B&W/STX 6S42MC - 2 stroke single acting 6 cylinder diesel engine - 6.480 kW / 8.100 hp at 136,0 rpm

Builder: MAN Diesel & Turbo SE

Propellers

1x Fixed pitch propeller

Boilers

Auxiliary boiler, composite - Mission OC

Builder: Aalborg Industries

Generators

3x MAN 7L23/30H diesel generatorsets

Emergency generator

1x SISU Diesel 645 DSBIG diesel generatorset

Compressed air receivers

2x Air receivers - 30,0 bar

Cargo tank capacity 98%

Centre tank 1: 2.510,22 m³

Centre tank 2: 2.805,48 m³

Centre tank 3: 2.805,49 m³

Wings (P & S combined) 1 :2.516,71 m³

Wings (P & S combined) 2: 2.806,57 m³

Wings (P & S combined) 3: 805,92 m³

Centre tank total capacity: 8.121,19 m³

Wings (P & S combined) total capacity: 8.129,2 m³

Centre tank total capacity: 8.121,19 m³

Wings (P & S combined) total capacity: 8.129,2 m³

8Grand total capacity: 16.250,39 m³

Min. temperature

-104°C

Manifolds

Distance bridge front - mid point manifold: 50,99 m

Distance bow to mid-point manifold: 68,25 m

Distance stern to mid-point manifold: 85,25 m

Tank capacities

Fuel oil: 1.318,2 m³

Diesel oil: 109,4 m³

Ballast: 6.373,5 m³

Anchor equipment

Length: 578,00 m

Diameter: 68 mm

Manager

FPMC - Formosa Plastics Marine Corporation

Taipei
Taiwan

Operator technical

Formosa Plastics Marine Corporation
201,Tung Hwa North. Road
Taipei
Taiwan

Registered owner

AS Formosa Diamond Marine Corp.
80 Broad street
Monrovia
Liberia

Latest data adjustment

09 May 2014
