Jotagas IMO 9131101 13

Westerschelde 13 July 2018

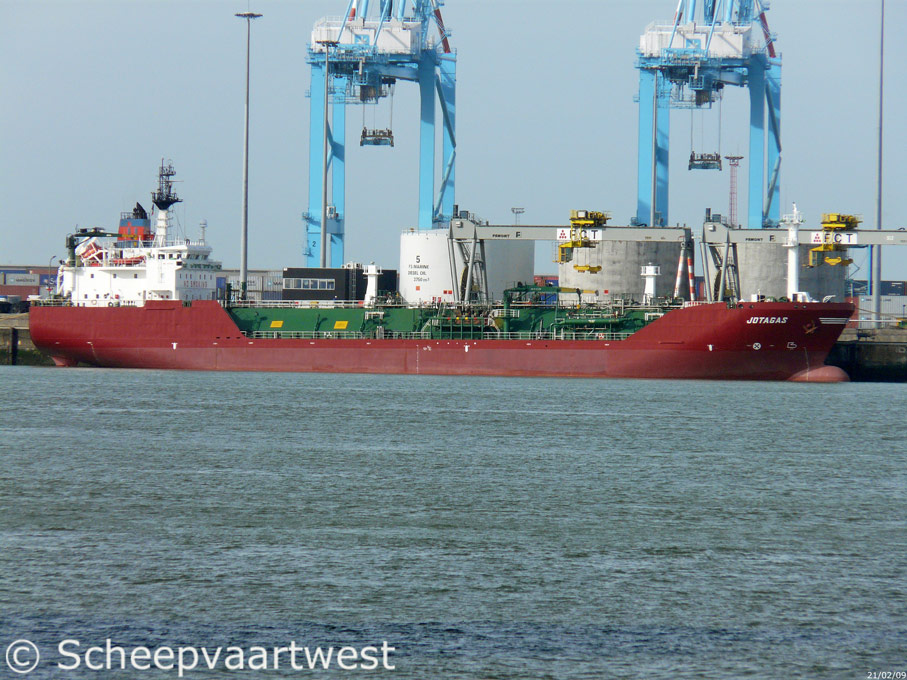

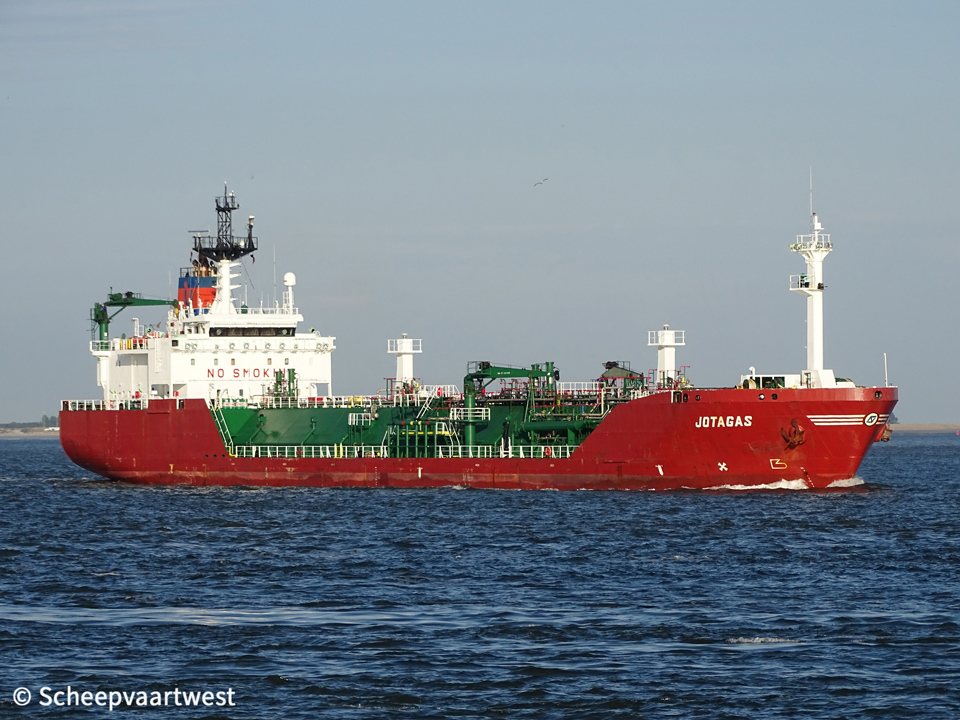

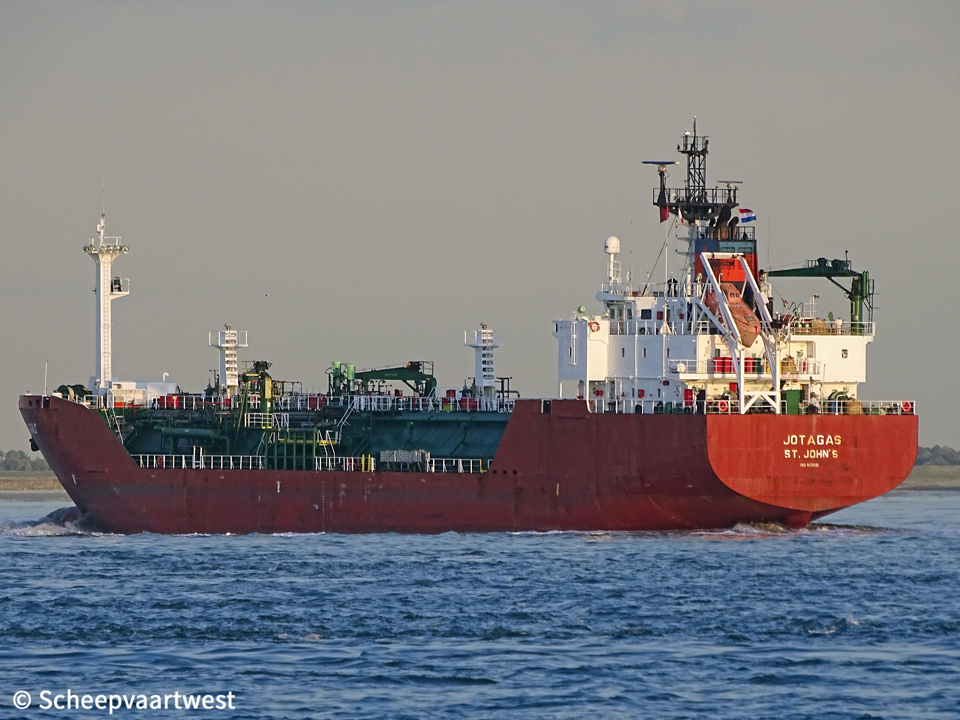

Jotagas 08   Jotagas 03   Jotagas 09   Jotagas IMO 9131101 10   Jotagas IMO 9131101 11   Jotagas IMO 9131101 12
Westerschelde 13/07/18   Zeebrugge 21/02/09 Westerschelde 25/09/18 Westerschelde 26/04/19 Westerschelde 28/07/20   Westerschelde 01/03/19


Name

JOTAGAS

Previous name

1997 - 07/2002 Tarquin Moor

Type

Liquefied gas tanker - LPG

IMO-number

9131101

Call sign

V2MR

Flag

Antigua & Barbuda

Previous flag

1997 - 08/2002 Liberia

Port of registry

St. John's

GT

5.420 t registered

DWT

7.246 t

NT

2.019 t registered

Length

113,60 m overall

106,90 m between perpendiculars

Breadth

16,54 m extreme

Draft

6,17 m

Bow to bridge

92,70 m

Keel to masthead

33,40 m

Freeboard

1.160 mm

Depth

8,75 m

Speed

Service: 13,8 knots

Max: 15,6 knots

Loadline

Deadweight (maximum assigned): 7.246 t

Deadweight (normal ballast): 1.735 t

Deadweight (segregated ballast): 1.735 t

Deadweight (tropical): 7.511 t

Deadweight (winter): 6.964 t

Displacement (lightship): 3.374 t

Displacement (normal ballast): 5.109 t

Displacement (segregated ballast): 5.109 t

Displacement (summer): 10.620 t

Displacement (tropical): 10.885 t

Displacement (winter): 10.338 t

Draft (lightship): 2,87 m

Draft (normal ballast): 4,65 m

Draft (segregated ballast): 4,65 m

Draft (summer): 7,61 m

Draft (tropical): 7,77 m

Draft (winter): 7,45 m

Draught aft (normal ballast): 5,30 m

Draught fore (normal ballast): 4,00 m

Freeboard (lightship): 5,88 m

Freeboard (normal ballast): 4,12 m

Freeboard (segregated ballast): 4,12 m

Freeboard (summer): 1,16 m

Freeboard (tropical): 1,00 m

Freeboard (winter): 1,32 m

FWA (summer draft): 158,0 mm

TPC Immersion (summer draft): 17,23 t

Built

1997

Keel laid

01/10/1996

Launch date

17/01/1997

Date of completed

31/03/1997

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

991

Hull material

Steel

Hull type

Single hull

Watertight compartments

4

Continuous decks

1

Main engine

1x MAN-B&W 6S35MC - 2 stroke 6 cylinder 350 x 1.400 mm combustion engine 4.195 kW / 5.704 hp at 173,0 rpm

Built: 1996

Builder: Hyundai Heavy Industries Ulsan - South Korea

Number of screws

1x Screw propeller controllable pitch - aft at 170 rpm

Boilers

1x CHM 22,00 m² - 10,0 bar

1x CHR 80,00 m² - 10,0 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 50 Hz

Generators

3x MAN 2842LE301 diesel generatorsets each 545 kVA - 436 kW - 717 hp

Emergency generator

1x Cummins 6BT5.9-G diesel generatorset

Bow thruster

1x 300 kW

Cargo tank capacity

Liquid: 7.166 m³

Number of pumps

4x Cargo pumps each 220 m³/h

Number of cargo tanks

2

Cargo capacity

7.312 m³

Minimum temperature

-48°C

Tank capacities

Ballast: 2.001,3 m³

Bunker: 689 t

Fuel oil: 859 m³

Anchor equipment

Length: 495,00 m

Diameter: 44 mm

Crew

16

ISM & commercial manager

Sloman Neptun Schiffahrts-Aktiengesellschaft

Langenstraße 44

28195 Bremen

Germany

Operator

Unigas International B.V.

Grotiushuis, 6th floor

Westblaak 41

3012 KD Rotterdam

The Netherlands

Registered owner

Partenreederei MT "JOTAGAS"

Care of Sloman Neptun Schiffahrts-Aktiengesellschaft

Langenstrasse 44

28195 Bremen

Germany

Renamed

2021 Calypso Gas

Antigua and Barbuda, St. John’s - Call sign: V2YC2

Owner: Gigantic Ozone Energy Ltd. - Hongkong

Commercial manager: Lazar Shipping L.L.C-FZ

ISM manager: OnBoard Ship Management Limited - Hong Kong

Latest data adjustment

30 August 2022
