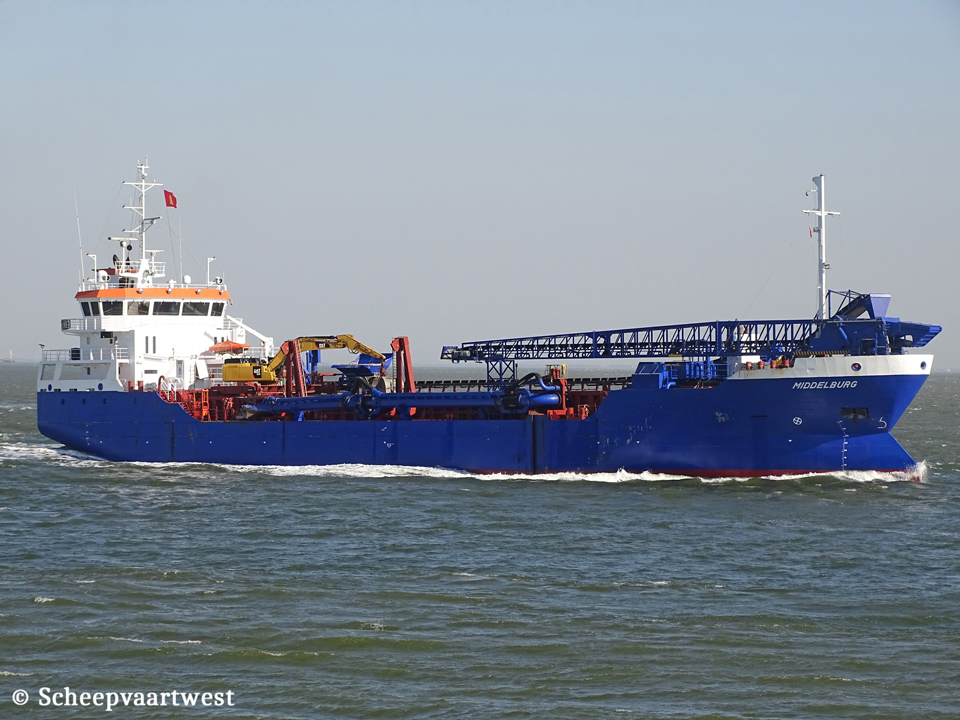

Middelburg IMO 9405370 08

Westerschelde 20 April 2020

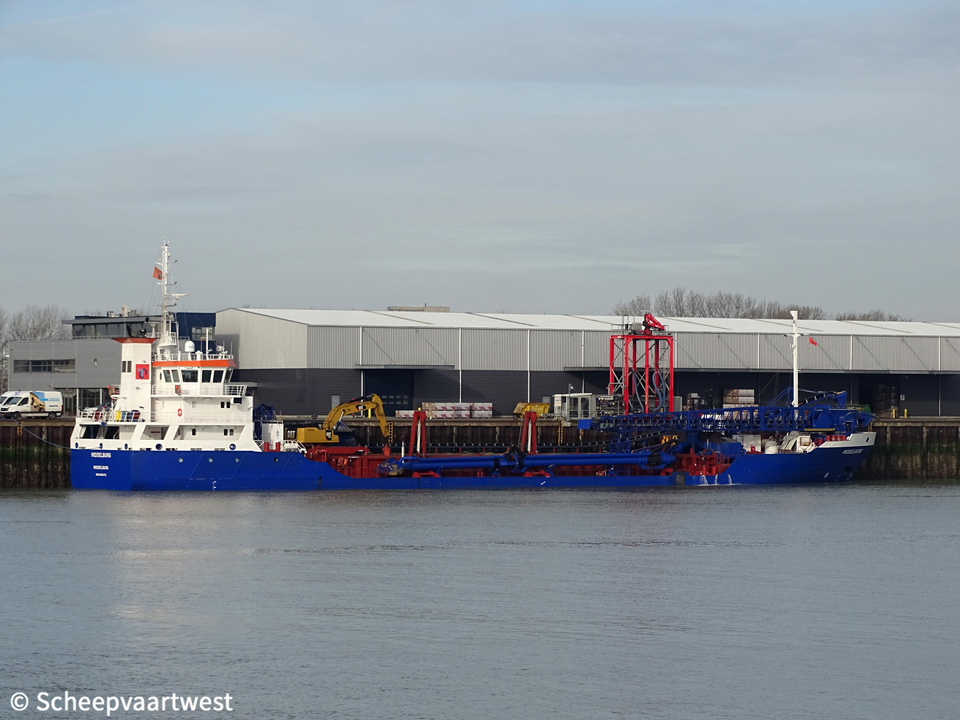

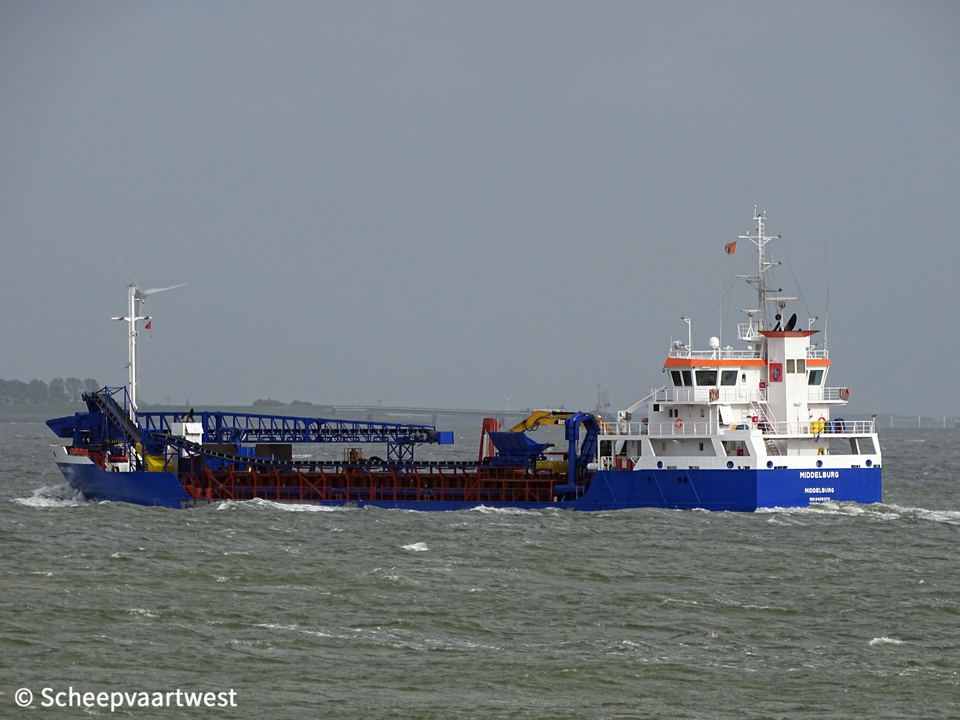

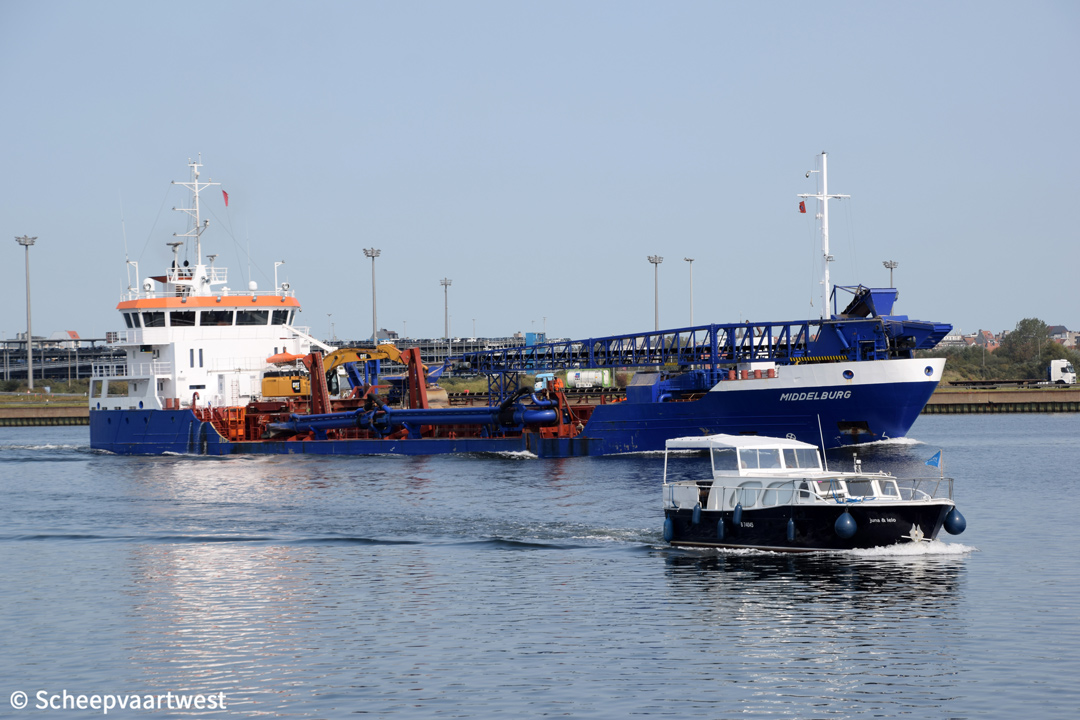

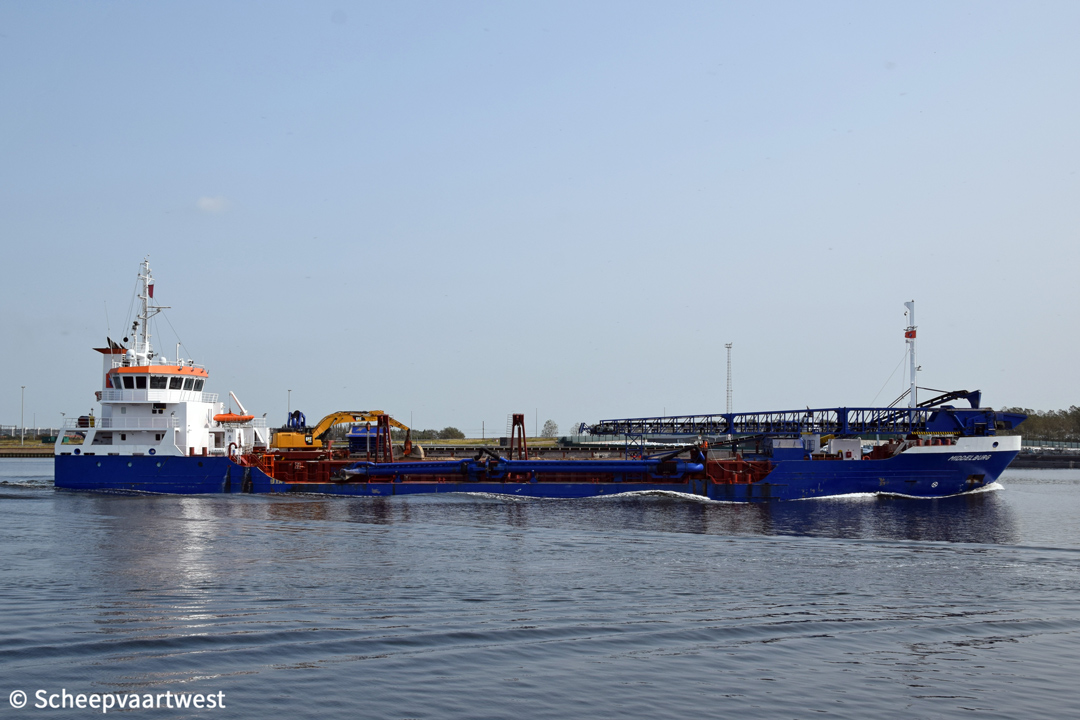

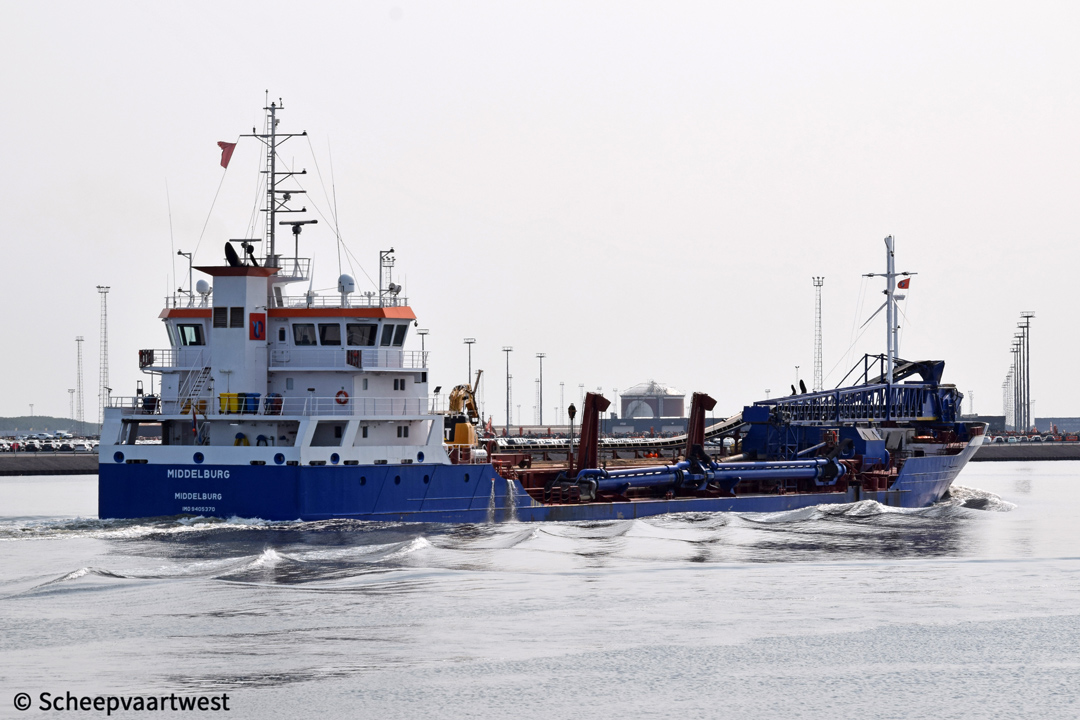

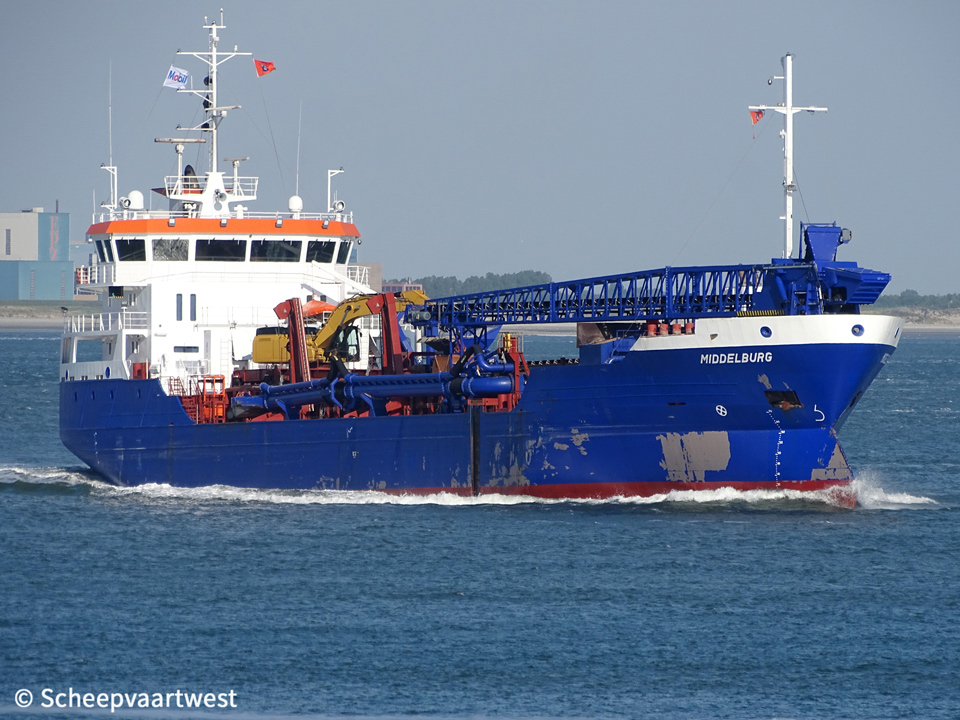

Middelburg 02   Middelburg 01   Middelburg 03   Middelburg 04   Middelburg 06   Middelburg 07
Westerschelde 14/05/19 Vlissingen 20/02/19 Westerschelde 27/04/19 Zeebrugge 11/09/20   Zeebrugge 11/09/20   Zeebrugge 11/09/20

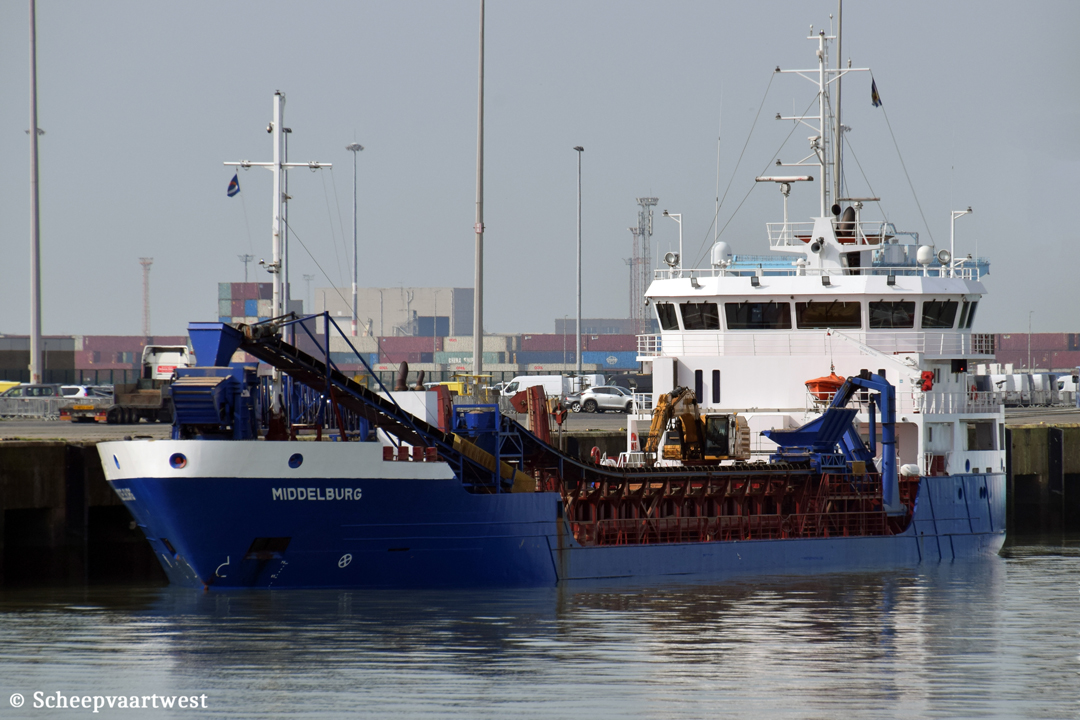

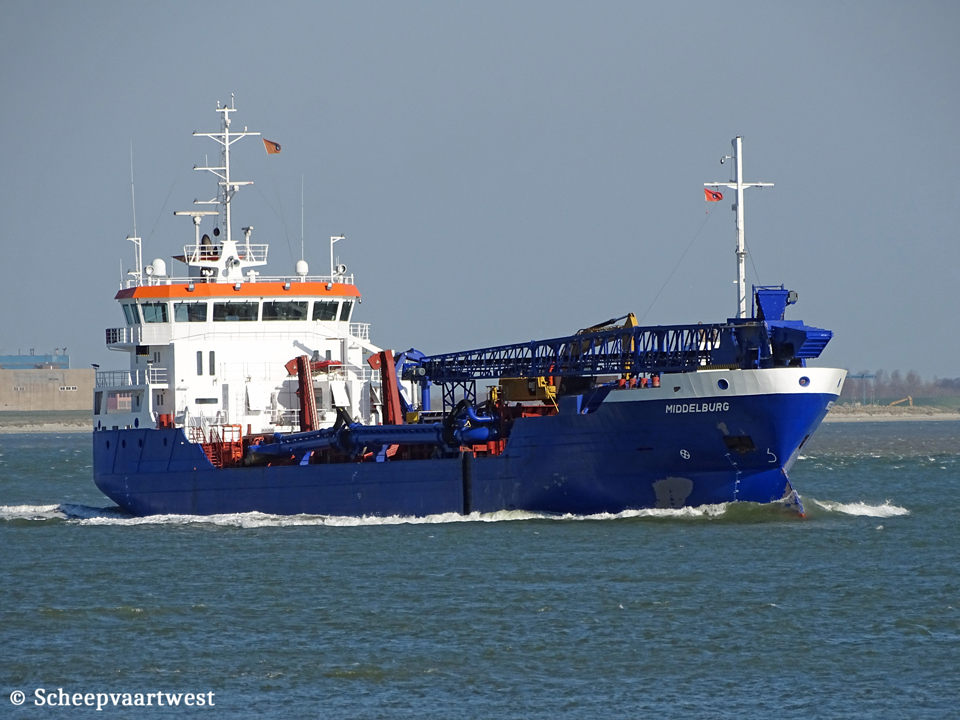

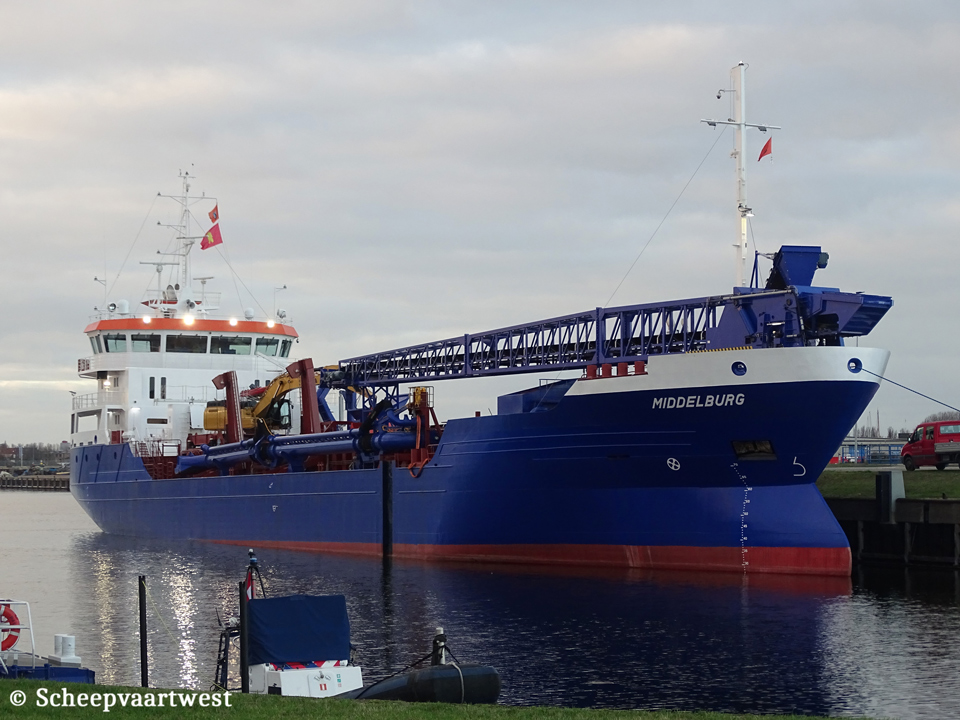

Middelburg IMO 9405370 09   Middelburg IMO 9405370 10   Middelburg IMO 9405370 11
Vlissingen 11/12/18   Westerschelde 10/04/19   Zeebrugge 20/03/24


Name

MIDDELBURG

Previous names

2008 - 10/2008 Maas 12

10/2008 - 05/2012 New Vita

05/2012 - 2017 Louissa Elana

Type

Trailing suction hopper dredger

IMO-number

9405370

Call sign

PBDR

Flag

The Netherlands

Port of registry

Middelburg

Previous flags

Antigua & Barbuda, St. John’s

GT

2.700 t

DWT

3.006 t

NT

810 t

Length

89,89 m overall

84,99 m between perpendiculars

Breadth

14,50 m

Draught

5,45 m

Freeboard

1.865 mm

Depth

7,32 m

Speed

14,0 knots

Built

2008 As general cargo

2017 Converted into a trailing suction hopper dredger renamed Middelburg

Launch date

23/02/2008

Date of completion

17/12/2008

Builder casco

Maas Shipping

Waterhuizen

The Netherlands

Builder completion

Niestern Sander B.V.

Delfzijl

The Netherlands

Yard number

012

Hull material

Mild steel

Watertight compartments

44

Continuous decks

1

Main engine

1x ABC - 4 stroke single acting 12 cylinder 256 x 310 mm combustion engine Mcr 2.208 kW / 3.002 hp at 800 rpm

Built: 09/11/2017

Builder: Anglo Belgian Corporation NV. Gent - Belgium

Propellers

1x Controllable pitch propeller - aft at 1.527 rpm

Shaft generator

1x 500 kVA - 400 kW

Generators

2x Main diesel generatorsets each 507 kVA - 406 kW - 579 hp

Emergency generator

1x Diesel generatorset 120 kVA - 96 kW - 270 hp

Bow thruster

1x Tunnel thruster 400 kW / 544 bhp, forward

Number of holds

1

Cargo hold capacity

2.730,07 m³

Tank capacities

Fuel: 211,99 m³

Crew size

8

Manager

TSHD Middelburg BV

Uijterschootweg 14

4338 PN Middelburg

The Netherlands

Owner

Van Ouwerkerk B.V. (Zand-,schelpen- en grindhandel)

Uijterschootweg 14

4338 PN Middelburg

The Netherlands

Latest data adjustment

01 May 2022
