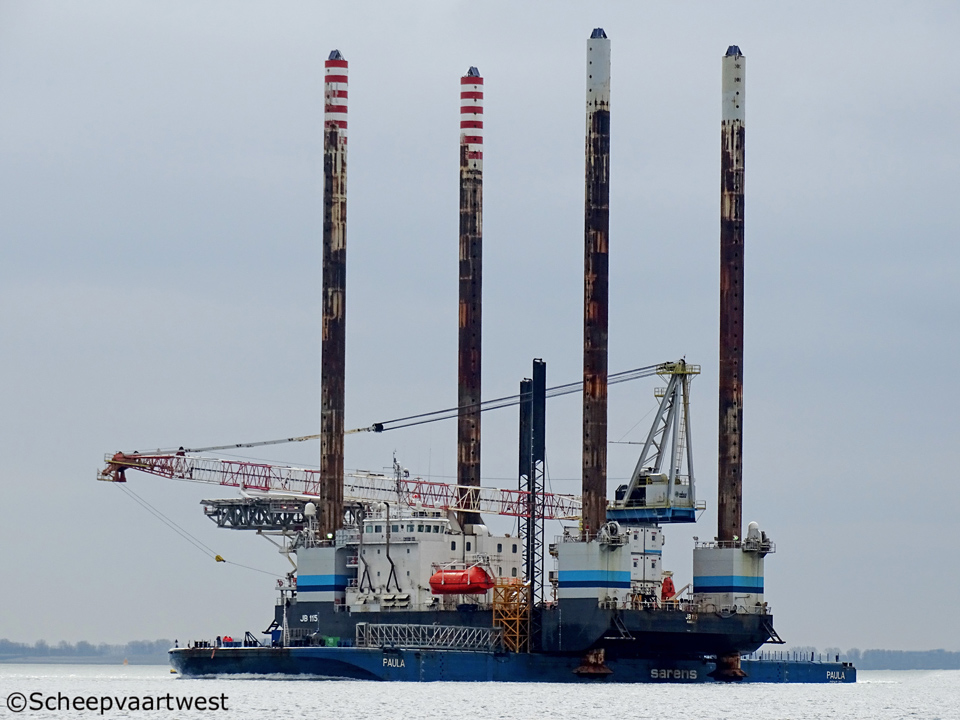

JB 115 02

Westerschelde 19 March 2016

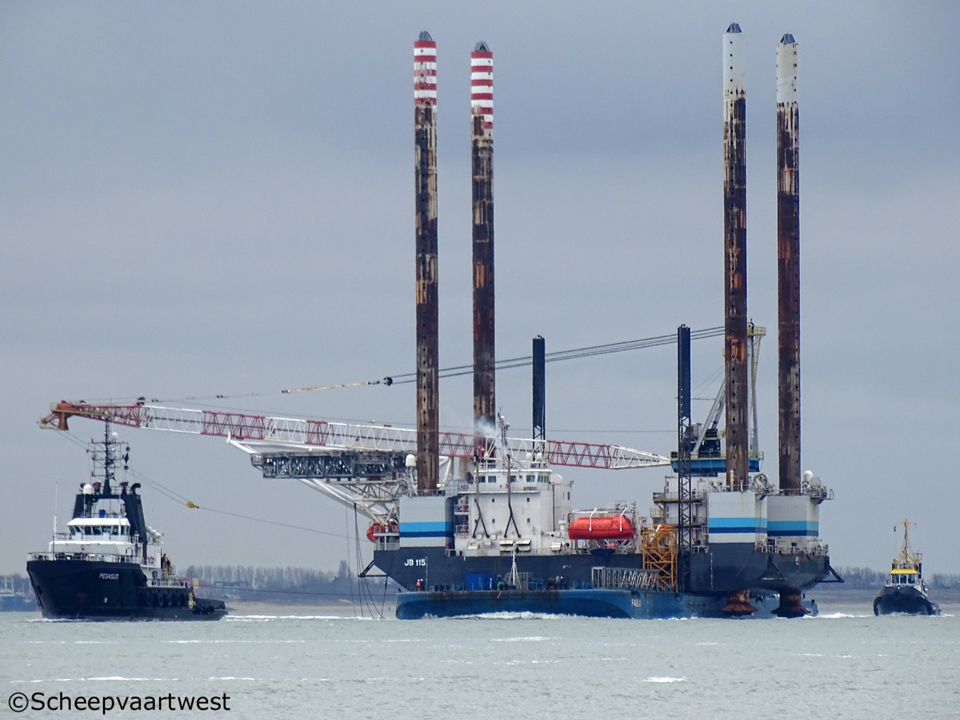

JB 115 01
Westerschelde 19/03/16


Name

JB-115

Type

Self-elevating support unit type MSC 2000

IMO-number

8770730

Call sign

C6XK2

Flag

Bahamas

Port of registry

Nassau

GT

3.621 t

NT

1.086 t

Length

55,50 m overall

53,28 m between perpendiculars

Breadth

32,20 m extreme

Draught

3,54 m

Depth

5,00 m

Built

2009

Keel laid

10/01/2008

Date of completion

08/05/2009

Builder

Labroy Marine Limited
Republic of Singapore

Yard number

H625

Hull material

Steel

Generators

2x Scania DI16M diesel generatorsets

Emergency generator

1x SISU diesel generatorset

Deck area

1.000 m²

Legs

Length: 78,85 m

Diameter: 3,00 m

Spudcan surface

23.8 m² each (removable)

Jacking system

Make: MSC hydraulic positive engagement

Jacking speed up: 0,4 meter/min.

Jacking speed down: 0,6 meter/min

Max. pay load: 1.250 t

Mooring system

Winches: 4x 30 t line pull (500 meter) electric driven

Anchors: 4x Delta Flipper, 5 t

Heli deck

Size: 19,50 m diameter

Capacity: Super Puma/9,3 t

Jacking conditions

Wave height/period max.: 1,5 meter/5,0 sec.

Wind speed max.: 8 meter/sec.

Tank capacities

Ballast: 1.064 m³

Crane

Make: Favelle Favco Cranes, Malaysia

Type: PC 300 Offshore Pedestal crane

Capacity:
300 t at 22,00 m radius
52 t at 62,00 m radius

Boom length: 60,00 - 90,00 m

Accommodation

Up to 64 Persons on board (option to be increased to 160)

Manager

Jack-up Barge Operations B.V.
Krausstraat 14-16
3364 AD Sliedrecht
The Netherlands

Registered owner

Self Elevating Platforms JB 115 N.V.

Latest data adjustment

13 February 2018
