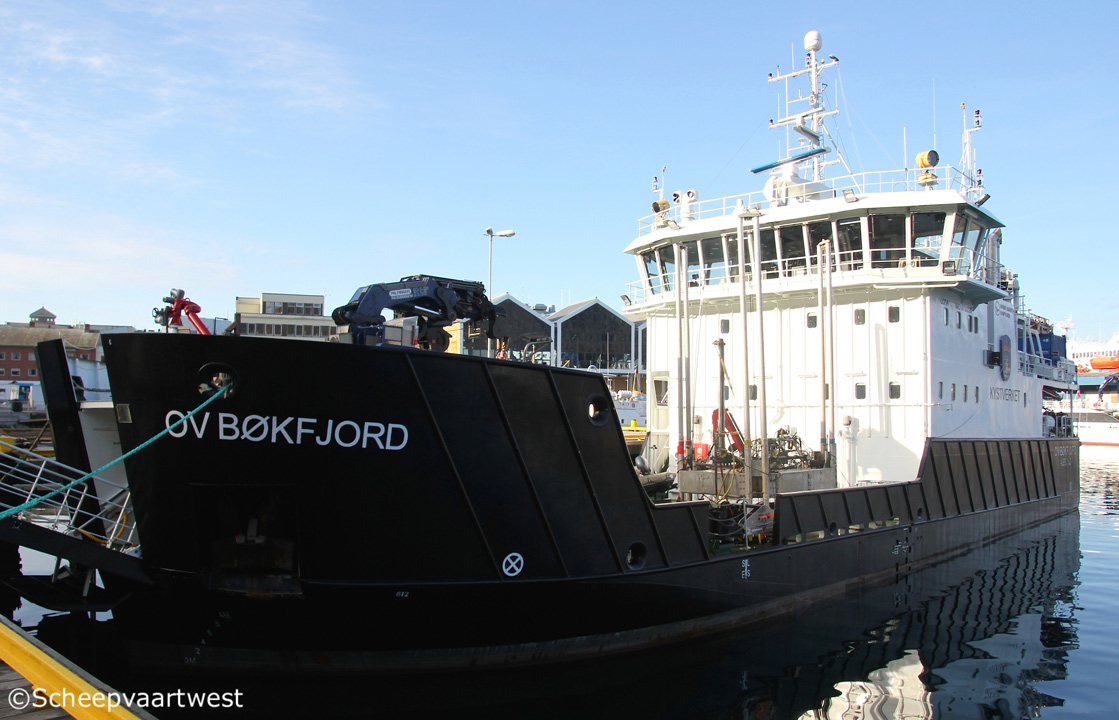

OV Bokfjord 01

Norway 27 September 2017

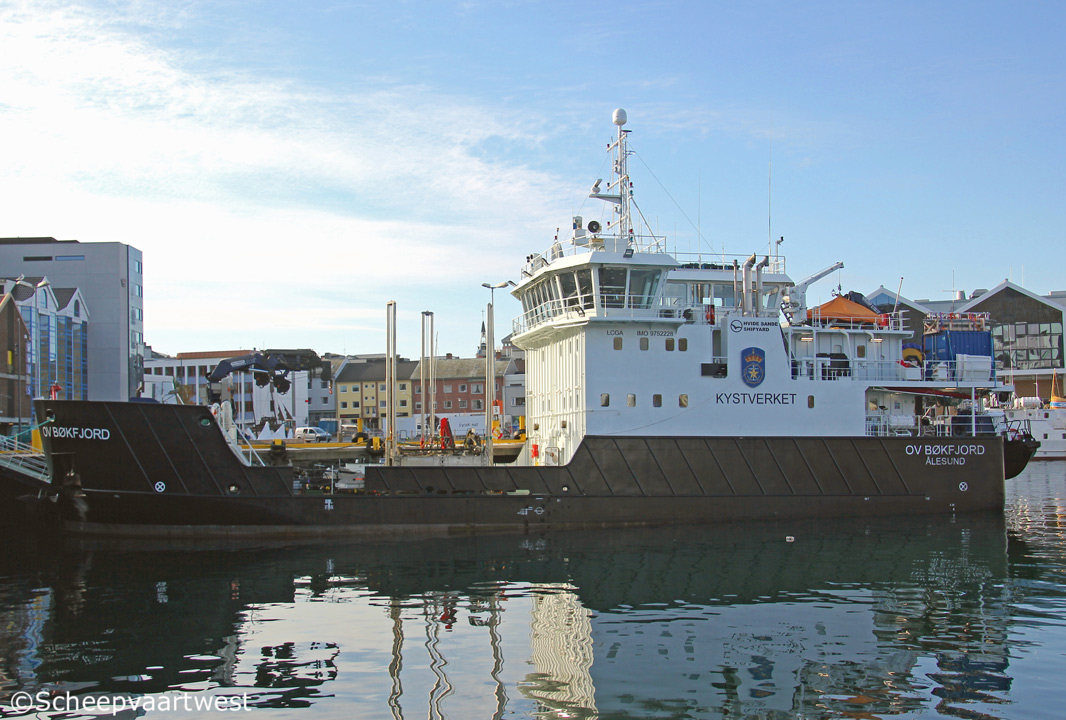

OV Bokfjord 02
27/09/17



Name

OV BØKFJORD

Type

Hybrid pollution control vessel - Work boat

IMO-number

9752228

Call sign

LCGA

Flag

Norway

Port of registry

Ålesund

GT

937 t

DWT

430 t

NT

281 t

Length

44,00 m overall

40,00 m between perpendiculars

Breadth

11,51 m extreme

11,40 m moulded

Draught

3,92 m

Freeboard

Summer: 682 mm

Winter: 762 mm

Depth

4,50 m

Speed

Service: 11,0 knots

Max.: 13,4 knots

Built

2016

Keel laid

19.03.2015

Launch date

16.11.2015

Date of completion

24.08.2016

Builder casco

Kedat Sp. z o.o.
Stettin
Poland

Builder completion

Hvide Sande Shipyard
Beddingsvej 2
6960 Hvide Sande
Norway

Yard number

133

Hull material

Steel

Main engine

3x Caterpillar C32 diesel engines each 945 kW at 1.800 rpm

Propulsion

2x Azimuth thrusters US 205

Builder: Rolls-Royce OY AB

Boilers

1x Auxiliary steam generator EO60

Builder: Clayton

Generators

3x Diesel generatorsets

Emergency generator

1x Cummins QSB7-D(M) diesel generatorset

Battery packs

Total: 850 kW

Tank capacities

Pollution oil: 170 m³

Ballast: 157,1 m³

Lifting equipment

1x Palfinger crane:

SWL 2.800 kg @ 21,40 m

SWL 7.000 kg @ 11,00 m

Owner

Kystverket Rederi
Kongens gate 25
6025 Ålesund
Norway

Latest data adjustment

30 December 2017
