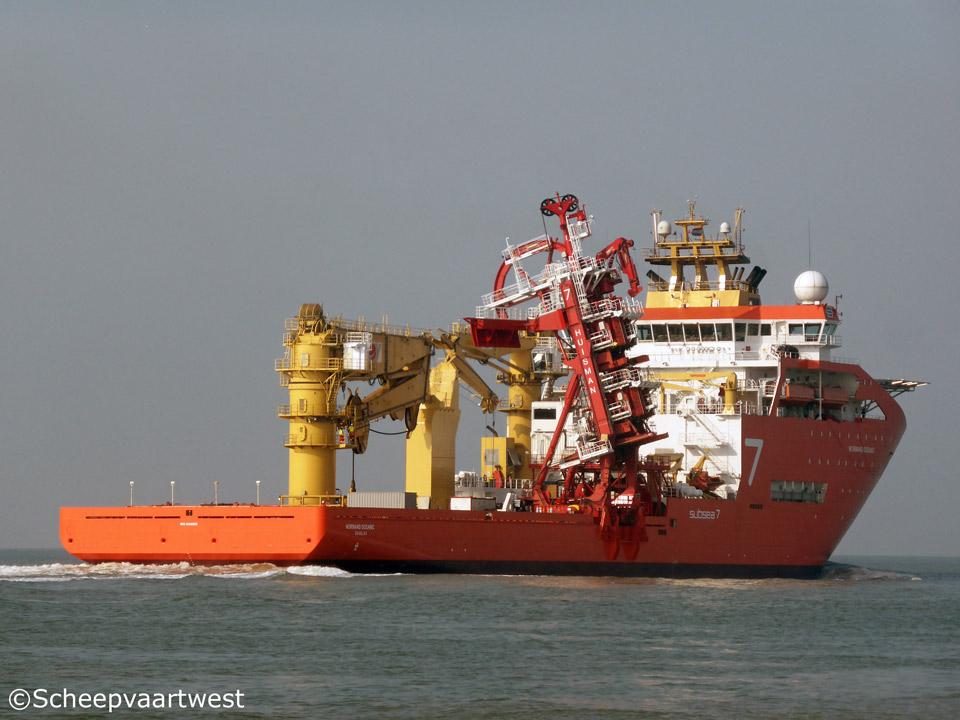

Westerschelde 16 March 2015 |
|
Name |
NORMAND OCEANIC |
|
Type |
Multi-purpose offshore vessel - Subsea 7 |
|
Sub type |
Pipe laying - Crane operation - Sea bottom operations - Repair |
|
IMO-number |
9468205 |
|
Call sign |
LAXM7 |
|
Flag |
Norway |
|
Port of registry |
Skudeneshavn |
|
Previous flags |
2012 - 2016 Isle of Man, Douglas - Call sign: 2FGT6 |
|
GT |
16.511 t |
|
DWT |
Summer: 11.300 t |
|
NT |
4.954 t |
|
Length |
156,90 m overall 137,70 m between perpendiculars |
|
Breadth |
27,00 m extreme |
|
Draught |
8,52 m |
|
Depth |
12,00 m |
|
Speed |
Max.: 17,6 knots Economic: 12,0 knots |
|
Built |
2011 |
|
Keel laid |
08.12.2008 |
|
Date of completion |
31.03.2011 |
|
Builder |
STX RO Offshore Tulcea SA |
|
Yard number |
730 |
|
Hull material |
Steel |
|
Main engine |
2x Wärtsilä 8L32 - 8 cylinder diesel engine 3.840 kW kW 2x Wärtsilä12V32 - 12 cylinder diesel engine 5.760 kW |
|
Propellers |
2x Azimuth Contaz 25 each 3.000 kW |
|
Generators |
2x Wärtsilä 8L32 diesel generatorsets 4.200 kVA 2x Wärtsilä 12V32 diesel generatorsets 6.150 kVA |
|
Emergency generator |
1x caterpillar 3512B diesel engine1.424 bkW coupled with Stamford generators 1.360 KW |
|
Thruster |
Thrusters: 2x 3.000 kW Stern Propeller: 1x 4.000 kW Bow Thruster: 2x 1.900 kW Azimuth Thruster: 2x 1.500 kW |
|
Deck area |
1.642 m² |
|
Tugger winches |
4x SWL 12,0 t each constant tension |
|
Moonpool |
Work moonpool: Dimensions 7,20 x 7,20 m |
|
Helideck |
Type : Marine aluminum for BSL D5-1, HCA Diameter: 20,90 m |
|
Pipe laying Systems |
Flaexible lay: Lay system: 150 t TLS Flex/umbilical storage: One underdeck basket carousel Capacity 3.000 t Carousel outer diameter: 23,60 m Carousel height: 5,60 m Carousel effective volume: 2.336 m³ Reels: Capacity for 4x 360 t deck reels |
|
Ice and winterisation |
Features include hull plate strengthening Trace heating of helideck, lifeboat, and other critical areas Tank heating of fresh water tanks, and other measures |
|
ROV Systems |
ROVs (No. and type): 2x Hercules Operating Depth Rating: 3.000 m ROV Comments Vessel fitted with two Hercules Mk3 Work Class ROV’s with AHC deployment through internalmoonpools with maximum 5,50 m HS |
|
Tank capacities |
Fuel Oil (approx): 2.199,3 m³ Ballast Water (approx): 8.864,1 m³ Fresh Water (approx): 1.641,9 m³ |
|
Anchor equipment |
Length: 632,50 m Diameter: 68 mm |
|
Lifting equipment |
2x Starboard Crane- SWL 3,0 t each at 15,00 m |
|
Cargo gear |
1x Offshore crane: 400 t @ 15,00 m Wire Capacity 3.000 m Auxiliary winch: 20 t single / 40 t double Wire Capacity 2.600 m single / 1.300 m double 1x Offshore Crane: 100 t @ 15,0 m Wire Capacity: 2.000 m Auxiliary Winch: 10 t Winch Capacity: 150 m |
|
Accommodation |
For 140 people Berths: 140 One Man Cabins: 58 Two Man Cabins: 41 Mess Room/Rec Room: 1/4 |
|
Manager |
Solstad Shipping AS |
|
Owner |
Normand Oceanic AS |
|
Latest data adjustment |
03 March 2017 |
