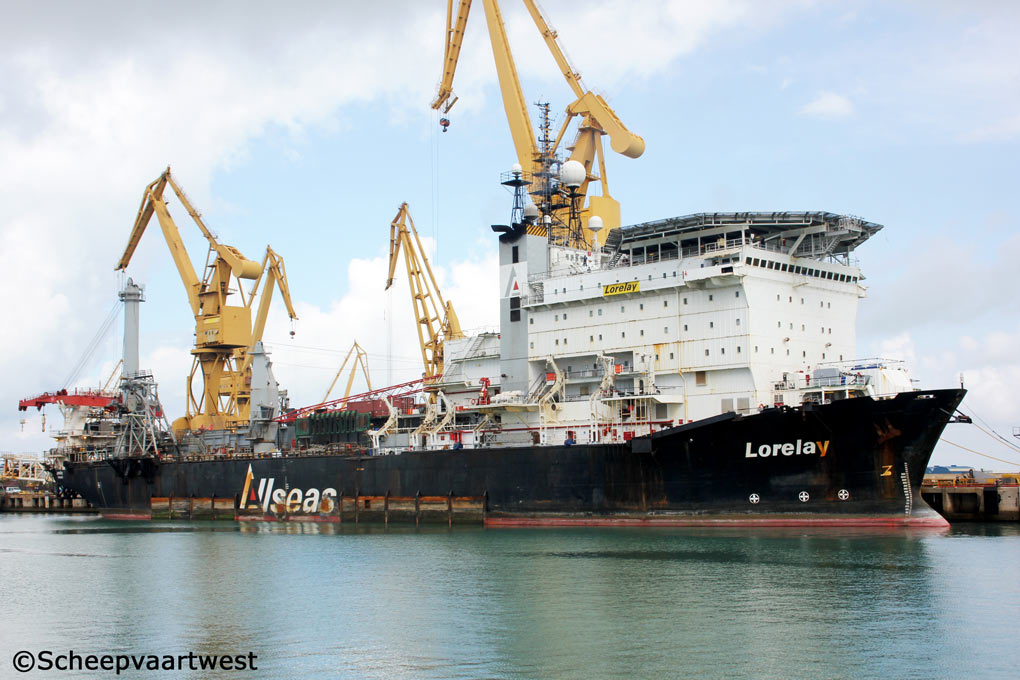

Lorelay 01

Cadiz, Spain 22 September 2014

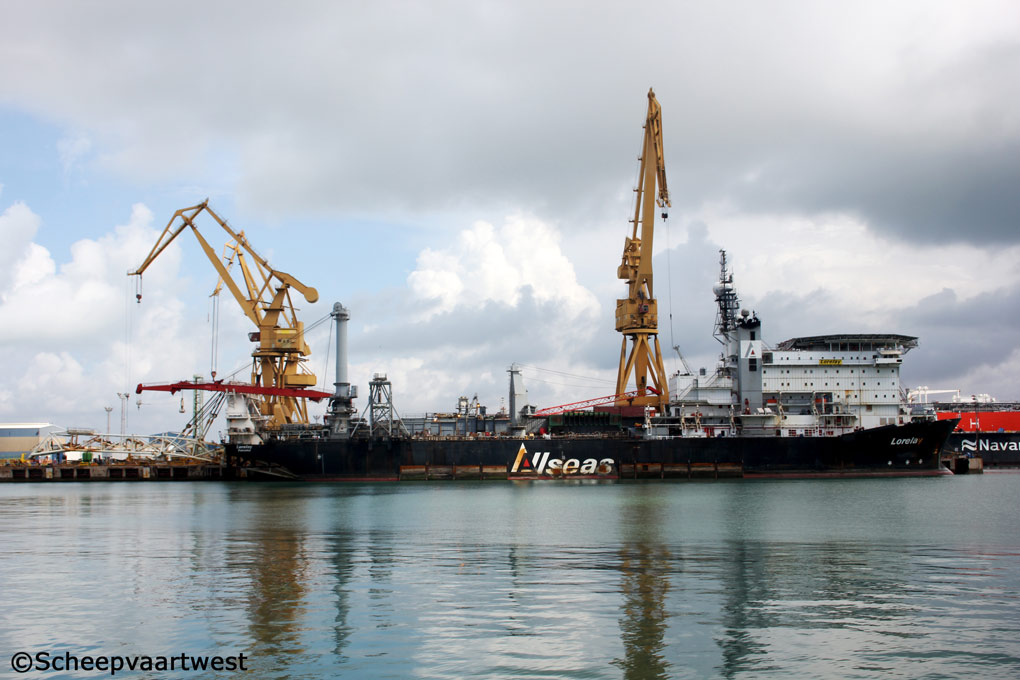

Lorelay 02
Cadiz, Spain 22/09/14


Name

LORELAY

Previous names

1974 - 1986 Natalie Bolten - Flag: Germany

Type

Cable and Pipelayer

IMO-number

7349807

Call sign

3EWN4

Flag

Republic of Panama

Port of registry

Panama City

GT

21.143 t

DWT

Summer: 8.795 t

Length

182,50 m overall

150,00 m between perpendiculars

236,00 m incl. stinger

Breadth

25,86 m

Draught

8,80 m

Speed

16,0 knots

Built

1974

1986 Vessel was converted from bulk carrier to pipe layer

Launch date

07.12.1973

Date of completion

03.1974

Builder

Flender Werft
Lubeck
Germany

Yard number

605

Hull material

Steel

Total installed power

17.760 kW

Pipe cargo capacity

8.200 t

Deck cranes

1x Special purpose crane of 300 t at 14,00 m
1x Pipe transfer crane of 16 t at 33,00 m

Accommodation

230 persons

Manager

Allseas Engineering
Poortweg 12
2612 PA Delft
The Netherlands

Owner

Allseas Engineering
Poortweg 12
2612 PA Delft
The Netherlands

Latest data adjustment

19 October 2014
