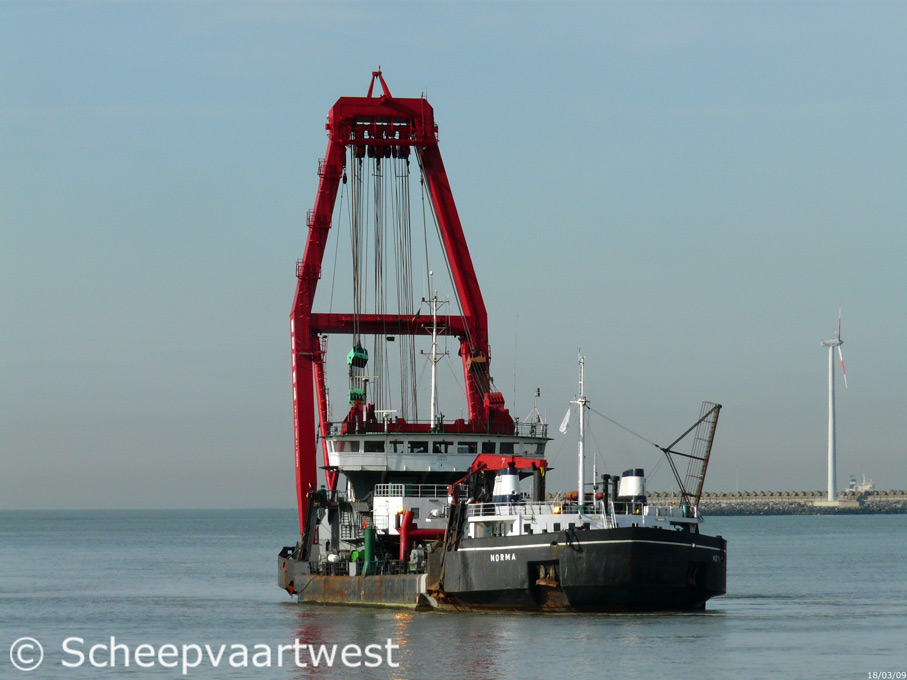

| Zeebrugge 18 March 2009 |
 |
 |
 |
||

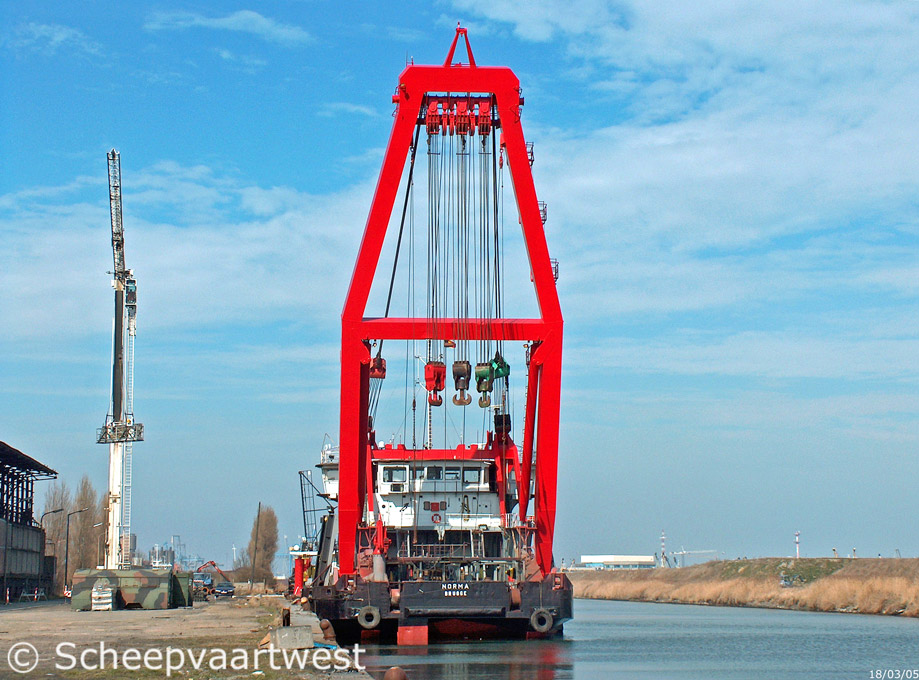

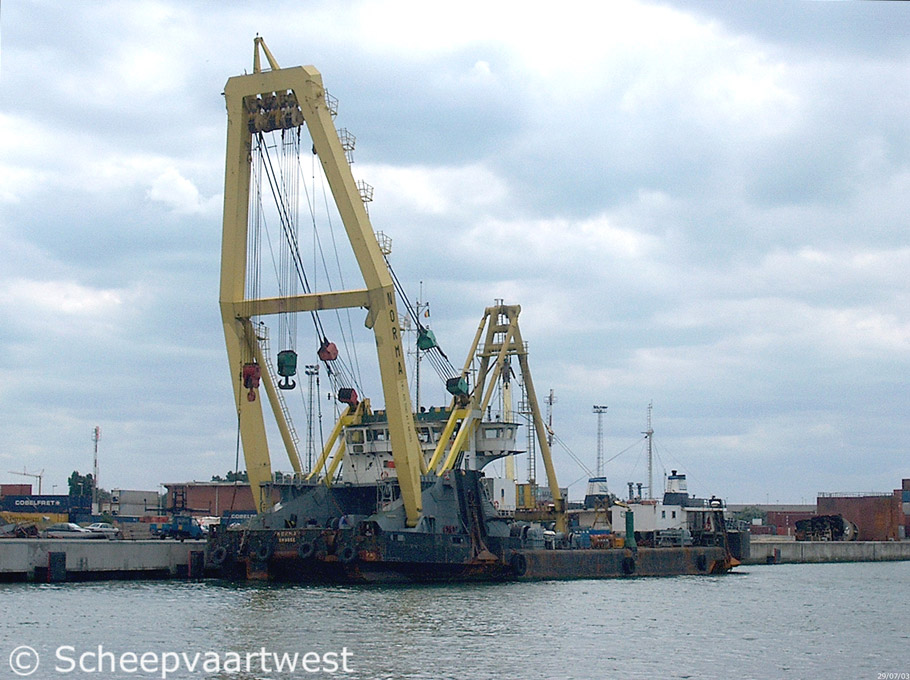

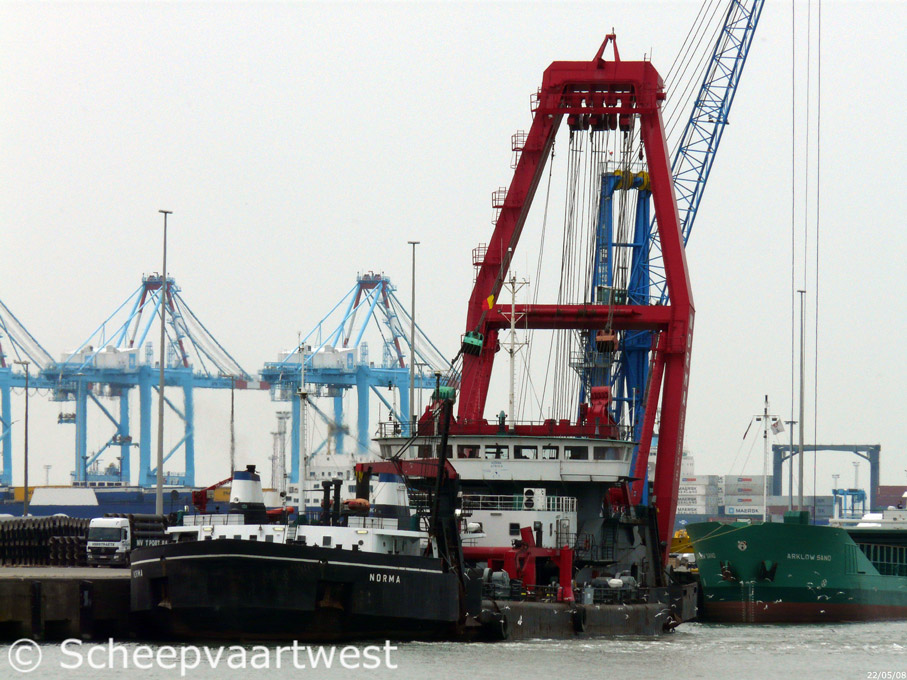

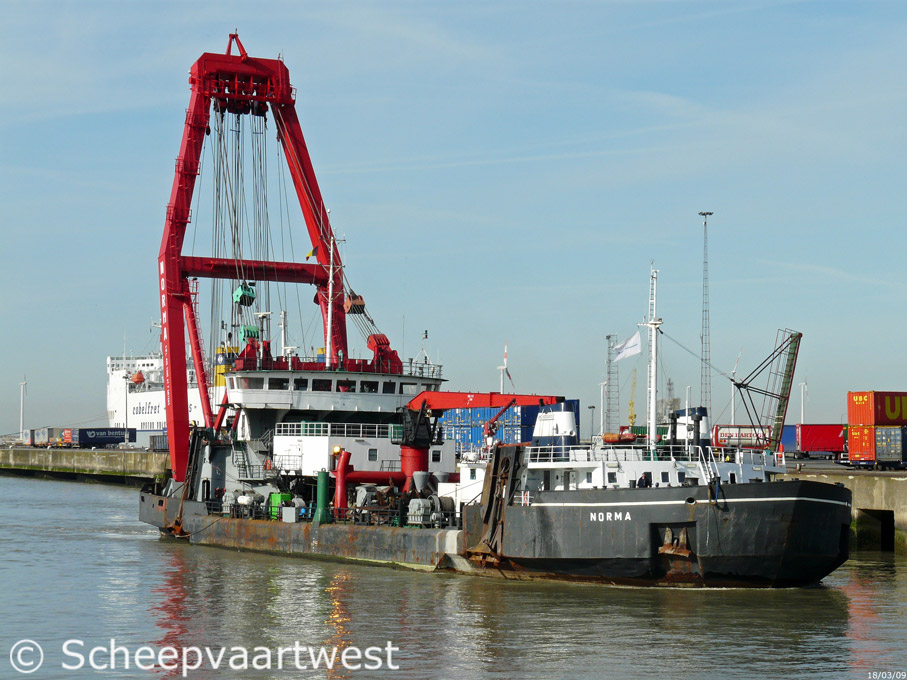

| Zeebrugge 18/03/09 | Zeebrugge 22/05/08 | Zeebrugge 18/03/06 | ||
 |
 |
 |
||

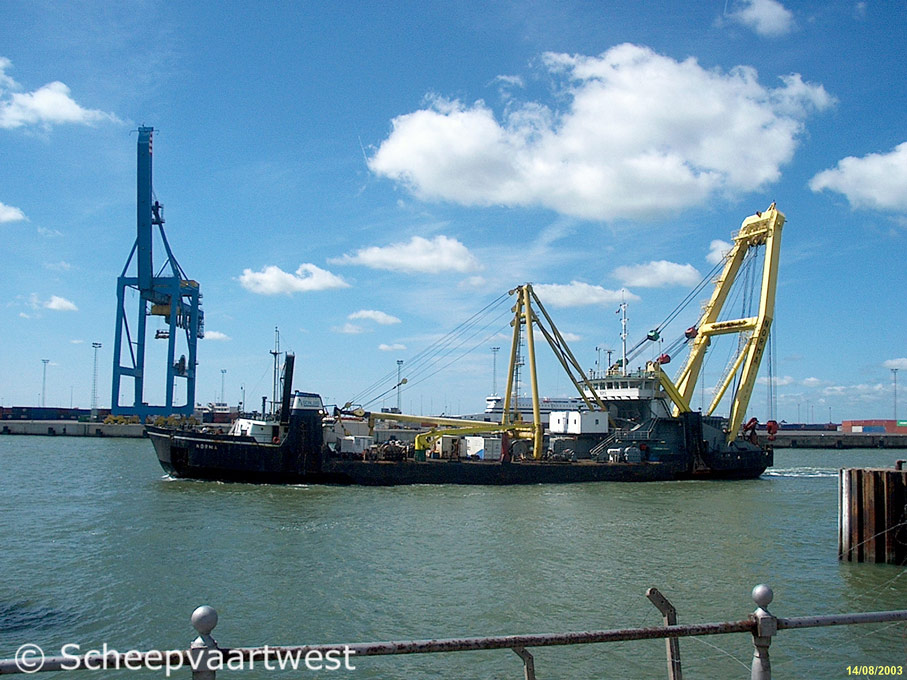

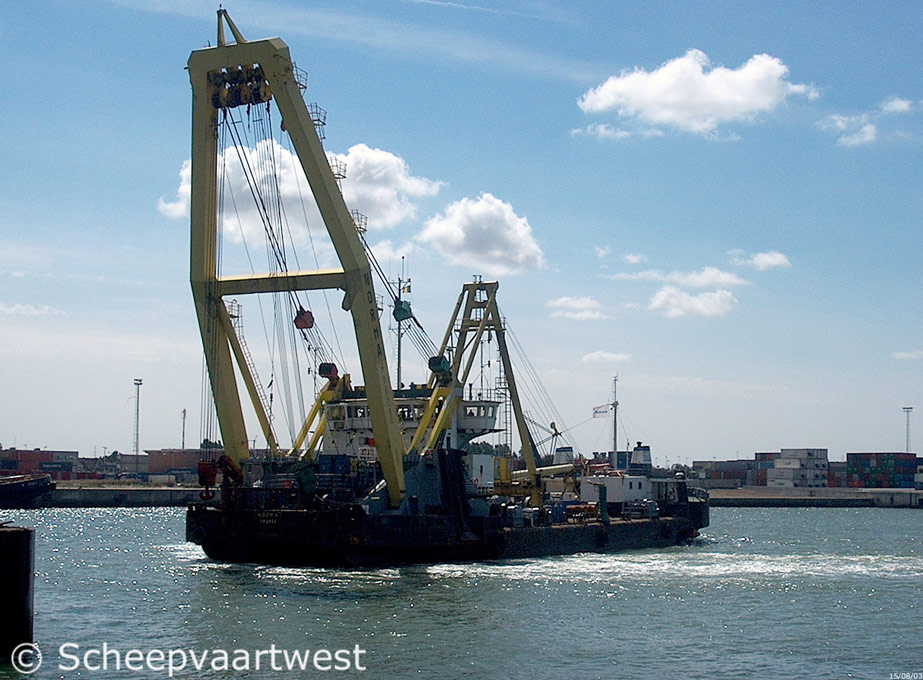

| Zeebrugge 15/08/03 | Zeebrugge 14/08/03 | Zeebrugge 29/07/03 | ||
|
Name |
NORMA |
|
Type |
Salvage vessel |
|
IMO-number |
8330073 |
|
Call sign |
ORTK |
|
Flag |
Belgium |
|
Port of registry |
Brugge |
|
GT |
2.314 t |
|
NT |
727 t |
|
Length |
82,08 m overall |
|
Breadth |
20,24 m |
|
Draught |
Summer: 4,11 m |
|
Freeboard |
1.270 |
|
Depth |
5,37 m |
|
Speed |
10,0 knots |
|
Built |
1969 |
|
Rebuilt |
1982 and 1985 |
|
Builder |
De Biesbosch Dordrecht |
|
Hull material |
Steel |
|
Continuous decks |
1 |
|
Engines |
4x 4 stroke 8 cylinder 222 x 292 mm internal combustion engines at 900 rpm |
|
Installed power |
2x Voith Schneider - 1.200 hp total 2.400 hp |
|
Propelling system |
2x Voith-Schneider / Cycloidal propellers |
|
Elec. propulsion generators |
4x 692 kW - 440 V |
|
Elec. propulsion engine |
2x 883 kW at 885 rpm |
|
Emergency generator |
1x Diesel generatorset 44 kVA - 35 kW - 50 hp |
|
Electrical installation |
Power voltage: 440 V Lighting voltage: 115 V |
|
Load bearing capacity on deck |
4.000 hp / 2.940 kW |
|
Height to deck-a-frame bend over |
25,75 m |
|
Height to deck-a-frame stretch |
114,45 m |
|
Load capacity on deck |
2.233 t |
|
Lifting derrick |
50 ton + hydraulic grab |
|
Lifting jib |
300 ton + lifting capacity |
|
Hull grab |
2x 125 t |
|
Deck tackles |
1.500 t |
|
Cargo handling |
2x Cranes - SWL 125 t |
|
Lift capacity |
440 t |
|
Fuel capacity |
124 m³ |
|
Accommodation |
For permanent crew of 24 persons |
|
Fire fighting equipment |
Stationary fire fighting pump |
|
Pumping facilities |
Fixed salvage pump 300 m3/hour |
|
Crew |
11 |
|
Operator |
Dredging International |
|
Owners |
N.V. Baggerwerken Decloedt & Zoon N.V. Onderneming De Nul N.V. Dredging Environmental & Marine Engineering N.V. Herbosch-Kiere |
|
Remarks |
01.03.2013 Cancellation Belgian registry |
|
Last update |
25 May 2013 |
