Westerschelde 14 June 2012 |
 |
| Westerschelde 19/09/11 |
|
Name |

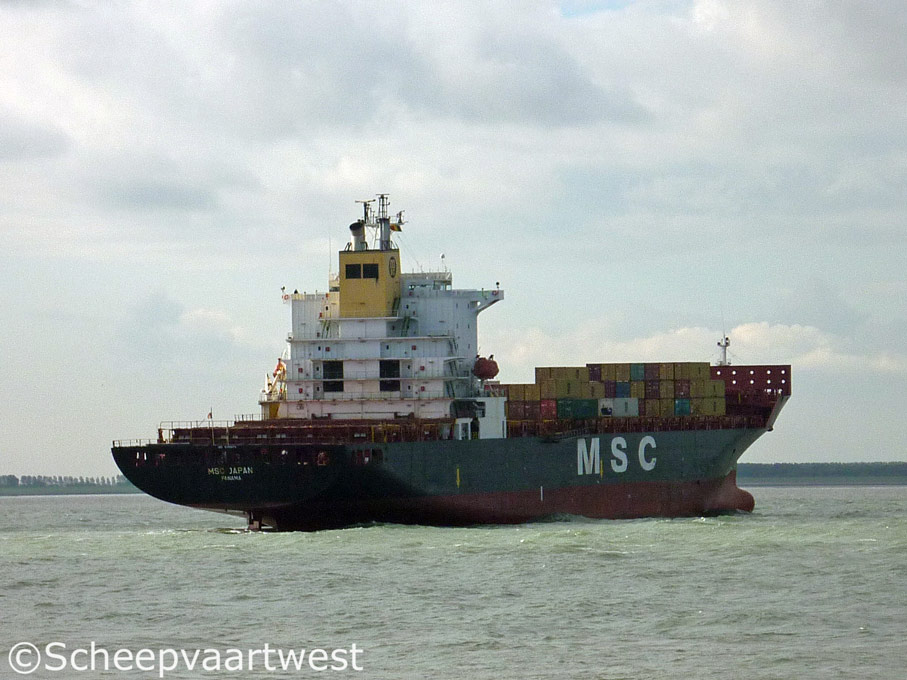

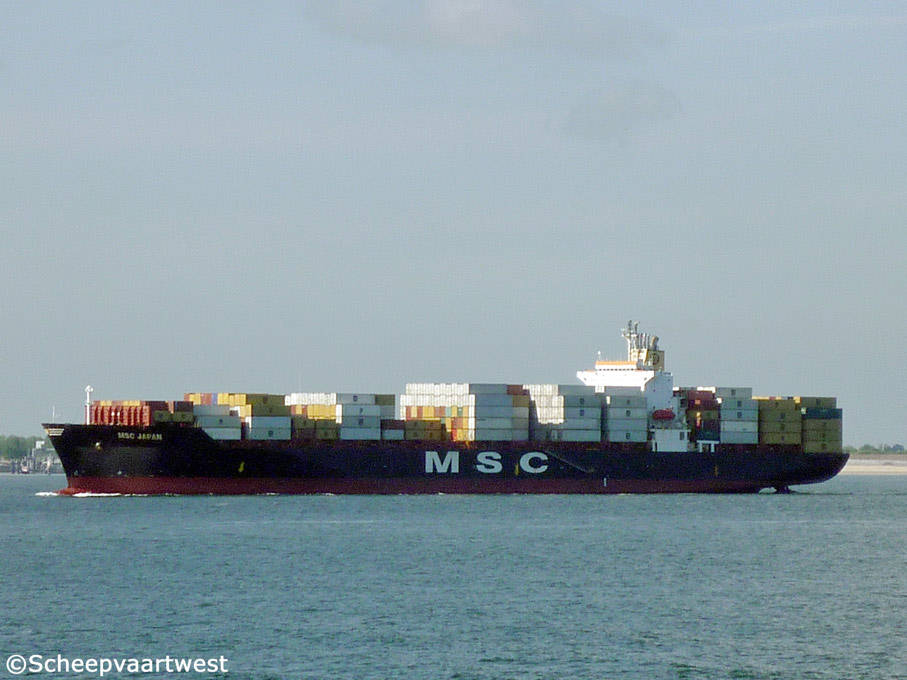

MSC JAPAN |
|
Previous names |
1995-20.08.1996 Manzanillo 1996-23.10.1997 TMM Manzanillo 1997-24.09.2000 Manzanillo 2000-14.08.2001 APL Panama |
|
Type |
Cellular containership |
|
IMO-number |
9110975 |
|
Call sign |
3ECR5 |
|
Previous call sign |
SYTK |
|
Flag |
Republic of Panama |
|
Previous flag |
Greece |
|
Port of registry |
Panama City |
|
GT |
37.518 t |
|
DWT |
42.938 t |
|
NT |
20.449 t |
|
Number of 20ft container |
3.424 |
|
Container capacity 14t |
2.401 |
|
Reefer capacity |
284 |
|
Length |
242,81 m overall 227,37 m registered |
|
Breadth |
32,20 m registered |
|
Draught |
12,70 m |
|
Forecastle |
28,70 m |
|
Depth |
16,35 m moulded |
|
Speed |
Max.: 23,2 knots |
|
Built |
1996 |
|
Keel laid |
05.08.1995 |
|
Launch date |
11.10.1995 |
|
Date of completion |
08.01.1996 |
|
Builder |
Samsung Shipbuilding & Heavy Industries Co., Ltd. |
|
Yard number |
1155 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
3 |
|
Main engine |
1x Sulzer 7RTA84C - 2 stroke 7 cylinder 840 x 2.400 mm diesel engine - 28.350 kW at 102,0 rpm Year of manufacture: 1995 Manufacturer: Hitachi Zosen Corporation Sakurajima Works |
|
Propeller |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,0 bar Heating surface: 30,5 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 385,0 m² Year of manufacture: 1995 Manufacturer: KangRim Ind. Co., Ltd. (1st Factory) |
|
Electric installation |
1 Plant 440/220 V - 1.687,5 kVA 1 Plant 440/220 V - 1.687,5 kVA 1 Plant 440/220 V - 1.687,5 kVA 1 Plant 440/220 V - 1.687,5 kVA 1 Plant 440 V - 250 kVA |
|
Generators |
4x Main diesel generatorsets each 1.687,5 kVA / 1.350 kW |
|
Emergency generator |
1x Diesel generatorset 250 kVA |
|
Compressed air receivers |
2x Receivers each 14.900 litres - 32,0 bar 1x Receiver 700 litres - 11,0 bar 1x Receiver 500 litres - 8,5 bar |
|
Bow thruster |
1x Fixed pitch propeller LIPS - 1.300 kW, forward |
|
Tank capacities |
Fuel oil: 4.351 m³ Water ballast: 11.442 m³ |
|
Anchor equipment |
3x Anchors weight each 10.500 kg Chain length: 660,00 m |
|
Cargo gear |
None |
|
Manager |
MSC Shipmanagement Ltd |
|
Previous managers |
Costamare Shipping, Athens - Greece |
|
Operator |
MSC - Mediterranean Shipping Company |
|
Owner |
Borromini Shipping Co. Ltd. |
|
Previous owners |
Woodley Maritime Corporation, Liberia |
