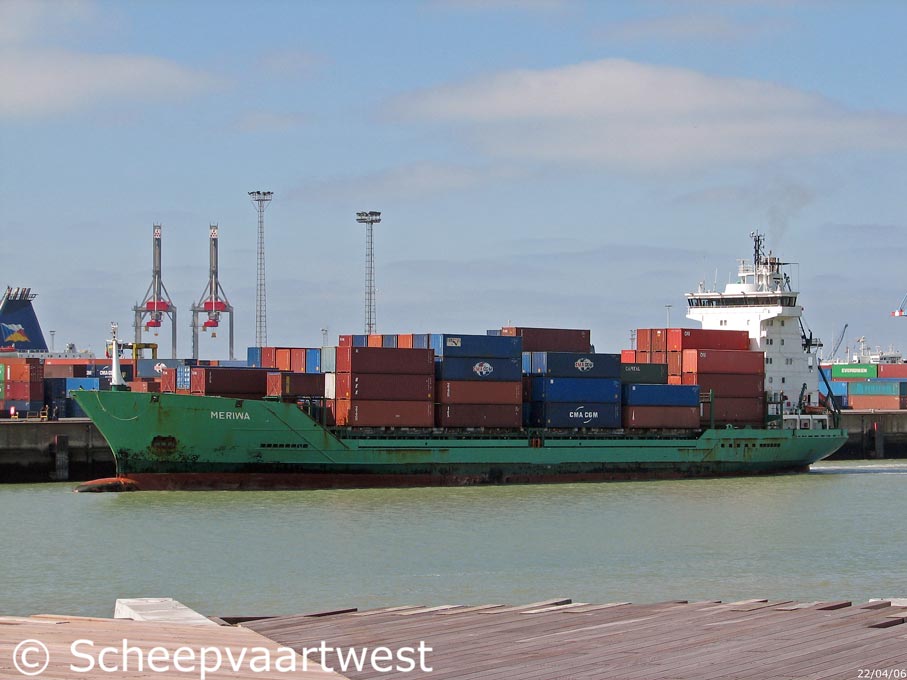

| Zeebrugge 22 April 2006 |
 |

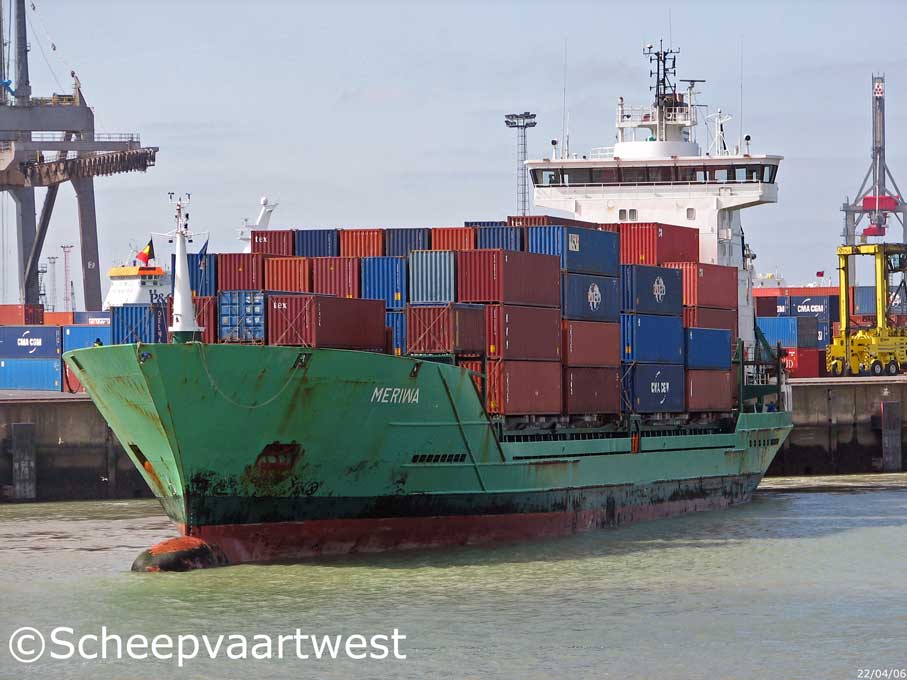

| Zeebrugge 22/04/06 |
|
Name |
MERIWA |
|
Previous name |
Arklow Castle |
|
Type |
Cellular Containership |
|
IMO-number |
9141106 |
|
Call sign |
V2PS4 |
|
Flag |
Antigua & Barbuda |
|
Port of registry |
St. Johns |
|
GT |
5.006 t |
|
DWT |
7.000 t |
|
NT |
2.096 t |
|
Number of 20ft containers |
545 |
|
Container capacity 14t |
330 |
|
Length |
116,40 m overall |
|
Breadth |
19,50 m overall |
|
Draught |
Summer: 7,06 m |
|
Forecastle |
8,54 m |
|
Poop |
14,00 m |
|
Depth |
9,21 m moulded |
|
Speed |
16,5 knots |
|
Built |
1996 |
|
Keel laid |
05.12.1995 |
|
Launch date |
10.08.1996 |
|
Date of completion |
03.10.1996 |
|
Builder |
Peterswerft Wewelsfleth GmbH & Co. KG |
|
Yard number |
657 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Partly double bottom |
|
Watertight bulkheads |
5 |
|
Continuous decks |
2 |
|
Main engine |
1x Krupp MaK9M32 - 4 stroke single acting 9 cylinder 320 x 480 mm diesel engine - 3.960 kW Year of manufacture: 1996 Manufacturer: MaK Motoren GmbH & Co. KG |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Electric installations |
1x 380/220 V - 540 kVA 1x 380 V - 760 kVA 1x 380 V - 180 kVA |
|
Shaft generator |
760 kVA |
|
Generators |
2x Main diesel generatorsets each 270 kVA |
|
Emergency generator |
1x Diesel generatorset 180 kVA |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster JASTRAM - 410 kW, forward |
|
Number of holds |
2 |
|
Number of hatches |
2 |
|
Hatch covers |
Hydraulic operated, folding covers |
|
Cargo capacity |
Grain:7.150 m³ Bales: 7.000 m³ |
|
Anchor equipment |
3 Anchors weight each 3.780 kg Chain length: 522,50 m |
|
Crew |
11 |
|
Manager |
Schiffahrtskontor Tom Wörden GmbH & Co. KG |
|
Owner as completed |
Arklow Containers Ltd. |
|
Owner |
MS "MERIWA" GmbH & Co. KG |
