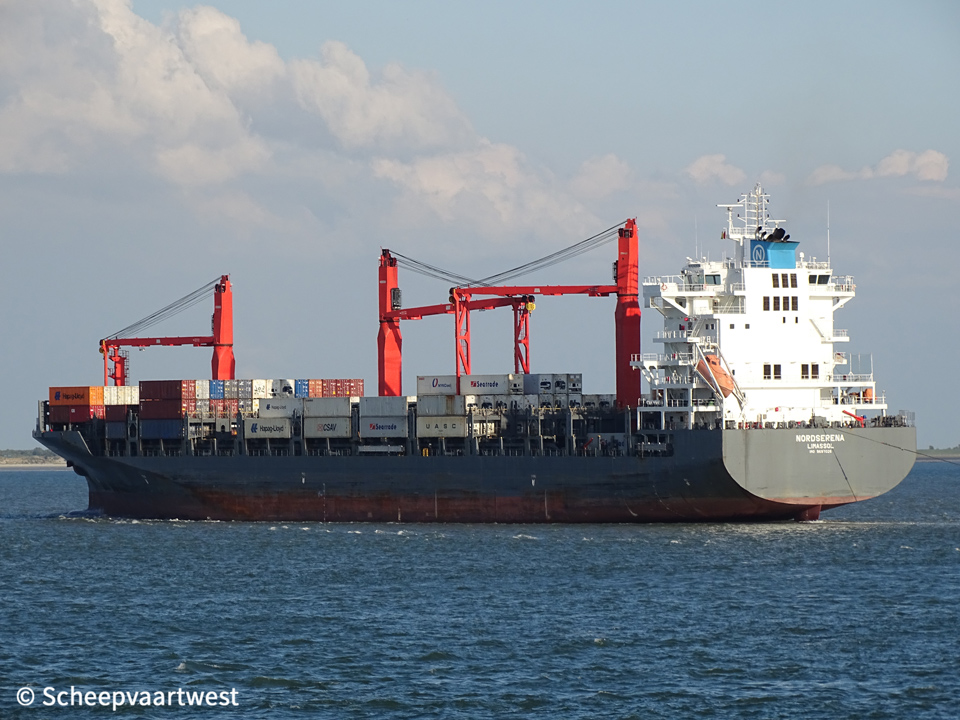

Nordserena 01

Westerschelde 10 September 2019



Name

NORDSERENA

Type

Sub-Panamax size, Self-sustained cellular container vessel

IMO-number

9697026

Call sign

5BMK4

Flag

Cyprus

Port of registry

Limassol

GT

28.316 t

DWT

Summer: 35.225 t

NT

12.334 t

Number of 20ft containers

2.506

Container capacity 14t

1.984

Reefer capacity

In hold: 289

on deck: 241

Total: 530

Length

194,95 m overall

184,95 m between perpendiculars

Breadth

32,26 m extreme

Draught

Max: 11,5 knots

Freeboard

5.530 mm

Depth

17,01 m

Speed

Max: 22,0 knots

Service: 19,0 knots

Built

2016

Keel laid

11/11/2015

Launch date

26/01/2016

Date of completion

13/06/2016

Builder

Guangzhou Wenchong Shipyard Co. Ltd.
Guangzhou
China

Yard number

GWS452

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W/Hudong Heavy Machinery 6G60ME-C9.2 - 2 stroke single acting 6 cylinder 600 x 2.790 mm combustion engine 13.400 kW / 18.219 hp at 97,0 rpm

Propellers

1x Fixed pitch propeller - aft at 97,0 rpm

Boilers

1x Auxiliary boiler, composite

Generators

2x MAN-B&W7L27/38 main diesel engine each 2.380 kW coupled with generators each 2.300 kW

2x MAN-B&W 5L27/38 main diesel engine each 1.600 kW coupled with generators each 1.500 kW

Emergency generator

1x MAN D2866LXE20 diesel generatorset

Bow thruster

1x Tunnel thruster 1.100 kW / 1.496 bhp, forward

Tank capacities

Ballast: 11.957,2 m³

Anchor equipment

Length: 660,00 m

Diameter: 78 mm

Cargo gear

3x Deck cranes - SWL 45,0 t each @ 28,00 m

Crew size

23

Manager

Reederei Nord GmbH
Astraturm
Zirkusweg 2
20359 Hamburg
Germany

Registered owner

Nord Serena GmbH & Co., Kg

Latest data adjustment

22 October 2019
