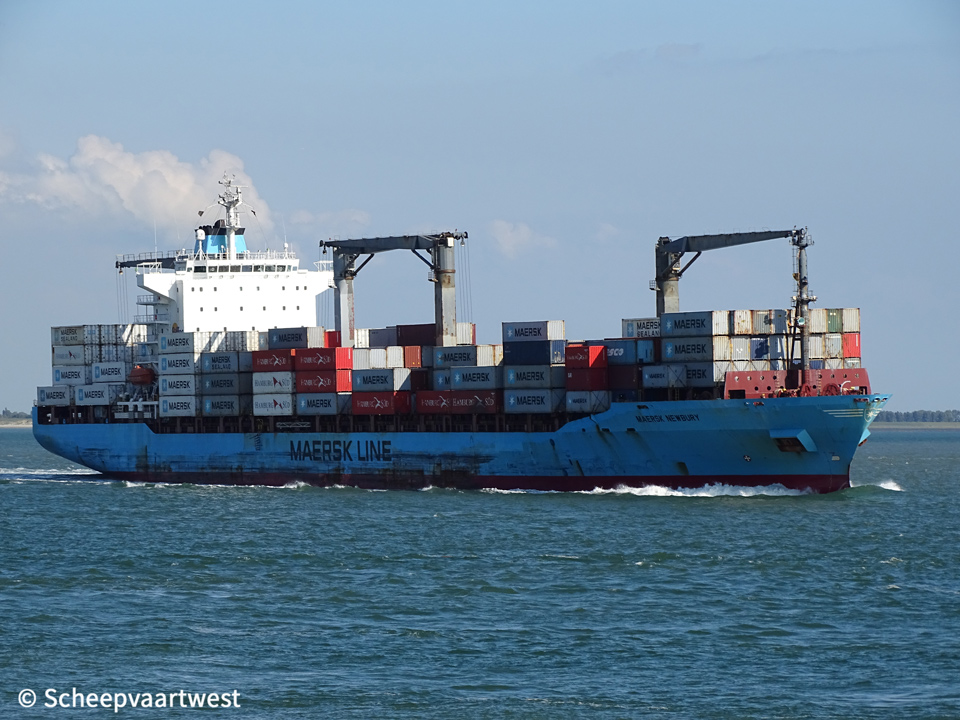

Maersk Newbury 01

Westerschelde 10 September 2019



Name

MAERSK NEWBURY

Previous names

2001 - 06/2002 Caroline Schulte

06/2002 - 07/2010 Libra Houston

07/2010 - 07/2011 Cap Bisti

07/2011 Caroline Schulte

Type

Cellular containership

IMO-number

9231470

Call sign

9V3366

Flag

Republic of Singapore

Port of registry

Singapore City

Previous flags

2009 - 2010 Germany

2010 - 2016 Liberia, Monrovia - Call sign: A8UD5

GT

26.582 t registered

Suez: 27.589,96 t

DWT

Summer: 34.662 t

NT

12.715 t

Suez: 22.566,89 t

Panama: 23.521 t

Number of 20ft containers

In hold: 944

On deck: 1.612

2.556

Container capacity 14t

1.850

Reefer capacity

600

Length

210,00 m overall

199,00 m between perpendiculars

Breadth

30,20 m moulded

Draught

Max: 11,50 m

Forecastle

26,37 m

Poop

38,50 m

Freeboard

5.240 mm

Depth

16,70 m moulded

Speed

Max: 21,9 knots

Built

2001

Keel laid

05/02/2001

Delivery date

31/05/2001

Builder

Hyundai Heavy Industries Co., Ltd.

1, Cheonha-dong, Dong-gu

Ulsan, Kyongsang-namdo

Republic of Korea

Yard number

1304

Hull material

High strength steel

Ordinary strength steel

Hull type

Double bottom

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Hyundai/Sulzer 7RTA 72U-B - 4 stroke 7 cylinder 720 x 2.500 mm diesel engine - 21.560 kW at 99,0 rpm

Year of manufacture: 2001

Manufacturer: Hyundai Engine & Machinery Co., Ltd.
Ulsan
Republic of Korea

Propellers

1x Solid propeller (Keyless) - aft at 99,0 rpm

Boilers

Steam boiler, oil fired - 7,9 bar

Heating surface: 30,0 m²

Steam boiler, exhaust gas heated - 7,9 bar

Heating surface:304,0 m²

Year of manufacture: 2001

Manufacturer: KangRim Industries Co., Ltd. (1st Factory)

505 Shinpyung-dong, Saha-gu

Busan

Republic of Korea

Electric installations

4x Plants each 440/220 V - 2.000 kVA

1x Plant 440 V - 188 kVA

Shaft generator



Generators

4x Hyundai/MAN-B&W 8L28/32H main diesel generatorsets each 1.680 kW - 2.000 kVA

Emergency generator

1x Diesel generatorset 188 kVA

Compressed air receivers

2x Receivers each 5.000 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 2.000 litres - 8,8 bar

1x Receiver 200 litres - 8,8 bar

Bow thruster

1x Transverse thruster KAWASAKI - 1000 kW, forward

Number of holds

5

Hatch coamings

10

Hatch covers

29 - Pontoon type

Ventilation

Electrically ventilated 6 air-changes/hour basis empty hold

Number of tanks

Ballast: 16

Fuel oil: 8

Lubricating oil: 7

Diesel oil: 4

Waste water: 3

Chain: 2

Sludge: 2

Fresh water: 2

Tank capacities 100%

Diesel oil: 366,72 m³

Freshwater: 167,41 m³

Fuel oil: 7.016,21 m³

Lube oil: 277,4 m³

Tank ballast: 9.463,5 m³

Anchor equipment

3x Anchors weight each 9.300 kg

Chain length: 660,00 m

Lifting equipment

1x Engine room crane - SWL 6,0 t

Cargo gear

4x Liebherr deck cranes - SWL 45,0 t each

Crew size

27

Manager

Fleet Operations - Maersk Line Fleet Management & Technical Operations, Fleet Group Manager
200 Cantonment Road 10-00 Southpoint
Singapore, 089763
Republic Of Singapore

Registered owner

Moller Singapore AP Pte Ltd.

Latest data adjustment

22 October 2019
