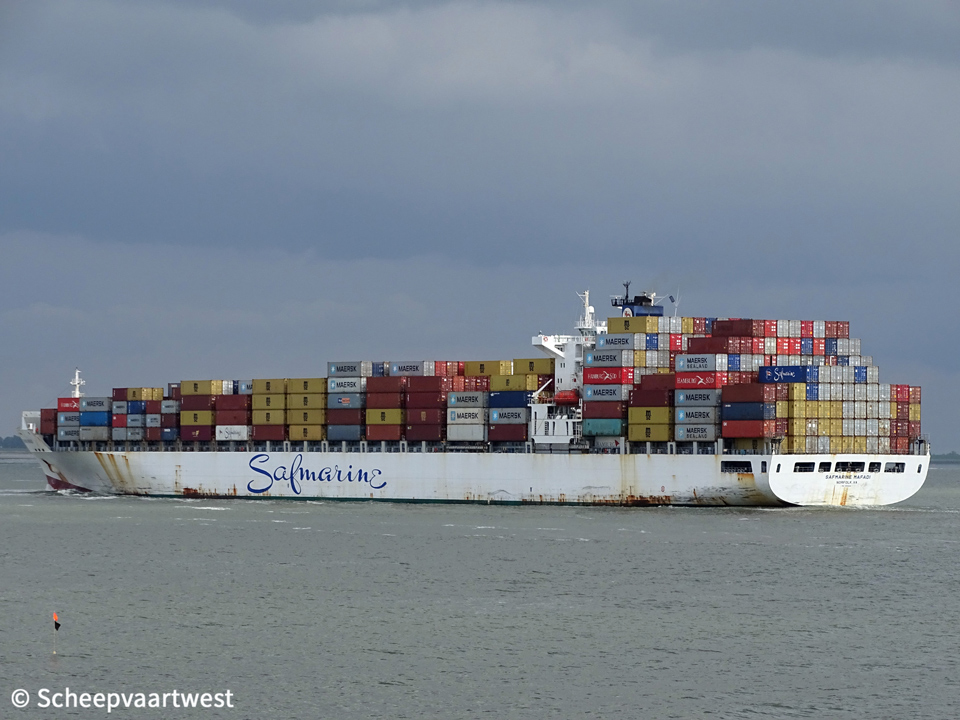

Safmarine Mafadi 01

Westerschelde 28 April 2019



Name

SAFMARINE MAFADI

Type

Cellular containership - Panamax

IMO-number

9314210

Call sign

KRIJ

Flag

United States of America

Port of registry

Norflok, VA

Previous flags

2006 - 2012 United Kingdom - Call sign: MGDM

2012 - 2015 Republic of Singapore, Singapore City - Call sign: 9VBB3

2015 - 2019 Hong Kong, Hong Kong City

GT

50.686 t

DWT

61.433 t

NT

29.491 t

Number of 20ft containers

In hold: 1.948

On deck: 2.702

Total: 4.650

Container capacity 14t

2.960

Reefer capacity

700

Length

292,08 m overall

Breadth

32,20 m

Draught

Max: 13,52 m

Depth

Service: 21,70 m

Max: 25,0 knots

Speed

24,4 knots

Built

2006

Builder

Hyundai Heavy Industries Co., Ltd.
Ulsan
South Korea

Yard number

1701

Hull material

Higher tensile steel

Hull type

Double hull

Continuous decks

1x Fixed pitch propeller - Aft at 102,0 rpm

Main engine

1x HHI/Wärtsilä 8RT-flex96C - 2 stroke single acting 8 cylinder 960 x 2.500 mm combustion engine 45.760 kW / 62.215 hp at 102,0 rpm

Builder: Hyundai Heavy Industries Co., Ltd. - South Korea

Propellers

1

Boilers

1 x Exhaust gas eEconomiser

1 x Water tube auxiliary boiler

Generators

4x Hyundai/HimSEN 9H25/33 - 4 stroke 9 cylinder 250 x 330 mm diesel engine each 2.160 kW coupled with 4 generators each 2.030 kW - 450 Volt 60 Hz

Bow thruster

1x Controllable pitch thruster 1.335 kW / 1.815 bhp, forward

1x Controllable pitch thruster 810 kW / 1.101 bhp, aft

Cargo gear

Gearless

Crew size

20

Manager

Maersk Line A/S
Esplanaden 50
1098 Copenhagen, K
Denmark

Registered owner

Maersk Shipping Hong Kong Ltd.

Latest data adjustment

16 October 2019
