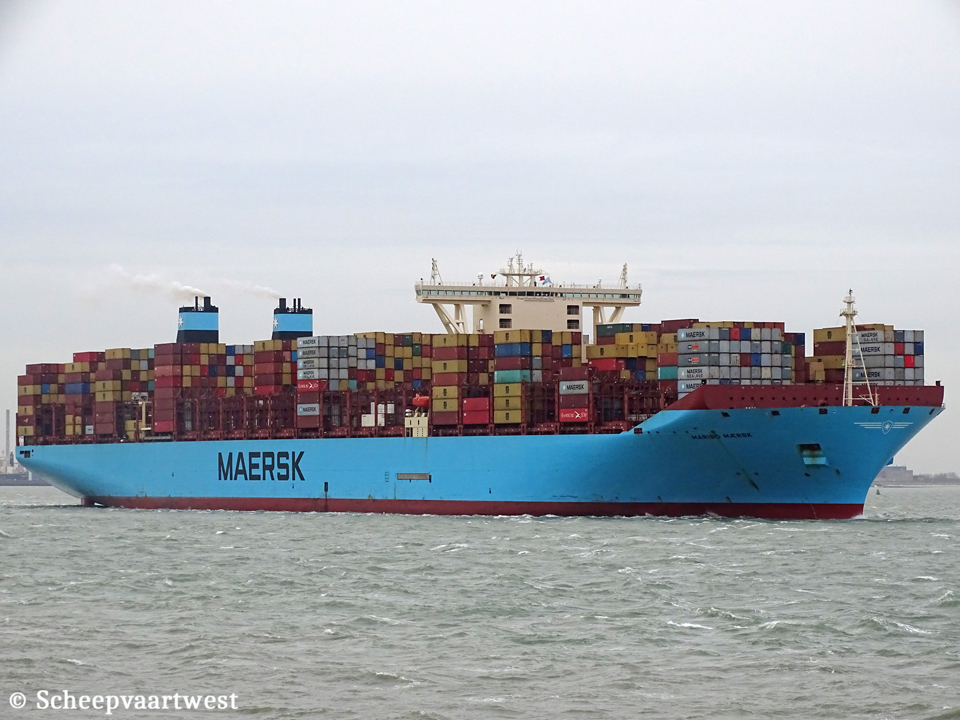

Maribo Maersk IMO 9619969 07

Westerschelde 10 December 2019

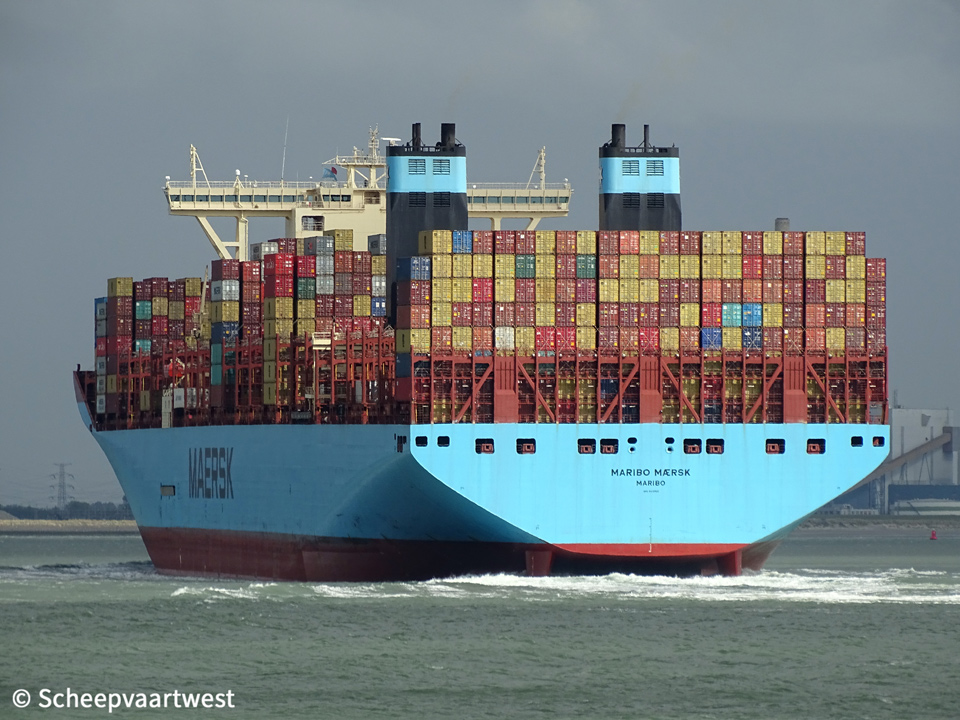

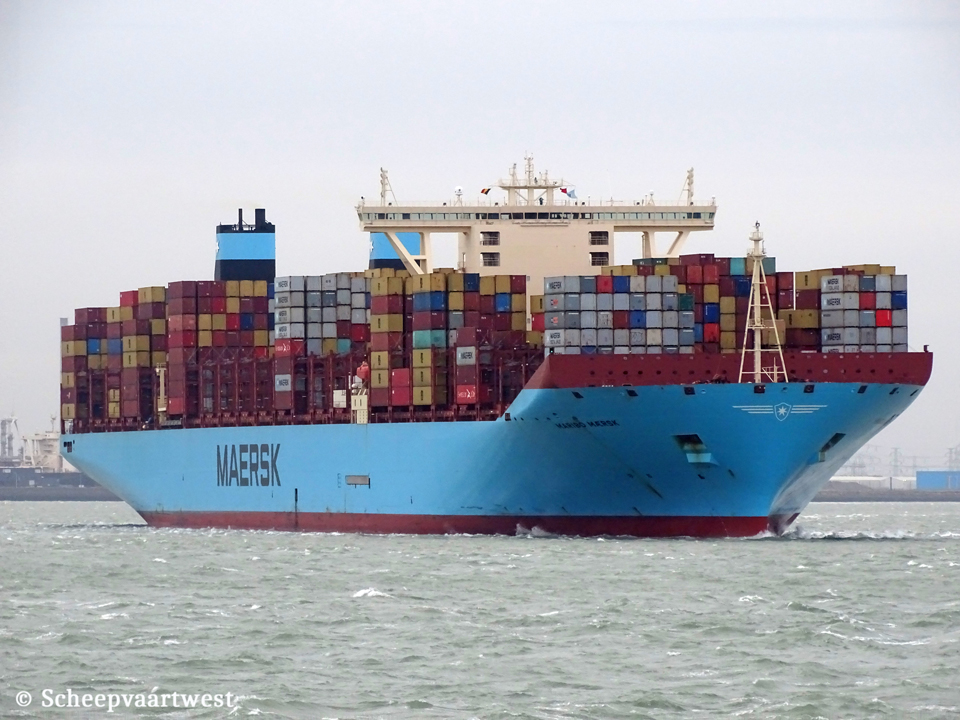

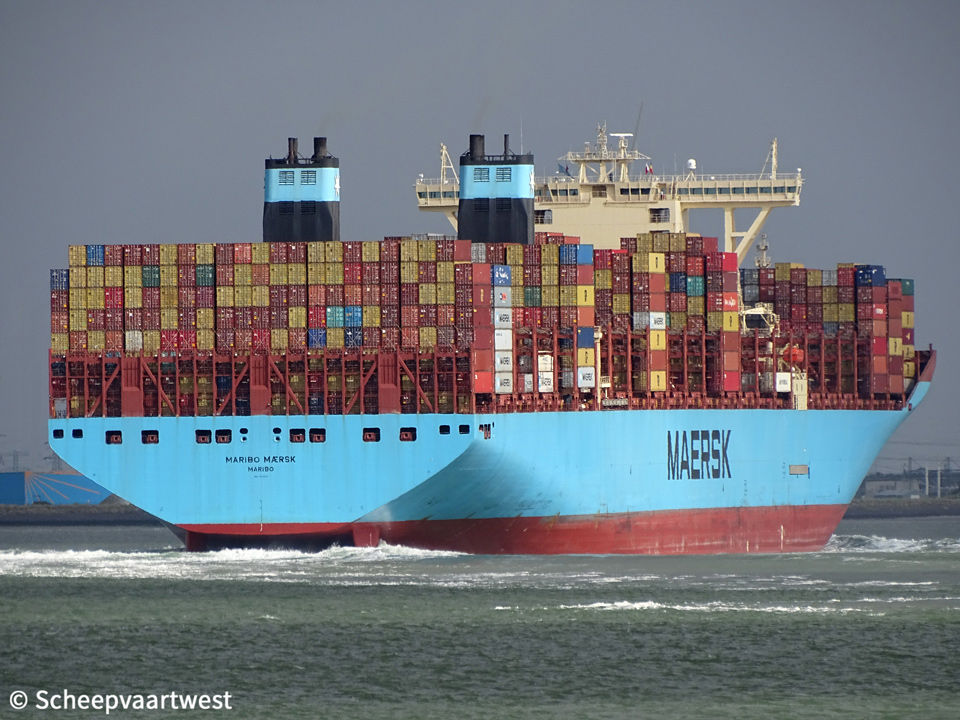

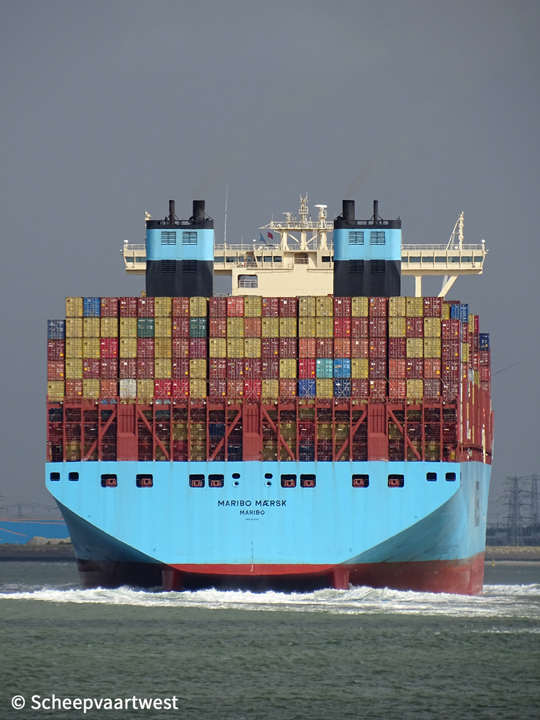

Maribo Maersk IMO 9619969 05   Maribo Maersk 01   Maribo Maersk 04   Maribo Maersk 03
Westerschelde 10/12/19 Westerschelde 05/09/19 Westerschelde 05/09/19 WS 05/09/19









Name

MARIBO MAERSK (MARIBO MÆRSK)

Type

Cellular containership - Carriage of dangerous goods

IMO-number

9619969

Call sign

OWJJ2

Flag

Denmark

Port of registry

Maribo

GT

194.849 t registered

Suez: 199.185,85 t

DWT

Summer: 192.800 t

NT

89.317 t registered

Suez: 174.267,54 t

Number of 20ft containers

18.270

Reefer capacity

1.800

Length

399,20 m overall

376,21 m between perpendiculars

Breadth

59,00 m moulded

Draught

Max: 14,50 m

Freeboard

5.845 mm

Depth

30,30 m moulded

Speed

Max: 23,0 knots

Built

2014

Keel laid

10/09/2013

Launch date

09/11/2013

Delivery date

07/04/2014

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Okpo

South Korea

Yard number

4256

Hull material

High strength steel

Watertight bulkheads

16

Main engine

2x Doosan/MAN-B&W 8S80ME-C Mk9.2 - 8 cylinder 800 x 3.450 mm combustion engines each 29.680 kW at 73,1 rpm

Manufacturer: Doosan Engine Co., Ltd.

Propellers

2x Fixed pitch propeller

Manufacturer: Mecklenburger Metallguss Gmbh

Boilers

2x Exhaust gas economizer - 12,5 bar

2x H.P. exhaust gas economizer - 14,0 bar

2x L.P. exhaust gas economizer - 8,0 bar

1x Auxiliary boiler - 9,0 bar

Manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

2x Siemens AG I AC 222 generators each 3.000 kW

Generators

1x Turbo generator 6.000 kW

1x MAN-B&W 9L32/40 main diesel generatorset 4.300 kW

2x MAN-B&W 6L32/40 main diesel generatorset each 2.800 kW

Manufacturer: HHI Electro Electric System

Number of holds

11

Hold capacity

384.683,6 m³

Number of tanks

Ballast: 38

Lubricating oil: 15

Fuel oil: 13

Fresh water: 8

Waste water: 6

Diesel oil: 4

Sludge: 4

Chain: 2

Tank capacities 100%

Diesel oil: 1.100,8 m³

Freshwater: 1.048,3 m³

Fuel oil: 14.018,6 m³

Lube oil: 588,6 m³

Tank ballast : 63.173,2 m³

Lifting equipment

2x Engine room crane - SWL 10,0 t each

1x Monorail crane - SWL 12,5 t

1x Provision crane - 2,0 t portside

1x Provision crane - 5,0 t starboard

Manufacturer: Dongnam Marine Crane Co., Ltd.

Manager

Maersk Line A/S

Esplanaden 50

DK-1263 Copenhagen K

Denmark

Operator

Maersk Line A/S

Registered owner

Maersk Line A/S

Esplanaden 50

DK-1263 Copenhagen K

Denmark

Latest data adjustment

27 May 2022
