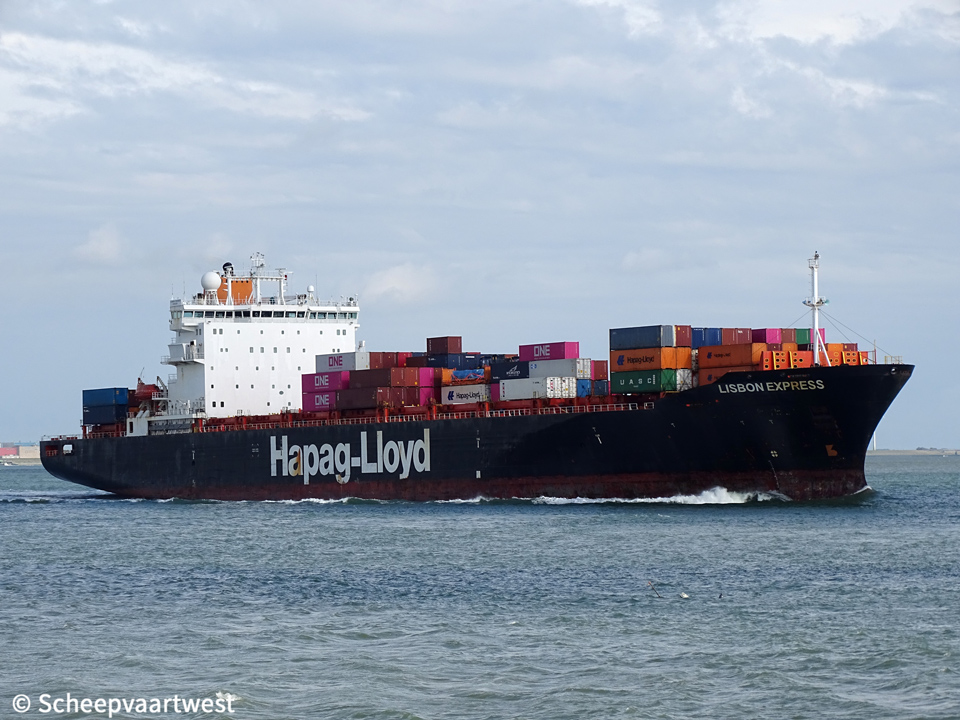

Libon Express 01

Westerschelde 04 September 2019

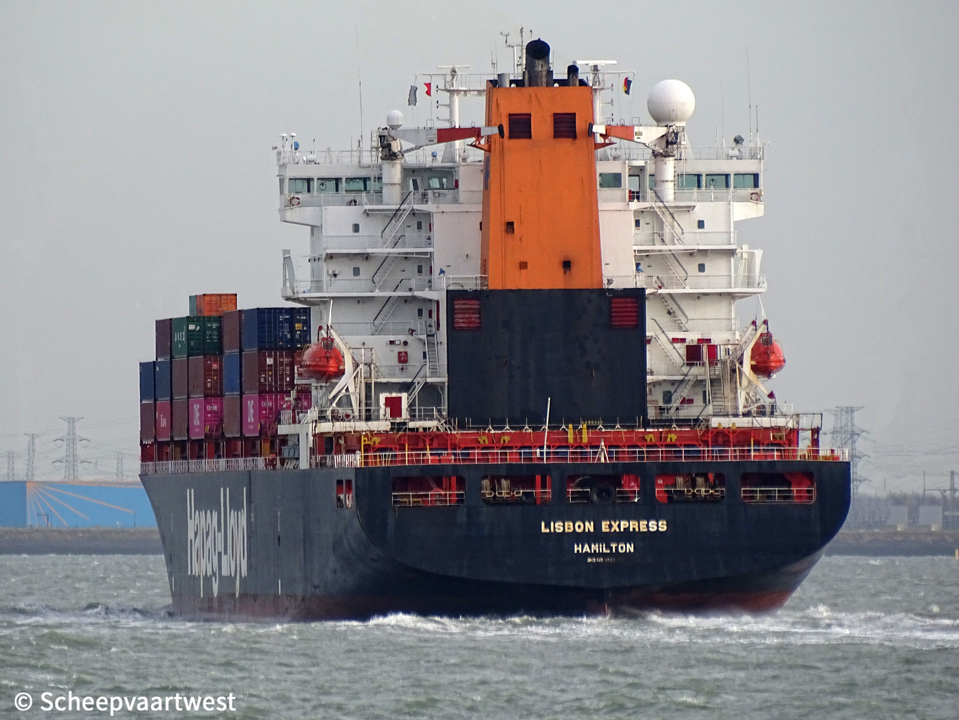

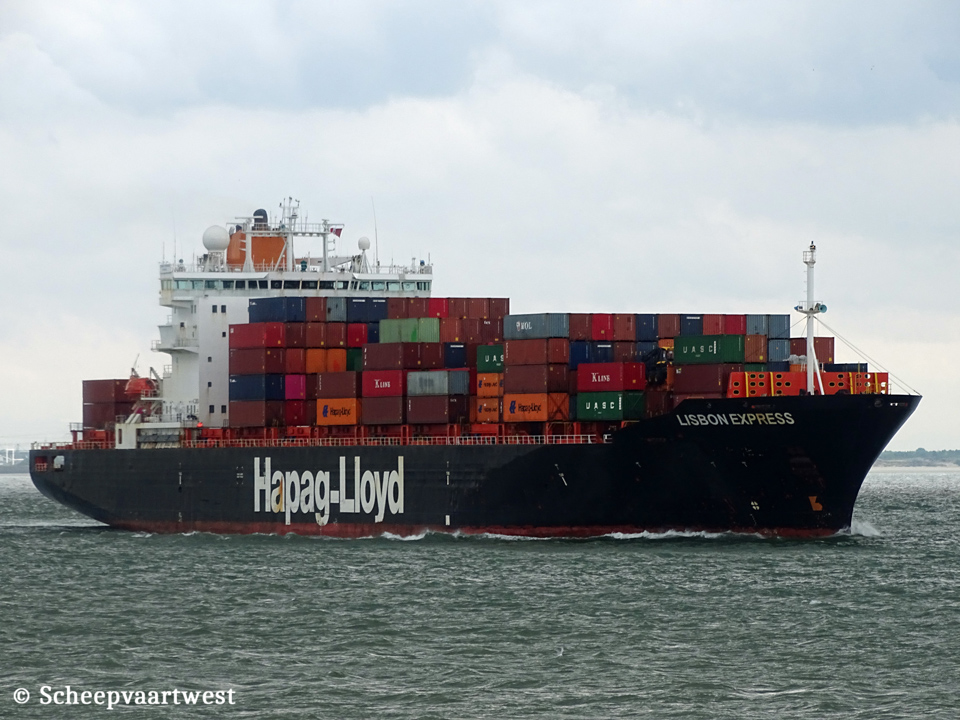

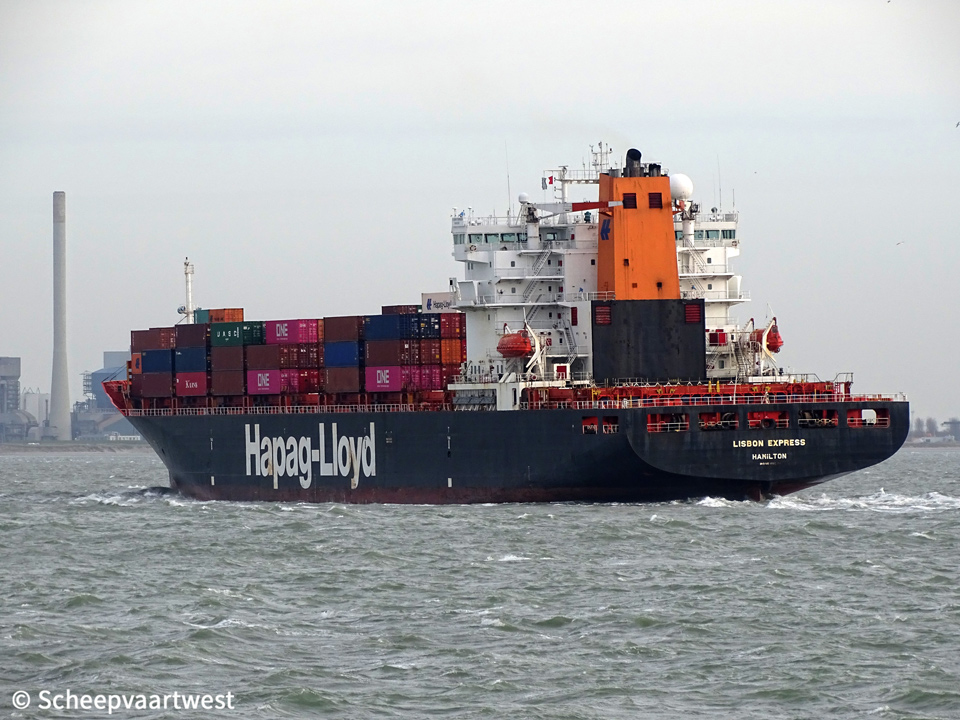

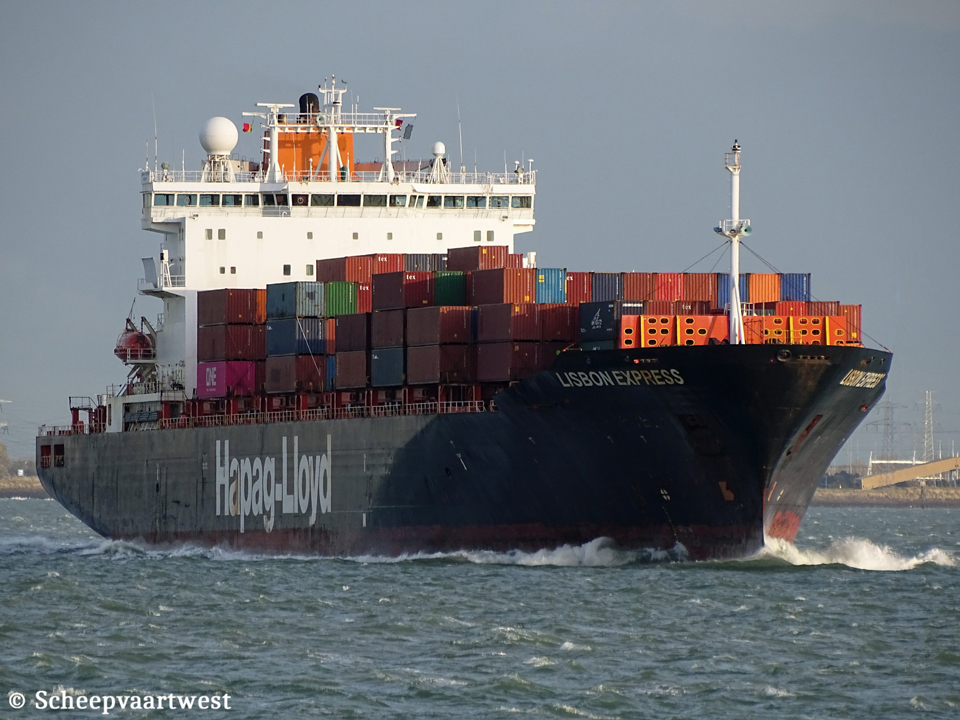

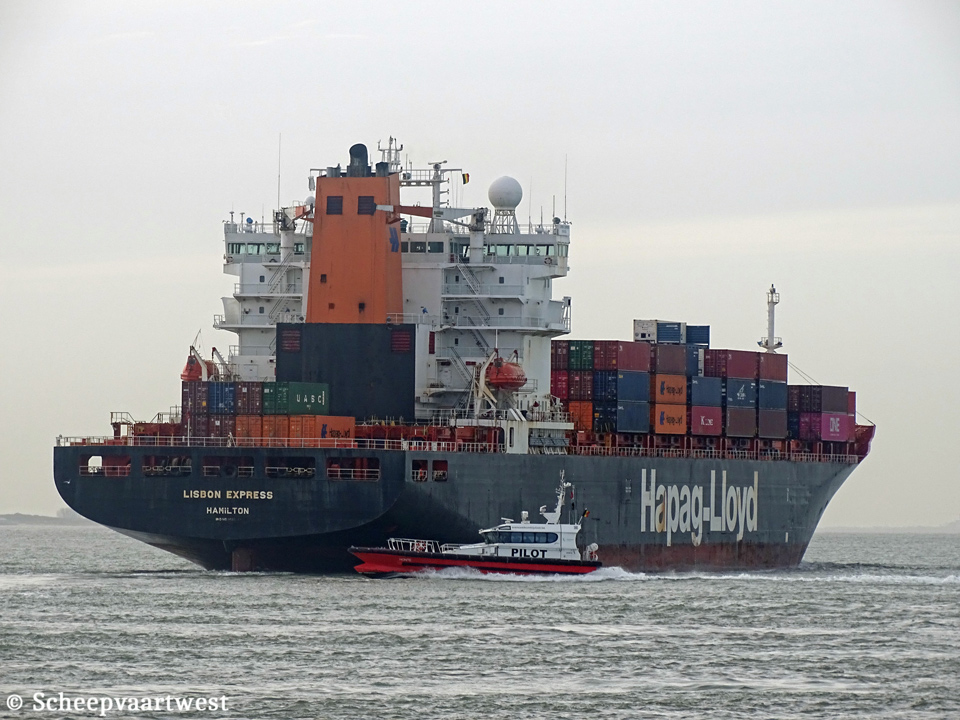

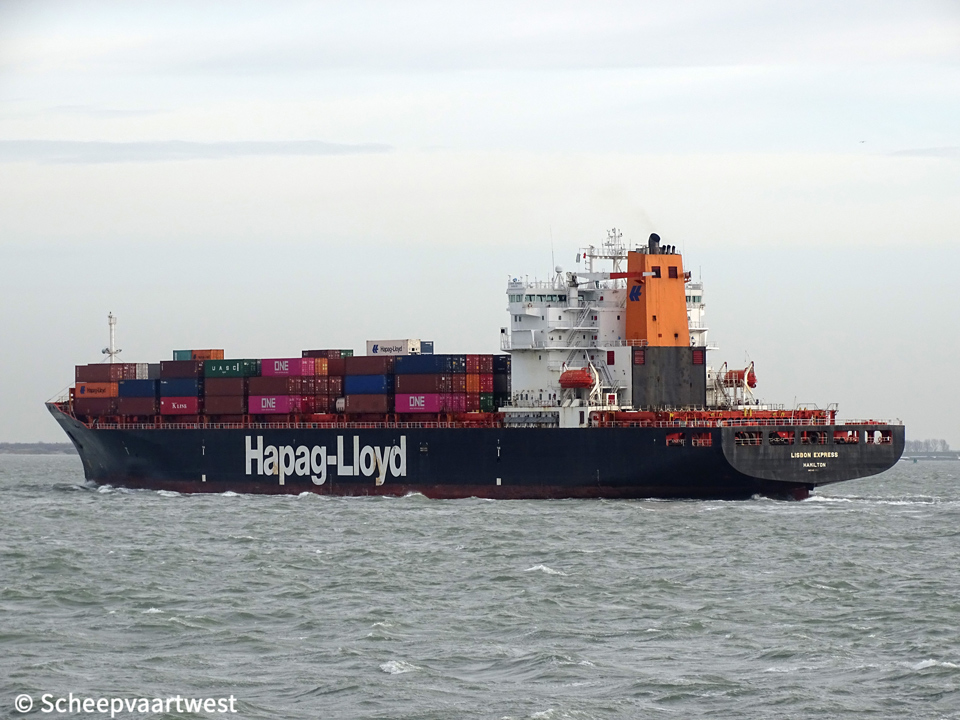

Lisbon Express 02   Lisbon Express 03   Lisbon Express 04   Lisbon Express IMO 9108128 05   Lisbon Express IMO 9108128 06   Lisbon Express IMO 9108128 07
Westerschelde 10/12/19 Westerschelde 10/12/19 Westerschelde 10/12/19 Westerschelde 11/12/19   Westerschelde 08/05/19   Westerschelde 12/11/19

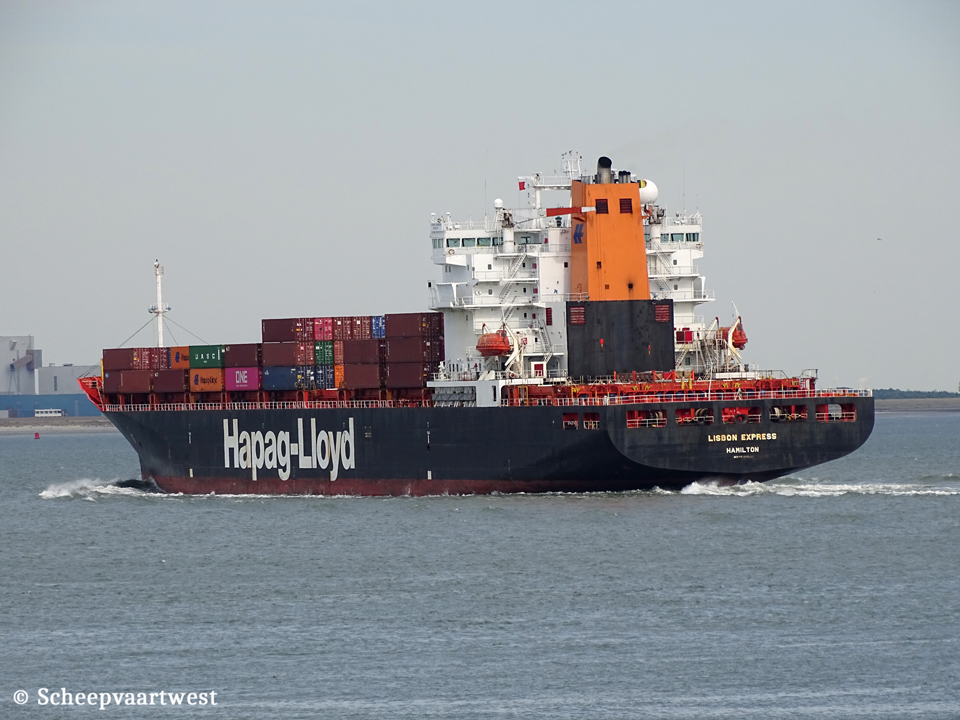

Lisbon Express IMO 9108128 08
Westerschelde 01/06/20




Name

LISBON EXPRESS

Previous names

1995 - 06/2003 Canmar Fortune

06/2003 - 07/2005 Cast Prospect

07/2005 - 02/2006 CP Prospect

Type

Cellular containership

IMO-number

9108128

Call sign

ZCBD3

Flag

Bermuda

Port of registry

Hamilton

GT

33.735 t

DWT

Summer: 34.330 t

NT

14.270 t

Number of 20ft containers

In hold: 1.134

On deck: 1.134

Total: 2.268

Container capacity 14t

1.680

Reefer capacity

314

Length

216,13 m overall

204,00 m between perpendiculars

Breadth

32,26 m extreme

Draught

Max: 10,78 m

Depth

16,44 m

Speed

Max: 22,0 knots

Service: 19,0 knots

Built

1995

Keel laid

13/06/1995

Launch date

30/09/1995

Date of completion

01/12/1995

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd.

Okpo

South Korea

Yard number

4037

Hull material

Steel

Hull type

Single hull

Bulkheads

Transverse: 8

Longitudinal: 2

Continuous decks

1

Main engine

1x Wärtsilä 7RTA72U - 2 stroke single acting 7 cylinder 720 x 2.500 mm combustion engine 21.253 kW / 28.896 hp at 97,0 rpm

Manufacturer: Hyundai Heavy Industries Co Ltd - South Korea

Propellers

1x Fixed pitch propeller - aft at 97,0 rpm

Boilers

2x Auxiliary boiler, oil/gas fired

1x Auxiliary boiler, exhaust gas heated

Manufacturer: Aalborg Industries A/S

Generators

1x MAN-B&W 6L28/32H - 4 stroke 6 cylinder 280 x 320 mm diesel engine 1.200 kW connected with generator 1.100 kW - 450 Volt 60 Hz

2x MAN-B&W 9L28/32 - 4 stroke 9 cylinder diesel engine 1.800 kW connected with generators each 1.750 kW - 450 Volt 60 Hz

Number of holds

6

Tank capacities

Ballast: 14.172,4 m³

Cargo gear

Gearless

Crew size

32

Commerical manager

Hapag-Lloyd AG

Hapag-Lloyd Haus

Ballindamm 25

20095 Hamburg

Germany

ISM manager

Anglo-Eastern (Germany) GmbH

Raboisen 28

20095 Hamburg

Germany

Registered owner

Hapag-Lloyd Aktiengesellschaft

Hapag-Lloyd Haus

Ballindamm 25

20095 Hamburg

Germany

Previous names & owners

1995 Canmar Fortune - Canada Maritime Ltd.

2003 Cast Prospect - Canmar Fortune Ltd.

2005 CP Prospect - CP Number 1 Ltd.

Latest data adjustment

21 December 2021
