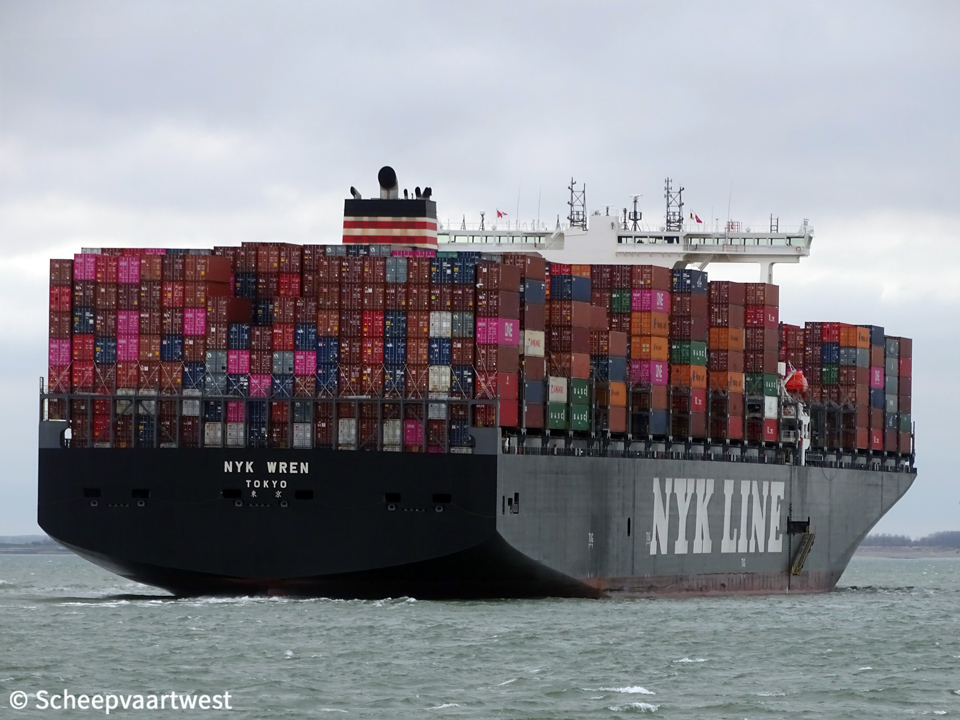

NYK Wren 01

Westerschelde 07 November 2018



NYK Wren 02
Westerschelde 07/11/18













Name

NYK WREN

Type

Cellular containership

IMO-number

9784776

Call sign

7KBS

Flag

Japan

Port of registry

Tokyo

GT

145.251 t registered

DWT

139.335 t

NT

84.742 t registered

Number of 20ft containers

14.026

Reefer capacity

1.120

Length

364,15 m overall

Breadth

50,60 m

Draught

Summer: 15,79 m

Moulded L x B x D

349,20 x 50,60 x 23,04 m

Registered L x B x D

353,91 x 50,60 x 23,04 m

Freeboard

Summer: 15.786 mm

Depth

23,04 m moulded

Speed

Max: 21,1 knots

Built

2018

Keel laid

09/11/2015

Launch date

10/11/2017

Date of completion

23/03/2018

Builder

JMU- Japan Marine United Corporation Kure Shipyard
Kure
Japan

Yard number

5111

Hull material

Steel

Main engine

1x Wärtsilä-Diesel United W9X82 - 2 stroke single acting 9 cylinder 820 x 3.375 mm combustion engine 28.310 / 37.964 bhp at 65,3 rpm

Manufacturer: Diesel United, Ltd. Aioi Machinery Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 1.020 mm

Propellers

1

Boilers

1x Auxiliary vertical boiler - 7,0 bar

Evaporation: 5,70 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Main diesel generatorsets each 3.200 kW

Bow thruster

2x 1.800 kW

Tank capacities

Fuel oil: 10.515,8 m³

Fresh water: 599,3 m³

Manager

Nippon Yusen Kaisha - NYK-Line

Operator

Anchor Ship Investment Co. Ltd.

Registered owner

Vanilla Ship Holding LLC

Latest data adjustment

16 August 2019
