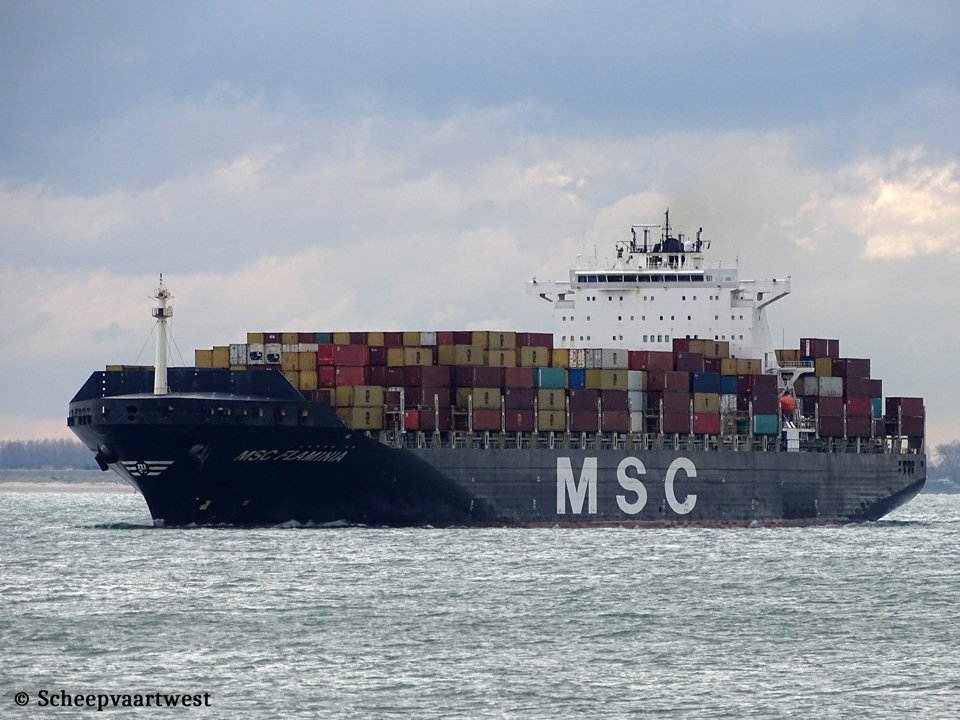

MSC Flaminia IMO 9225615 02

Westerschelde 19 November 2018

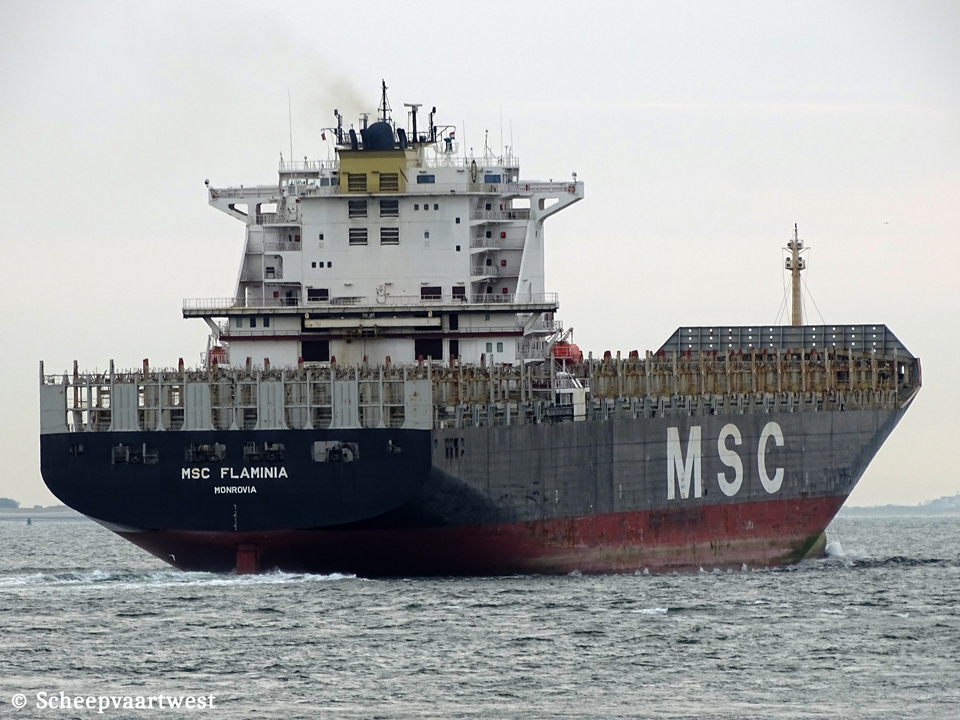

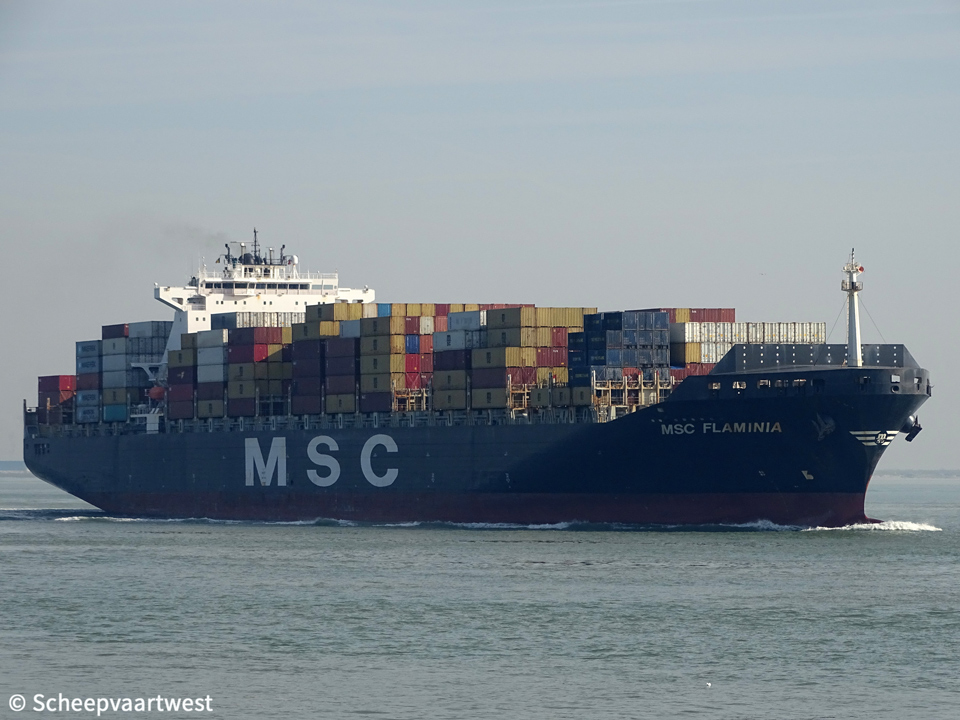

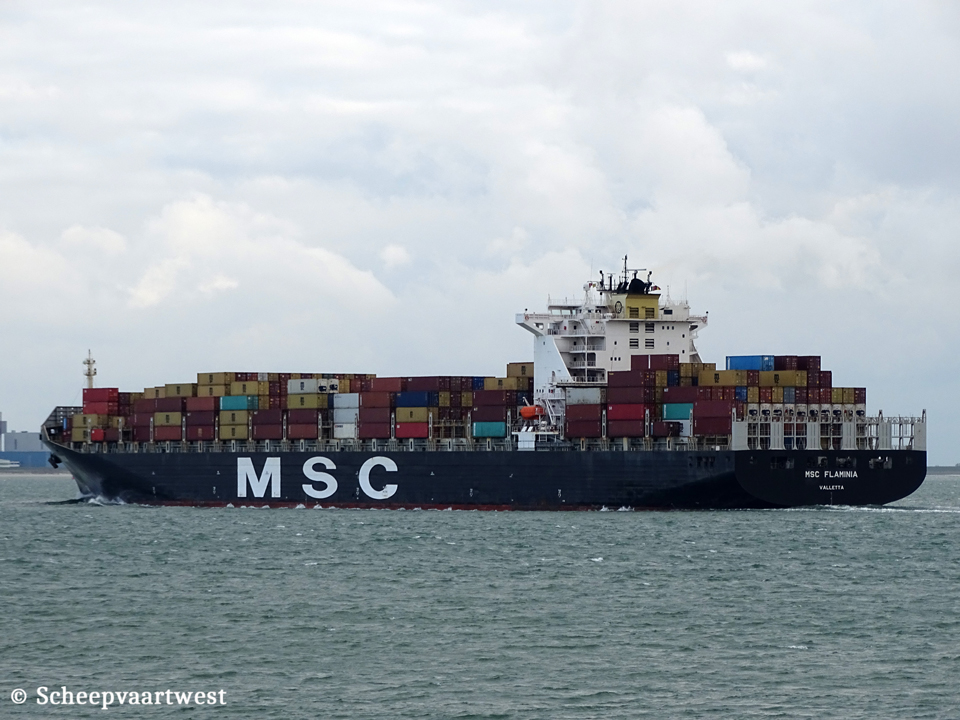

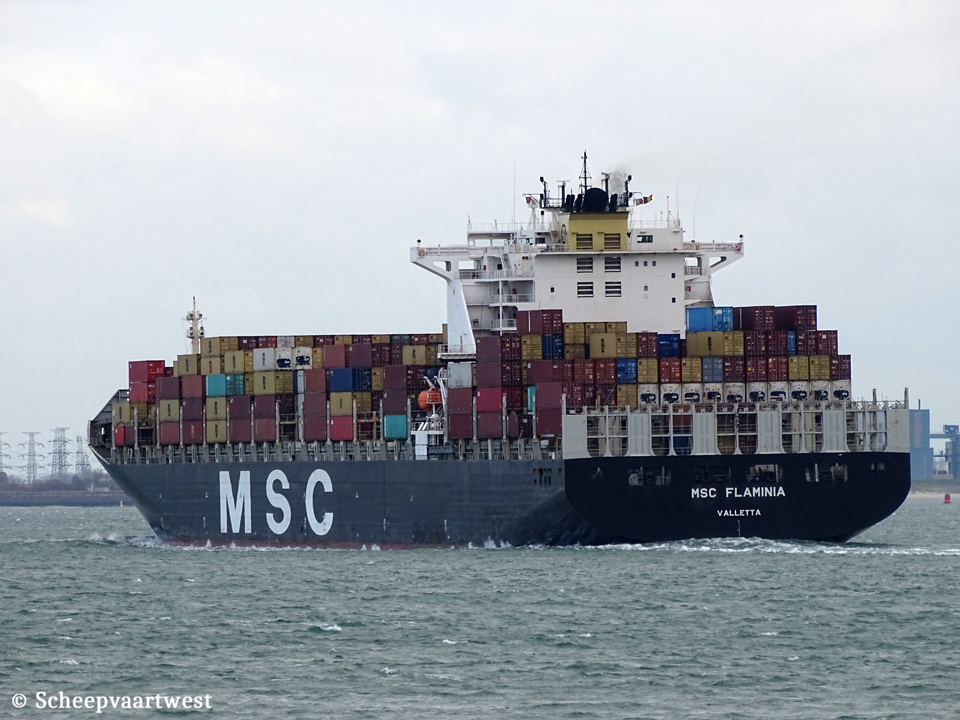

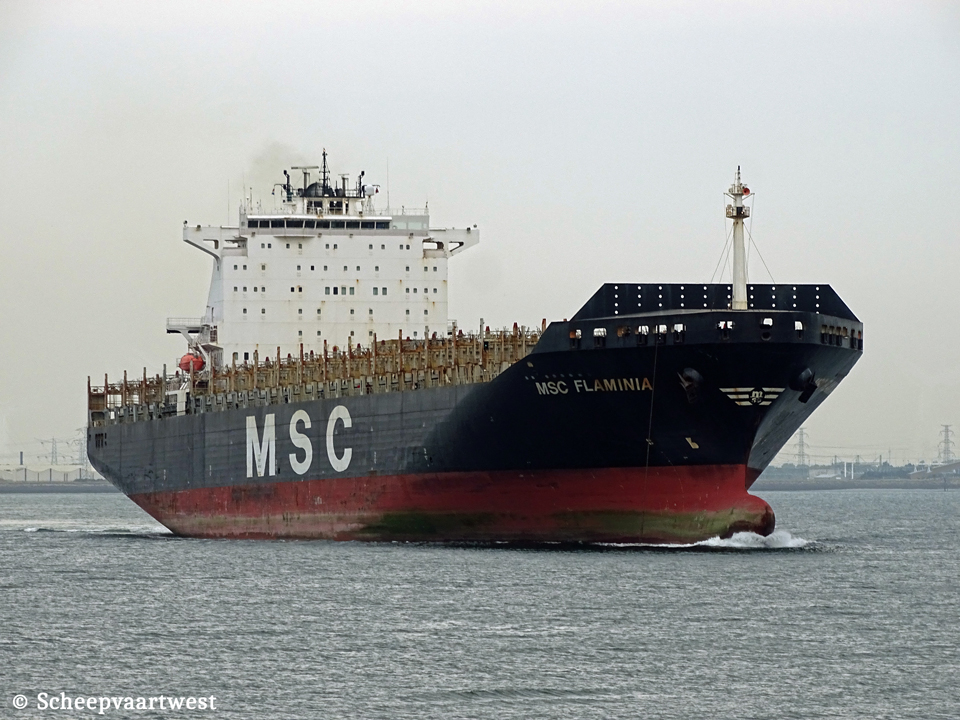

MSC Flaminia IMO 9225615 03   MSC Flaminia IMO 9225615 04   MSC Flaminia 01   MSC Flaminia IMO 9225615 05   MSC Flaminia IMO 9225615 06
Westerschelde 19/11/18   Westerschelde 19/11/18   Westerschelde 16/02/19   Westerschelde 26/07/19   Westerschelde 26/07/19


Name

MSC FLAMINIA

Type

Cellular containership

IMO-number

9225615

Call sign

D5TZ4

Flag

Liberia

Port of registry

Monrovia

Previous flags

2001 - 2013 Germany

2013 - 2019 Malta, Valletta - Call sign: 9HA3672

GT

75.590 t

DWT

Summer: 85.823 t

NT

42.233 t

Number of 20ft containers

6.750

Container capacity 14t

5.150

Reefer capacity

400

Length

299,99 m overall

286,06 m between perpendiculars

Breadth

40,00 m extreme

Draught

Max: 14,50 m

Poop

22,96 m

Freeboard

5.415 mm

Depth

24,20 m moulded

Speed

Max: 25,6 knots

Built

2001

Keel laid

05/03/2001

Launch date

26/05/2001

Date of completion

20/08/2001

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. Okpo Shipyard

Goeje

South Korea

Yard number

4073

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

2

Main engine

1x MAN-B&W 10K98MC-C - 2 stroke 10 cylinder 980 x 2.400 mm combustion engine 57.100 kW at 104,0 rpm

Build: 2001

Manufacturer: Hyundai Engine & Machinery Co., Ltd

Propellers

1x Solid propeller (keyless), aft at 104,0 rpm

Boilers

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 842,7 m²

1x Steam boiler, oil fired - 9,8 bar

Heating surface: 137,8 m²

Build: 2011

Manufacturer KangRim Industries Co., Ltd. (3rd Factory)

Electric installations

1x Plant 440/220 V - 2.625 kVA

1x Plant 440/220 V - 2.625 kVA

1x Plant 440/220 V - 2.625 kVA

1x Plant 440/220 V - 2.625 kVA

1x Plant 440 V with 688 kVA

Generators

4x Wärtisilä6 R32LND main diesel generatorsets each 2.100 kW / 2.625 kVA

Emergency generator

1x 3412 DIT diesel generatorset 550 kW / 688 kVA

Compressed air receivers

2x Receivers each 22.000 litres - 30,0 bar

1x Receiver 200 litres - 30,0 bar

1x Receiver 125 litres - 30,0 bar

Bow thruster

1.500 kW

Tank capacities

Ballast: 20.179 m³

Fuel: 10.854 m³

Anchor equipment

Length: 751,50 m

Diameter: 100 mm

Manager

NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG

Harburger Str. 47

21614 Buxtehude

Germany

Operator

MSC - Mediterranean Shipping Company

Registered owner

Conti 11. Container Schiffahrts-GmbH & Co. KG MS "MSC FLAMINIA"

Renamed

2021 CMA CGM San Francisco

Liberia, Monrovia - Call sign: D5TZ4

Owner: Conti 11. Container Schiffahrts-GmbH & Co. KG MS "MSC FLAMINIA"

Manager: NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG

Latest data adjustment

20 October 2022
