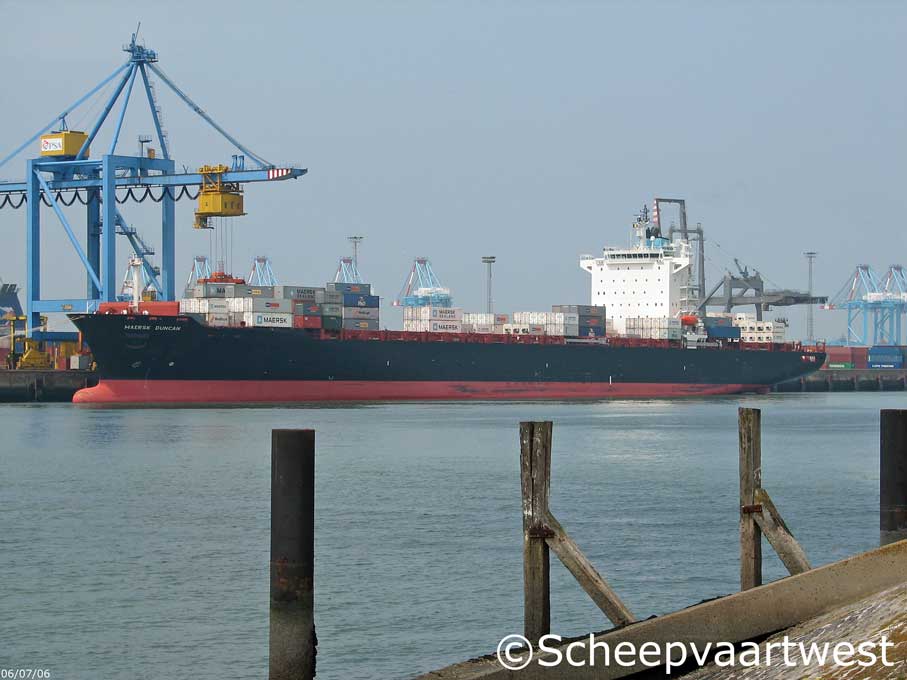

| Zeebrugge 06 July 2006 |
|
Name |
MAERSK DUNCAN |
|
Previous names |
2005 launch as: JPO Pisces |
|
Type |
Cellular Containership |
|
IMO-number |
9297852 |
|
Call sign |
A8GU8 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
41.359 t |
|
DWT |
52.828 t |
|
NT |
23.584 t |
|
Number of 20ft containers |
4.132 |
|
Container capacity at 14t |
2.900 |
|
Reefer capacity |
720 |
|
Length |
264,05 m overall 253,03 m registered |
|
Breadth |
32,25 m registered |
|
Draught |
Summer: 12,50 m |
|
Forecastle |
126,516 m |
|
Bridge |
116,916 m |
|
Freeboard |
4.112 mm |
|
Depth |
19,30 m 16,60 m tonnage |
|
Speed |
24,7 knots |
|
Built |
2005 |
|
Keel laid |
23.05.2005 |
|
Launch date |
26.08.2005 |
|
Date of completion |
14.10.2005 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. |
|
Yard number |
S235 |
|
Hull material |
Shipbuilding steel (standard) |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
9 |
|
Continuous decks |
2 |
|
Main engine |
1x MAN-B&W 9K90MC-C - 2 stroke single acting 9 cylinder 900 x 2.300 mm diesel engine - 41.130 kW Year of manufacture: 2005 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propeller |
1x Solid propeller (keyless) - aft |
|
Boilers |
1x Steam boiler, oil fired - 7,9 bar Heating surface: 36,2 m² 1x Exhaust gas heated - 7,9 bar Heating surface: 437,0 m² Year of manufacture: 2005 Manufacturer: KangRim Ind. Co., Ltd. (3rd Factory) |
|
Electric installations |
1x 450/230 V - 11.400 kVA 1x 450 V - 250 kVA 1x 24 V - 56 Ah 1x 24 V - 200 Ah 1x 24 V - 300 Ah |
|
Generators |
2x Main diesel generatorsets each 2.975 kVA / 2.380 kW 2x Main diesel generatorsets each 2.725 kVA / 2.180 kW |
|
Emergency generator |
1x Diesel generatorsets 250 kVA |
|
Batteries |
1x Battery for emergency lighting 300 Ah 1x Battery for UPS radio 200 Ah 2x Batteries for start emergency engine each 56 Ah |
|
Compressed air receivers |
2x Receivers each 11.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 2000 litres - 7,0 bar 1x Receiver 200 litres - 7,0 bar |
|
Bow thruster |
1x Transverse thruster - 1.500 kW, forward |
|
Anchor equipment |
3x Anchors weight each 11.700 kg Chain length: 687,50 m |
|
Crew size |
28 |
|
Crew |
25 |
|
Manager |
Schiffahrtsgesellschaft Oltmann mbH & Co. KG |
|
Operator |
Maersk |
|
Owner |
MV ''JPO SCORPIUS'' Shipping Co., Ltd. |
