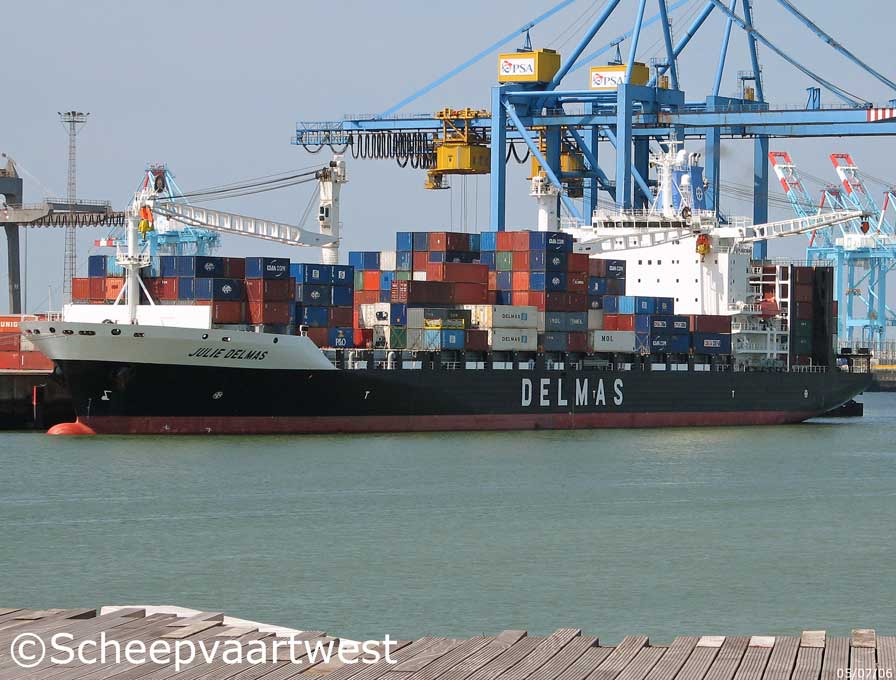

Julie Delmas
Zeebrugge 05 July 2006



Name

JULIE DELMAS

Type

Cellular containership

IMO-number

9225770

Call sign

C4ZV2

Previous call sign

C6RY5

Flag

Cyprus

Previous flag

12.11.2007 Bahamas

Port of registry

Limassol

Previous port of registry

Nassau

GT

26.047 t

Suez: 27.017 t

DWT

Summer: 30.453 t

NT

10.209 t

Suez: 22.315 t

Number opf 20ft containers

2.207

Container capacity 14 t

1.725

Reefer capacity

350 reefer plugs

Length

195,60 m overall
187,13 m between perpendiculars

Breadth

30,20 m overall

Draught

Summer: 11,01 m

Freeboard

Summer: 5.625 mm

Depth

16,60 m

Speed

21,2 knots

Built

2002

Date of order

01.01.2000

Date of completion

12.11.2002

Builder

CSBC - China Shipbuilding Corporation Kaohsiung Shipyard
Keelung
Tawain

Yard number

776

Hull material

Steel

Hull type

Single hull

Watertight compartments

8

Continuous decks

1
Machinery aft

Main engine

1x HHI-B&W 8S70MC-C - 2 stroke 8 cylinder 700 x 2.800 mm internal combustion engine - 24.824 kW / 33.728 hp at 91 rpm

Built: 2001

Builder: Hyundai Heavy Industries Co., Ltd. - Engine & Mach Div., Ulsan - South Korea

Number of screws

1x Screw propeller solid at 91 rpm

Boilers

1x CHO Osaka 47,00 m² - 7,0 bar
1x CHR Osaka 625,00 m² - 12,0 bar

Electrical installation

Power voltage: 440 V

Lighting voltage: 220 V

Frequency: 60 Hz

Generators

4x MAN B&W 6L28/32H main diesel generatorsets each 1.500 kVA - 1.200 kW - 1.732 hp

Emergency generator

1x Diesel generatorset 150 kVA - 120 kW - 179 hp

Bow thruster

1.100 kW

Cargo holds

5

Hatchways

9

1x 12,60 x 15,80 m

1x 12,60 x 25,60 m

7x 12,60 x 25,10 m

Fuel oil capacity

2.496 m³

Cargo Gear

3x Cranes - SWL 45 t each

Manager

CMA CGM
Marseille
France

Operator

Delmas
1 Quai Colbert BP 7007X
76080 Le Havre Cedex
France

Owner

Global Ship Lease 6 limited
Nicosia
Cyprus
