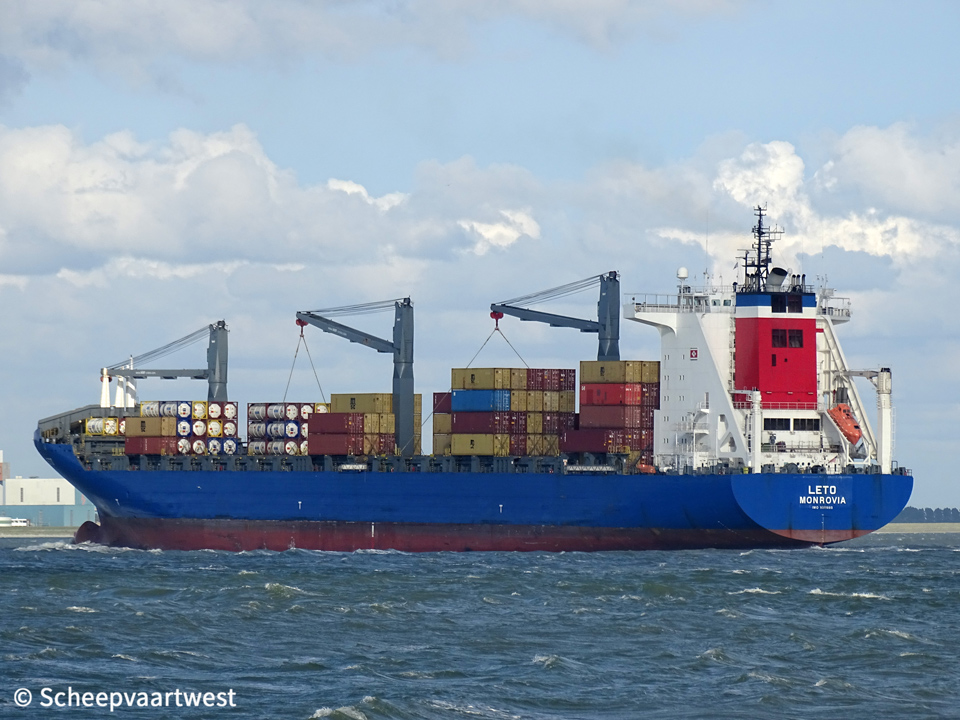

Leto 01

Westerschelde 11 July 2016



Name

LETO

Previous names

2006 - 01/2012 CCNI Antofagasta

01/2012 - 02/2013 Leto

02/2013 - 2016 CCNI Antofagasta

Type

Cellular containership

IMO-number

9311880

Call sign

A8JG8

Flag

Liberia

Port of registry

Monrovia

Previous flags

Antigua & Barbuda, St. John’s

GT

35.881 t

DWT

41.802 t

NT

14.444 t

Number of 20ft containers

In hold: 1.408

On deck: 1.683

Total: 3.091

Number of 40ft containers

1.517

Container capacity 14t

2.481

Reefer capacity

500

Length

220,30 m overall

210,35 m between perpendiculars

Breadth

32,26 m extreme

Draught

Max: 12,17 m

Depth

18,70 m

Speed

Service: 22,3 knots

Max: 23,1 knots

Built

2006

Keel laid

10/01/2006

Launch date

02/05/2006

Date of completion

30/08/2006

Builder

Stocznia Szczecinska Nowa Sp. z o.o.
Szczecin
Poland

Yard number

B178/I/17

Hull material

Steel

Hull type

Single hull, double bottom

Bulkheads

8

Number of decks

2

Main engine

1x H. Cegielski - Poznan S.A. MAN-B&W 7K80MC - C - 7 cylinder combustion engine 26.270 kW at 104,0 rpm

Propellers

1x Fixed pitch mono-block propeller - 5 blades

Boilers

1x Auxiliary boiler, composite Mission OC

Builder: Alfa Laval Aalborg A/S

Generators

2x MAN 5L28/32H - 5 cylinder diesel engine each 1.050 kW at 720 rpm coupled with 2 generators 1.250 kVA /450 Volt 60 Hz

2x MAN 6L28/32H - 6 cylinder diesel engine each 1.050 kW at 720 rpm coupled with 2 generators 1.499 kVA /450 Volt 60 Hz

Builder: H.Cegielski Poznań - Poland

Emergency generator

1x MAN D2866 TE diesel generatorset 170 kW

Bow thruster

1.200 kW

Number of holds

6

Hold capacity

Bale; 56.930 m³

Grain: 62.500 m³

Number of hatches

11

1: 12,60 x 23,00 m

2-11: 12,60 x 28,20 m each

Hatch type

MacGregor design - pontoon type

Tank capacities

Ballast: 15.348 m³
Fuel oil: 4.289 m³

Anchor equipment

Length: 687,50 m

Diameter: 81 mm

Cargo gear

3x Deck cranes - SWL 45,0 t each

Crew size

24

Manager

Peter Döhle Schiffahrts-KG
Elbchaussee 370
22609 Hamburg
Germany

Registered owner

MS "LETO" Schiffahrts GmbH & Co. KG

Latest data adjustment

03 March 2019
