Westerschelde 25 July 2019 |
 |
 |
|
| Westerschelde 30/03/20 | Westerschelde 30/03/20 |
|
Name |

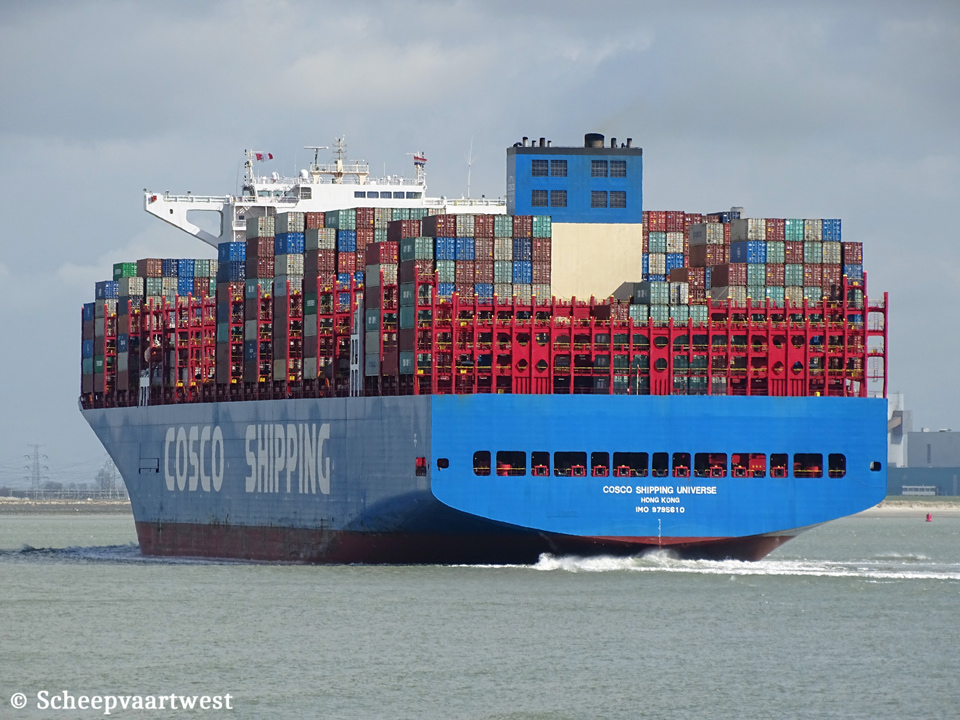

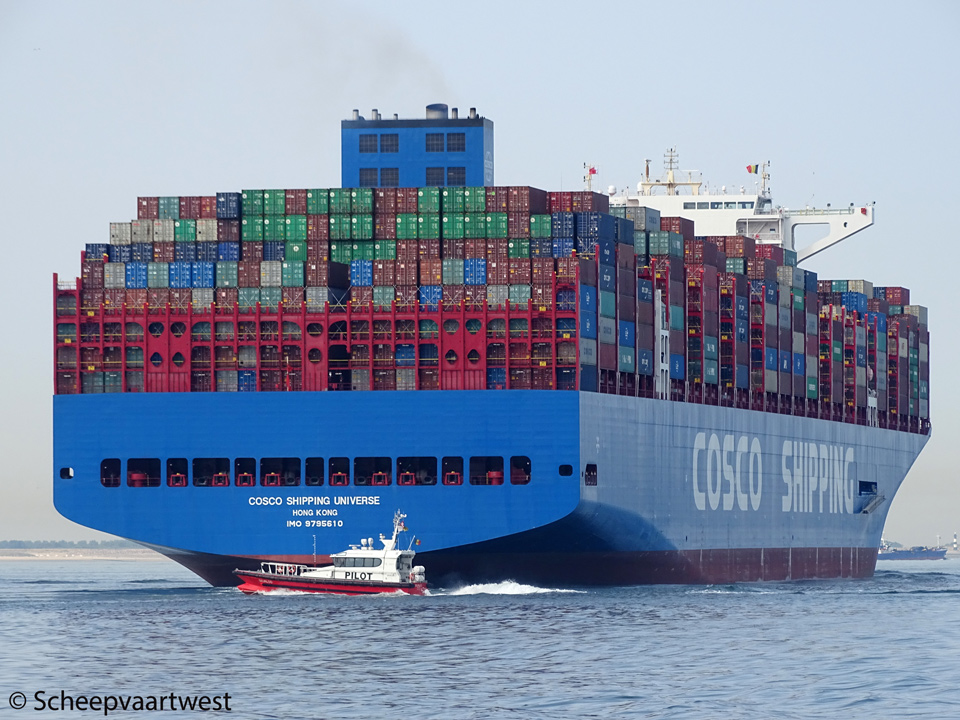

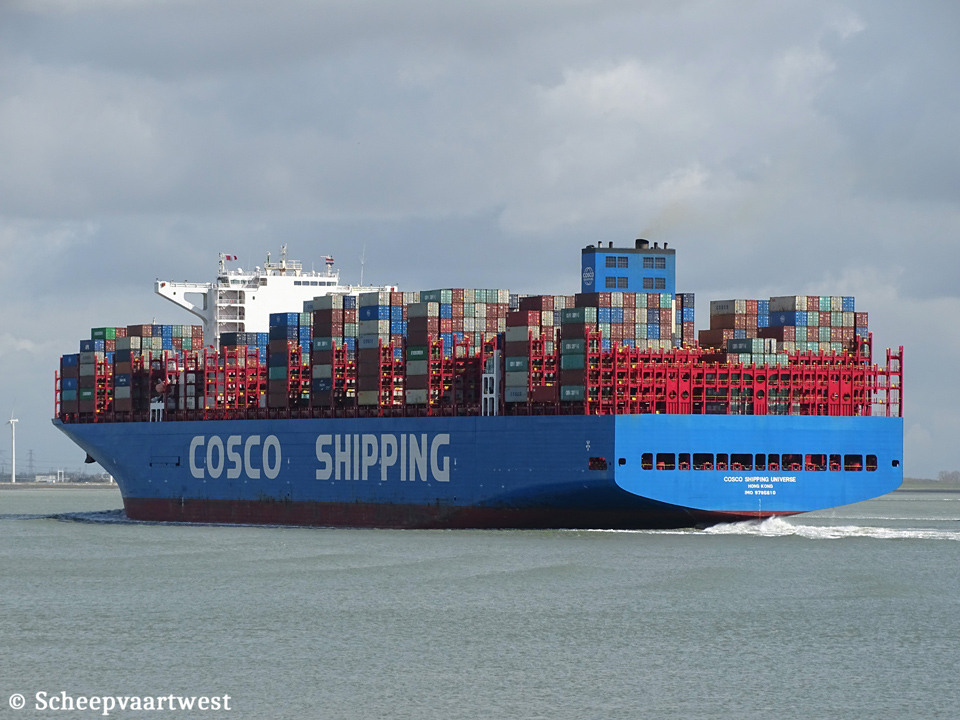

COSCO SHIPPING UNIVERSE |
|
Type |
Cellular containership |
|
IMO-number |
9795610 |
|
Call sign |
VRRP4 |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
GT |
215.553 t |
|
DWT |
198.485,2 t |
|
NT |
130.371 t |
|
Number of 20ft containers |
21.237 |
|
Container capacity 14t |
13.503 |
|
Reefer capacity |
1.000 |
|
Length |
399,90 m overall 386,23 m between perpendiculars |
|
Breadth |
58,60 m moulded |
|
Draught |
Max: 18,00 m |
|
Deckhouse |
10,40 m |
|
Freeboard |
7.309 mm |
|
Depth |
33,50 m moulded |
|
Speed |
Max: 23,6 knots |
|
Built |
2018 |
|
Date of completion |
12/06/2018 |
|
Builder |
Shanghai Waigaoqiao Shipbuilding Co., Ltd. Shanghai China |
|
Yard number |
H1416 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
12 |
|
Number of decks |
2x Upper deck & 2nd deck |
|
Main engine |
1x MAN-B&W 12S90ME-C10.5 - 2 stroke single acting 12 cylinder 900 x 3.260 mm combustion engine 57.900 kW / 78.721 hp at 80,0 rpm Built: 08/09/2017 Builder: CSSC-MES Diesel Co.,Ltd. |
|
Propellers |
1x Fixed pitch propeller - Aft at 80,0 rpm |
|
Boilers |
1x Exhaust gas eEconomiser 1x Auxiliary boiler 1x Water tube auxiliary boiler |
|
Generators |
4x Wärtsilä 9L20DF - 4 stroke 9 cylinder 200 x 280 main diesel engines each 4.320 kW connected with 4 generators 4.150 kW - 6.600 Volt 60 Hz |
|
Bow thruster |
x2 Tunnel thruster forward |
|
Number of holds |
11 |
|
Number of hatches |
11 1x 14,55 × 48,29 m (A) / 14,95 × 38,21 m (F) 7x 14,55 × 53,60 m (A) / 14,55 × 53,60 m (F) 1x 14,40 × 53,60 m (A) / 14,55 × 53,60 m (F) 1x 14,65 × 53,60 m (A) / 14,95 × 53,60 m (F) 1x 12,60 × 53,60 m (A) / 14,55 × 53,60 m (F) |
|
Tank capacities |
Ballast: 54.030 m³ |
|
Lifting equipment |
1x Provision crane - SWL 12,5 t 2x Provision crane - SWL 5,0 t each 2x Engine room overhead crane, - SWL 12,5 t each |
|
Gear |
Gearless |
|
Crew size |
26 |
|
Manager |
COSCO Shipping Lines Co Ltd. COSCO Plaza, 378, Dongdaming Lu, Hongkou Qu Shanghai, 200080 China |
|
Operator |
Shanghai Ocean Shipping Co.,Ltd. |
|
Registered owner |
COSCO Shipping Universe Limited Hong Kong China |
|
Latest data adjustment |
08 April 2021 |
